62 30 005 Removing and installing/replacing trim for Head- Up Display
Special tools required:
- 00 9 325
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

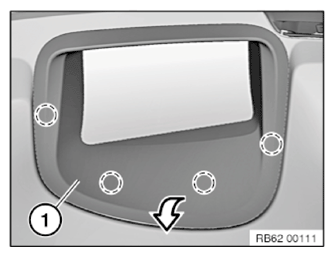

Release cover for head-up display (1) with special tool 00 9 325 at marked area from retaining clips.
Feed cover for head-up display (1) in direction of arrow out of instrument panel trim and remove.
Installation note:
Retaining clips (1) must not be missing or damaged.
Make sure cover for head-up display (2) is correctly seated on instrument panel trim.
