24 00 111 Removing and installing transmission (AISIN F22AW) (X2 sDrive 28i 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030
23 4 150
11 6 480

CAUTION: To prevent heavy damage to the engine block, the protruding thread of the transmission bolts absolutely must be checked for damage and corrosion before removal .
If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal .
Replace rusted, damaged screws.

Failure to comply with this instruction will result in serious damage to the engine block and transmission.

Safety information:

Before removing the transmission, it is essential to check the tight fit of the engine mount and ensure that the rubber coating of the engine mount is in perfect condition. If the rubber coating is porous and has cracks, remove the transmission with engine.

NOTE: After completion of work , refer to CHECKING TRANSMISSION OIL LEVEL .

CAUTION: Use only the APPROVED AUTOMATIC TRANSMISSION OIL in this automatic transmission.
Failure to comply with this requirement will result in serious damage to the automatic transmission!

CAUTION: An incorrectly adjusted gearshift mechanism can result in tooth meshing noise being transmitted to the passenger compartment.
Adjust SELECTOR LEVER .

Necessary preliminary work:

Refer to REMOVING THE SYSTEM BATTERY .
Refer to SECURING ENGINE IN INSTALLATION POSITION .
Refer to REMOVING FRONT WHEEL ARCH COVER ON LEFT AND RIGHT .
Refer to REMOVING FRONT AXLE SUPPORT .
No wheel alignment is required for removal and installation of front axle support .
Refer to REMOVING STARTER MOTOR .
Refer to REMOVING LEFT OUTPUT SHAFT only at transmission end and hang up.
Refer to REMOVING RIGHT OUTPUT SHAFT only at transmission end and hang up.

Removal:

Release screws (1).

Release partition wall (2) from bracket and remove.

Release control unit (3) from bracket.

Detach wiring harness (4) from battery tray (5).

Remove battery tray (5).

Courtesy of BMW OF NORTH AMERICA, INC.

Release ball socket (1) from ball stud.

Release the cable (2) from the support angle.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1).

Release clamp (2) with wiring harness from transmission and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows transmission oil cooler on vehicles with B47O or B48O engine.

CAUTION: Follow notes for CARRYING OUT REPAIR WORK ON THE COOLING SYSTEM .

Release locks (1).

Disconnect coolant hoses from transmission oil cooler.

Catch the emerging coolant.

Courtesy of BMW OF NORTH AMERICA, INC.

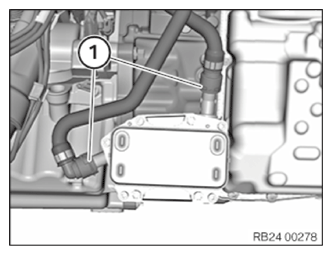

Graphic shows transmission oil cooler on vehicles with B47M or B48U engine.

CAUTION: Follow notes for CARRYING OUT REPAIR WORK ON THE COOLING SYSTEM .

Unfasten hose clamps.

Disconnect the coolant hoses (1) from the transmission oil cooler.

Catch the emerging coolant.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release ground strap (2) from transmission and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine with special tool 11 6 480 at vibration damper in direction of rotation.

Release nut (1) on torque converter.

Crank engine further and release remaining 5 nuts.

Courtesy of BMW OF NORTH AMERICA, INC.

For B46/B48 engine:

Release screws (1).

Remove heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tool 23 4 150 and 00 2 030 .

Secure transmission with tensioning strap (3).

Tasks are described in GEARBOX HOLDER .

Courtesy of BMW OF NORTH AMERICA, INC.

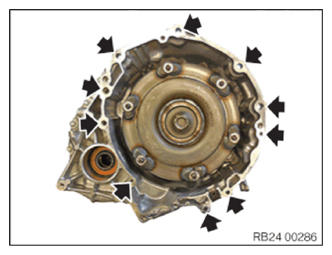

Release bolts and remove transmission.

CAUTION: Transmission mounting bolts differ in length.
Note installation position.
Installing the wrong bolts may cause serious damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bore hole (1) of driving plate must be accessible from recess on engine oil sump. Check fitting sleeves (2...3) are correctly seated.

Replace damaged fitting sleeves.

Courtesy of BMW OF NORTH AMERICA, INC.

Twist the torque converter until the bore hole of the torque converter is aligned with the bore hole of the flywheel.

Flange-mount automatic transmission to engine and screw on.

Tightening torque 24 00 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine with special tool 11 6 480 at vibration damper in direction of rotation.

Parts: Replace nuts (1).

Screw 6 nuts (1) on torque converter.

Tightening torque 24 40 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

For B46/B48 engine:

Install heat shield (2).

Insert screws (1) and tighten.

Courtesy of BMW OF NORTH AMERICA, INC.

Screw transmission on transmission mount with screws (1) .

Tightening torque 22 32 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Screw ground strap (2) on transmission with screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows transmission oil cooler on vehicles with B47O or B46/B48O engine.

Slide coolant hoses onto transmission oil cooler and engage locks (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows transmission oil cooler on vehicles with B47M or B48U engine.

Slide the coolant hoses (1) onto the transmission oil cooler.

Secure hose clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure clamp (2) on transmission with wiring harness.

Lock connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Press in cable (2) into the support angle.

Ensure cable audibly engages.

Press on ball socket (1) onto ball stud.

Courtesy of BMW OF NORTH AMERICA, INC.

Install battery tray (5).

Tighten screws (1).

Install wiring harness (4) on battery tray (5).

Insert control unit (3) in bracket.

Insert partition wall (2) in bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING FRONT AXLE SUPPORT .
No wheel alignment is required for removal and installation of front axle support .
Refer to INSTALLING LEFT OUTPUT SHAFT .
Refer to INSTALLING RIGHT OUTPUT SHAFT .
Refer to INSTALLING STARTER MOTOR .
Refer to INSTALLING THE FRONT WHEEL ARCH COVER ON LEFT AND RIGHT .
Refer to INSTALLING THE SYSTEM BATTERY .
Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
