Universal gearbox holder
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
23 Universal gearbox holder
Special tools required:
- 00 2 030
- 23 4 150
NOTE:
Suitable for manual gearbox and automatic transmission
IMPORTANT:
Supports (1) can be adjusted at the side using screws (2).
Support (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.

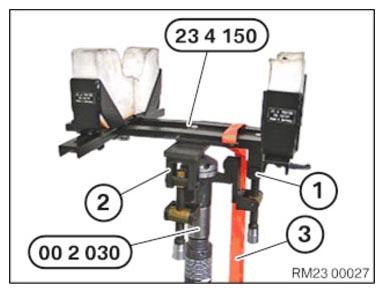

Supporting transmission:
Support transmission with special tools 23 4 150, 00 2 030.
Joint (1) to height adjustment.
Joint (2) to inclination angle adjustment.
IMPORTANT:
Transmission must
be secured with tensioning strap (3).
