Installing the positive battery cable from the battery to the starter
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Improper routing of the positive battery cable
.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
- Guide in and install the positive battery cable at the clamps (1).

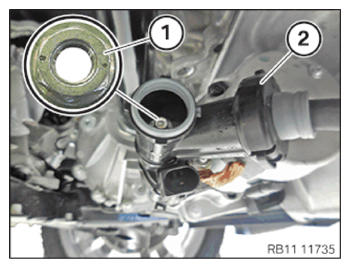

- Feed the positive battery cable (2) in on the starter and install.
- Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS
Battery positive lead to starter M8 tightening torque 135 Nm - Insert and install sealing cap (2).
- Install sealing cap (2) in the direction of the arrow.
- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
- Insert and install the holder (2).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Holder to oil pan M6 Tightening torque 8 Nm - Insert and install the positive battery cable (3) at the alternator.
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATIONS
Positive battery cable to alternator M8 tightening torque 19 Nm - Guide in and install cover (1).
- Secure the positive battery cable (3) at the clamps (4).
- Guide in and install the positive battery cable (4) at the partition panel (5).
- Tighten the battery positive terminal (3).TIGHTENING TORQUE SPECIFICATIONS
Positive battery terminal to battery M6 Tightening torque 5 Nm - Guide in and install the positive battery cables (2).
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Positive battery cable to positive battery terminal M8 Tightening torque 15 Nm - Insert and install the tension strut (2).
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Tension strut on shock tower/battery tray M8 tightening torque 19 Nm - Position the cover (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Battery cover | ||
|---|---|---|
| M8 | Tightening torque | 28 Nm |
Follow-up work
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
