51 16 165 Removing and installing/replacing complete center console

Special tools required:

• 2 298 504

Necessary preliminary tasks:

• REMOVE FRONT STORAGE COMPARTMENT
• REMOVE  rear center console cover
• REMOVE  trim panel for pedal assembly
• REMOVE  trim for instrument panel at bottom right
• Loosen the GAITER FOR THE PARKING BRAKE LEVER from the center console

With automatic transmission only:

• Remove GEAR SELECTOR SWITCH

Unscrew nuts (1).

Tightening torque: 51 16 3AZ .

Disconnect plug connections (2), depending on version.

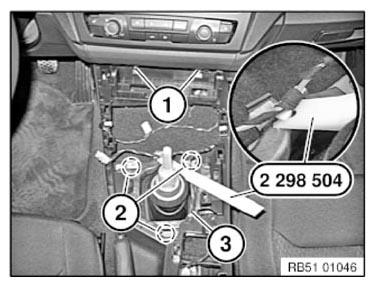

Release screws (1).

Tightening torque: 51 16 4AZ .

Unfasten screws (2).

Tightening torque: 51 16 3AZ .

Detach wiring harness (3) from central console mount using special tool 2 298 504 .

Raise the center console (1) rear and feed out gaiter (2).

Remove center console (1) to the rear/top.

If applicable, note other plug connections and cable clips.

Installation note:

Feed center console (1) correctly into dashboard including guides (4).

Make sure wiring harness (3) is in correct position.

Replacement (depending on version):

• Modify air ducts (1)
• Modify retaining bracket (2)
• Change over CENTER ARMREST .
• Modify KNEE PAD
• Modify INSERT IN STORAGE COMPARTMENT
• Modify BASE PLATE for telephone
  Fig 4: Air Ducts And Retaining Bracket

  Courtesy of BMW OF NORTH AMERICA, INC.
