51 16 163 Removing and installing/replacing rear center console cover
Special tools required:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

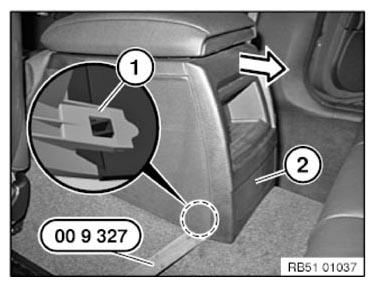

Loosen the latch mechanisms (1) left/right from the bottom with special tool 00 9 327 .
Unclip cover (2) towards rear.
If necessary, unlock associated plug connections and disconnect.
Remove cover (2).
Installation note:
Latch mechanisms (1) on cover (2) must not be damaged or missing.
Replacement (depending on version):
- Modify the tray (3).
- Modify FRESH AIR GRILLE IN REAR PASSENGER COMPARTMENT
- If applicable, modify the 12 V charging socket
