51 16 130 Removing and installing/replacing left or right knee pad

Special tools required:

• 00 9 325

Loosen knee pad (1) with special tool 00 9 325 from clamps (2).

Installation note:

If necessary, replace faulty clamps (2).

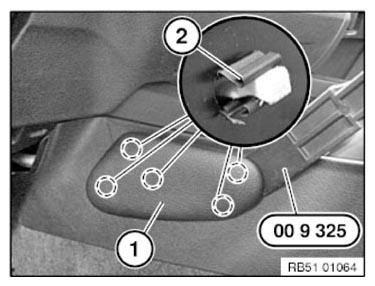

Fig 1: Loosening Knee Pad With Special Tool (00 9 325) From Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) and guides (2) must not be damaged or missing.

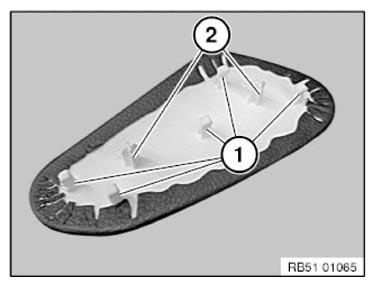

Fig 2: Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
