51 47 315 Removing and installing / replacing front carpet for passenger compartment

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove trims from bass speaker . See 65 12 051 REMOVING AND INSTALLING/REPLACING CENTRAL BASS SPEAKER - DRIVER'S SIDE - (UNDER FRONT SEAT) or 65 12 053 REMOVING AND INSTALLING/RENEWING CENTRAL BASS SPEAKER - FRONT PASSENGER SIDE - (UNDER FRONT SEAT) on left and right.
Remove CENTRE CONSOLE SUPPORT .
Remove trim panel, A-pillar, bottom . See 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT or 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT left and right.
Remove COMPLETE ACCELERATOR PEDAL MODULE .

Cut out carpet (1) along heater box.

IMPORTANT: Choose cut so that center console conceals cutting edge after installation. Do not damage any cables or air ducts when cutting.

Remove carpet (1) toward rear/top and if necessary feed out cable.

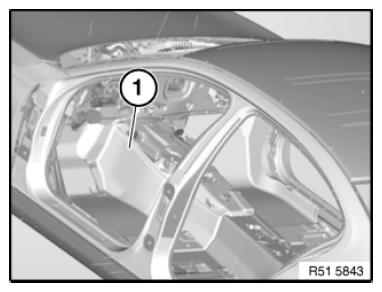

Fig 1: Identifying Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cutouts (1) serves as locators when installing carpet (2).

Replacement

Modify footrest, driver's side.

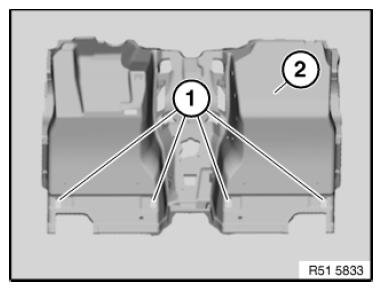

Fig 2: Identifying Cutouts And Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip footwell net (1) on front passenger side.

Fig 3: Removing Footwell Net

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged retaining clips.

Fig 4: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
