35 40 001 Removing and installing or replacing accelerator pedal module

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Installation note:

Tightening torque 35 40 1AZ .

Fig 1: Pulling Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connector (1).

Remove accelerator pedal module.

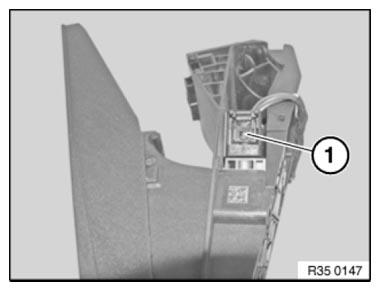

Fig 2: Identifying Accelerator Pedal Module Connector

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
