51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove DOOR SILL COVER STRIP, FRONT (INSIDE) right
Remove dashboard trim at bottom . See 51 45 195 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER RIGHT INSTRUMENT PANEL (ECE ONLY) or 51 45 195 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT INSTRUMENT PANEL TRIM (US VERSION ONLY) right.

Detach edge protection (1) in area of side trim (3).

Release clips (2) in direction of arrow.

Pull out side trim panel (3) from carpet.

Installation note:

Clips (2) for side trim panel trim (3) must not be damaged.

Fig 1: Releasing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify clips (2) for side trim panel (1).

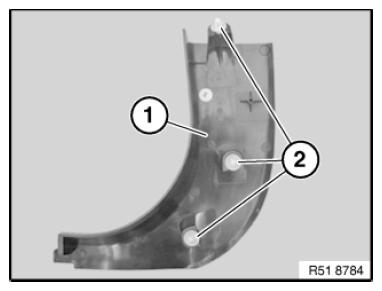

Fig 2: Identifying Side Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
