65 12 051 Removing and installing/replacing central bass speaker - driver's side-(under front seat)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR CABIN ELECTRIC AUXILIARY HEATER .
NOTE:

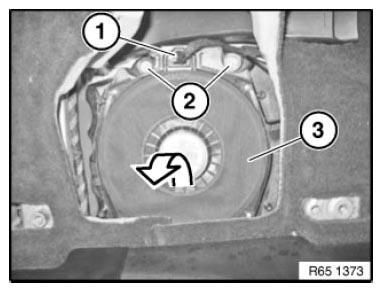

Example illustration on the F07.
Unfasten plug connection (1) and disconnect.
Unscrew nuts (2).
Feed out central bass carrier (3) in direction of arrow.
