51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks

Remove FRONT ENTRANCE COVER STRIP (INSIDE) .
Remove trim panel for pedal assembly . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

Release screw (1).

Remove handle from bonnet cable release.

Release screw (2).

Fig 1: Identifying Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out A-pillar trim panel (1) using special tool 00 9 317 .

Disconnect plug connection behind.

Installation note:

Neatly fit A-pillar trim (1) into door seal.

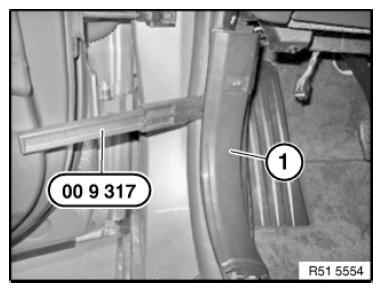

Fig 2: Removing A-Pillar Trim Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure A-pillar trim panel (3) is correctly seated.

If necessary, replace both clips (1) and clamp (2).

Replacement

Modify clips (1)
Modify luggage compartment locking system switch

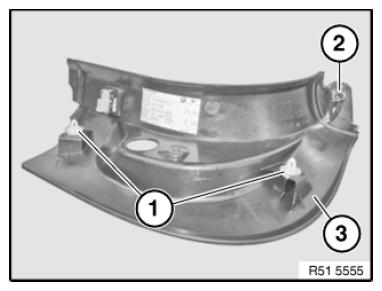

Fig 3: Identifying A-Pillar Trim Panel, Clips And Clamp
Courtesy of BMW OF NORTH AMERICA, INC.
