51 16 181 Replacing center console carrier

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove complete CENTRE CONSOLE .
Remove REAR CENTRE CONSOLE TRIM .

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Unfasten screws (2).

Installation:

Replace self-locking screws (2).

Tightening torque 51 16 4AZ .

If necessary, disconnect plug connection from aerial for comfort access (1).

Fig 1: Identifying Self-Locking Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Replace self-locking screws (1).

Tightening torque 51 16 4AZ .

Disconnect plug connection from rear compartment blower.

Fig 2: Identifying Self-Locking Screws At Rear Compartment Blower

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Raise center console carrier (3) slightly and pull out wiring harness.

Remove carrier.

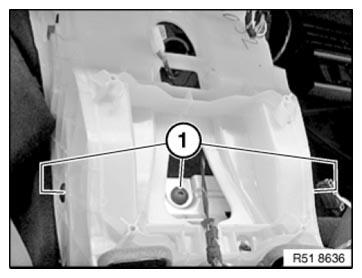

Fig 3: Identifying Centre Console Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Modify rear compartment air duct (2)

Modify all plastic nuts (1).

Installation:

Replace defective nuts.

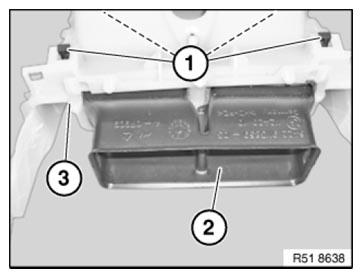

Fig 4: Identifying Rear Compartment Air Duct And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from front bracket (2) and remove bracket.

Perform additional work steps according to equipment specification:

Release screws (3) from front compartment blower (4) and remove blower.

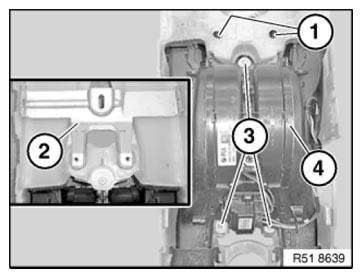

Fig 5: Identifying Front Bracket, Front Compartment Blower And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

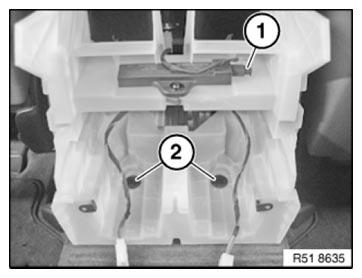

Release screw (1) from aerial for comfort access (3) and remove aerial.

Modify plastic nut (2).

Installation:

Replace defective nut.

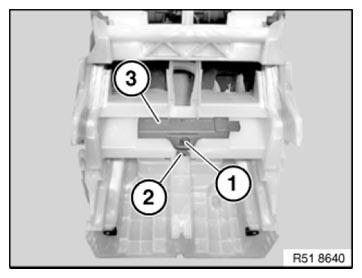

Fig 6: Identifying Screw On Aerial For Comfort Access And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
