11 21 500 Replacing crankshaft (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Weight of crankshaft is approx. 20 kg.
Risk of injury from sharp crankcase edges.

Necessary preliminary work:

Remove engine
Mount engine on ASSEMBLY STAND .
Remove both cylinder heads. See LEFT CYLINDER HEAD and RIGHT CYLINDER HEAD .
Remove HUB FOR VIBRATION DAMPER .
Remove LOWERING TIMING CASE COVER .
Remove oil pan. See LOWER OIL SUMP SECTION and UPPER OIL SUMP SECTION .
Remove OIL PUMP .
Remove PISTON .
Remove FLYWHEEL .
Remove radial shaft seals. See CRANKSHAFT SEAL ON THE TRANSMISSION SIDE and RADIAL SHAFT SEAL IN BOTTOM TIMING CASE COVER .
Remove both TIMING CHAINS .

Installation note:

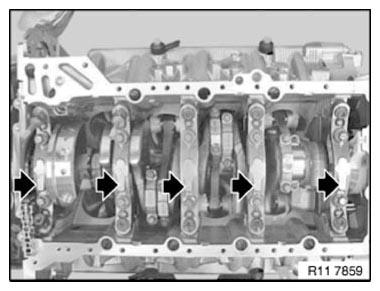

Layout of main bearing caps.

All numbers must be read from the cylinder bank (5 to 8) (see arrows).

Fig 1: Identifying Layout Of Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

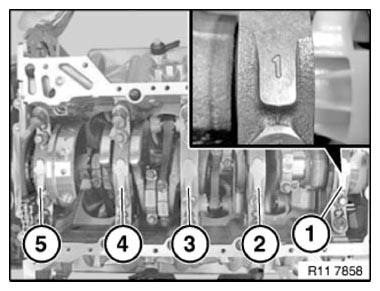

Main bearing caps (1 to 5) opposite the output end on the timing chain drive.

Fig 2: Identifying Main Bearing Caps 1 To 5

Courtesy of BMW OF NORTH AMERICA, INC.

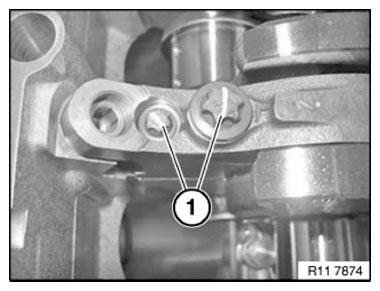

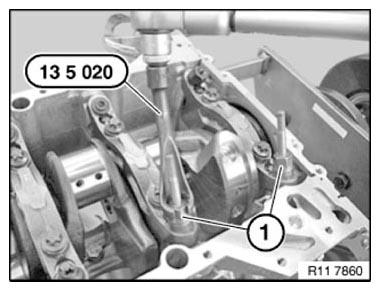

Release oil pump spacer bolts (1) with special tool 13 5 020 .

Fig 3: Identifying Oil Pump Spacer Bolts And Special Tool (13 5 020)

Courtesy of BMW OF NORTH AMERICA, INC.

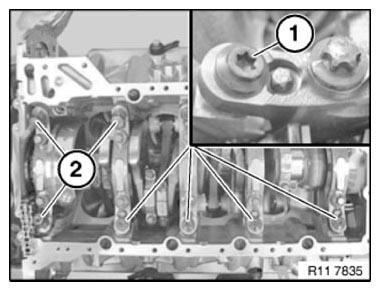

Release main bearing taper screw connection (1).

Release oil pump spacer pins (2).

Fig 4: Identifying Oil Pump Spacer Pins And Main Bearing Taper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

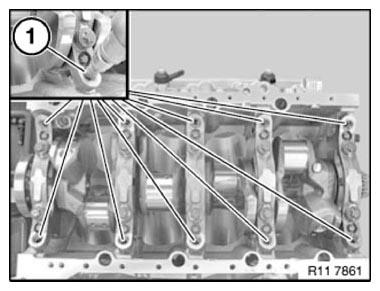

Release all thread support bushings (1).

Fig 5: Locating Threaded Support Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

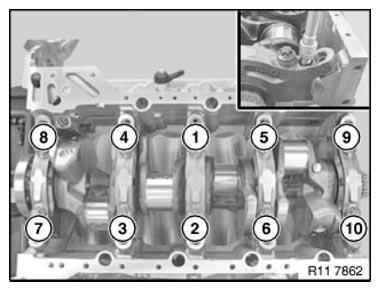

Release collar bolts (M8) in sequence 10 to 1.

Fig 6: Crankshaft Bolts (M8) Tightening/Loosening Sequence (S63)

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar bolts (M11) in sequence 10 to 1.

Fig 7: Crankshaft Bolts (M11) Tightening/Loosening Sequence (S63)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove main bearing caps 1 to 5.

IMPORTANT: Remove crankshaft with a 2nd person, weight approx. 25 kg.

Lift out crankshaft and set down safely (secure against turning).

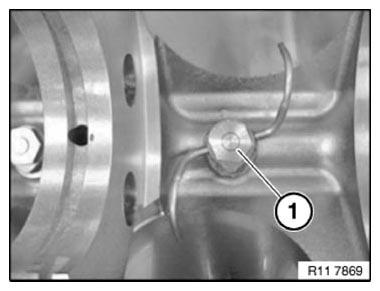

Release screw for oil nozzle (1).

Tightening torque: 11 11 8AZ .

Fig 8: Identifying Oil Nozzle Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

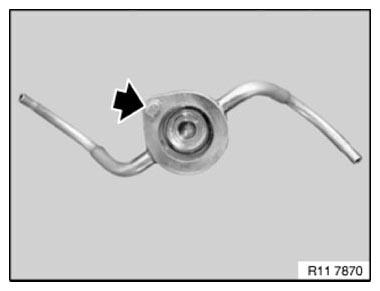

Check oil nozzle (1) for clear passage with compressed air.

Observe fastening on oil nozzle.

Fig 9: Identifying Oil Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

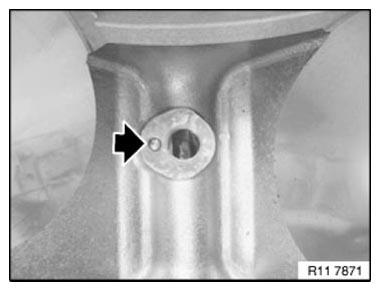

Observe fastening in crankcase.

Fig 10: Checking Oil Nozzle Fastening In Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Replace CRANKSHAFT MAIN BEARING SHELLS .

Installation note:

Observe arrangement of main bearing caps.

All numbers must be read from the cylinder bank (5 to 8) (see arrows).

Fig 11: Identifying Layout Of Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Main bearing caps (1) is opposite the output end on the timing chain drive.

Turn back all thread support bushings hand-tight.

Installation note:

Coat all bearing points with engine oil.

IMPORTANT: Install crankshaft with a 2nd person, weight approx. 25 kg.

Fig 12: Identifying Main Bearing Caps 1 To 5

Courtesy of BMW OF NORTH AMERICA, INC.

Install crankshaft.

Fit bearing caps (1 to 5).

Set down bearing caps positioned from 1 to 5.

Insert all collar bolts (M11) hand-tight.

Secure collar bolts (M11) in sequence (1 to 10).

Fig 13: Crankshaft Bolts (M11) Tightening/Loosening Sequence (S63)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For a better overview of the screw connection quality, mark the head of all collar bolts after joining with a line (1) using an oil-proof marker pen.

Check angle tightening.

Fig 14: Identifying Lines Marked Across Heads Of Collar Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

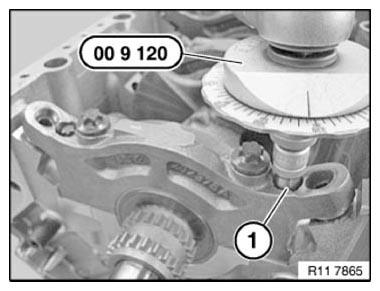

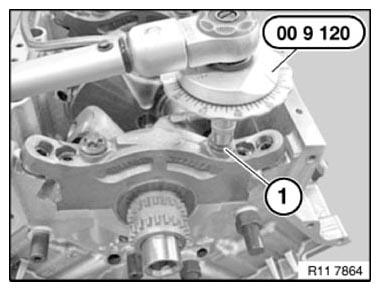

Secure collar bolt (1) with special tool 00 9 120 .

Tightening torque: 11 11 1AZ .

Fig 15: Tightening Down Main Bearing Cap Collar Bolts Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all collar bolts (M8) hand-tight.

Secure collar bolts (M8) in sequence (1 to 10).

Fig 16: Crankshaft Bolts (M8) Tightening/Loosening Sequence (S63)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For a better overview of the screw connection quality, mark the head of all collar bolts after joining with a line (1) using an oil-proof marker pen.

Check angle tightening.

Fig 17: Identifying Lines Marked Across Heads Of Collar Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure collar bolt (1) with special tool 00 9 120 .

Fig 18: Securing Collar Bolt Using Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

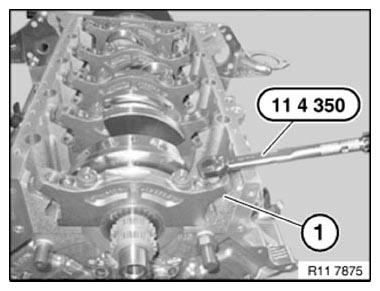

Secure all threaded support sleeves (1) with special tool 11 4 350 .

Tightening torque: 11 11 3AZ .

Fig 19: Securing Threaded Support Sleeves Using Special Tool (11 4 350)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure main bearing taper screw connection (1).

Tightening torque: 11 11 4AZ .

Secure oil pump spacer pins (2).

Tightening torque: 11 11 5 AZ.

Fig 20: Identifying Oil Pump Spacer Pins And Main Bearing Taper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check crankshaft COEFFICIENT OF FRICTION .

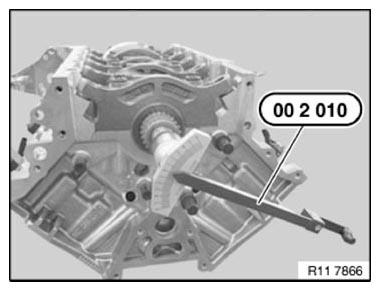

Determine crankshaft breakaway torque with special tool 00 2 010 .

Rotate crankshaft at central bolt using special tool 00 2 010 .

If the breakaway torque is too high, it will be necessary to correct the BEARING CLEARANCE .

Fig 21: Rotating Crankshaft Central Bolt Using Special Tool (00 2 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 6 252 to crankcase with magnetic base.

Slide crankshaft in direction of arrow forwards as far as it will go.

Set special tool 11 6 251 to zero.

Slide crankshaft (1) in direction of arrow towards rear and determine value.

Check AXIAL PLAY .

Fig 22: Checking Axial Play

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
