11 23 010 Removing and installing/replacing vibration absorber (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove charge air cooler on left and right. See LEFT CHARGE AIR COOLER and RIGHT CHARGE AIR COOLER .
Remove DRIVE BELT for air conditioning compressor for the air conditioning
Remove alternator DRIVE BELT .
Remove BELT PULLEY for A/C system

Release screw (1).

Tightening torque 11 28 1AZ .

Remove belt tensioner with idler pulley (2).

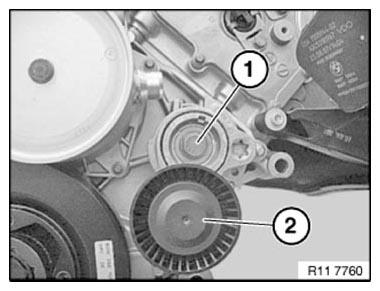

Fig 1: Identifying Idler Pulley And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 8 090 with three screws (1) to vibration damper.

Secure special tool 11 8 090 with belt tensioner bolt (2) to timing case cover.

Tightening torque 11 28 1AZ .

NOTE: A 3/4 inch tool is needed to release the central bolt.

Release central bolt on vibration damper.

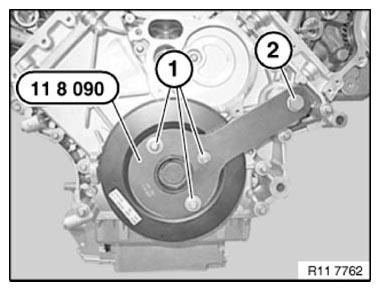

Fig 2: Identifying Special Tool, Screws, And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Secure central bolt with special tool 00 9 140 or 11 3 460 .

Position special tool 11 3 460 on special tool 11 8 090 .

Adjust special tool 11 9 453 on special tool 11 9 454 using clamping screw to 0° on scale.

Tightening torque 11 23 1AZ .

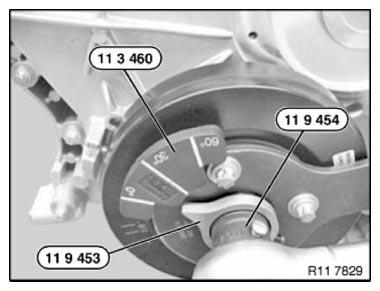

Fig 3: Positioning/Securing/Adjusting Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
