11 14 151 Replacing crankshaft seal on the transmission side (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The crankshaft seal can only be replaced completely with the end cover.
The crankshaft seal is an integral part of the end cover and cannot be replaced individually.

Necessary preliminary tasks:

Drain off ENGINE OIL .
Remove FLYWHEEL .

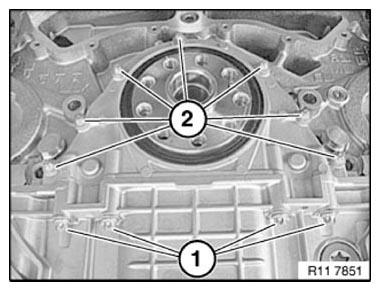

Release screws (1).

Unfasten screws (2).

Carefully remove end cover with crankshaft seal.

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Support bush (2) is included in delivery specification.
If the crankshaft seal (1) is stored for more than six months without the support sleeve (2), its operational reliability will no longer be guaranteed.
Crankshaft seal (1) must not be reused in this case!
Support bush (2) remains in the crankshaft seal (1) and is used as a slip bush during described installation described below.

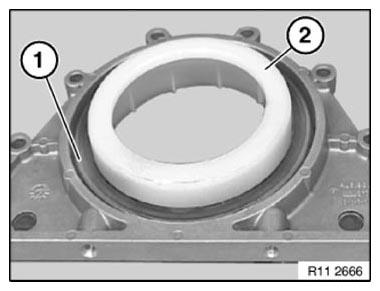

Fig 2: Identifying Support Bush And Radial Crankshaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The sealing lip of the crankshaft seal (1) is highly sensitive and must not be kinked.

Installation note:

Check fitting sleeves (1) for damage and correct installation position.

Clean sealing surface (2) so that it is free from oil and grease.

Coat contact edges on separating face along oil sump (see arrows) with DREI BOND 1209 2.1 .

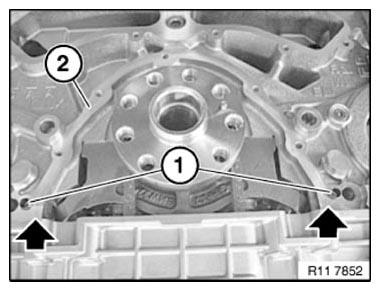

Fig 3: Identifying Fitting Sleeves, Sealing Surface, And Contact Points On Joint Along Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lightly oil running surface of crankshaft.

Fit end cover (1) with support bush (2) on crankshaft and push on carefully.

NOTE: Graphic (N62TU).

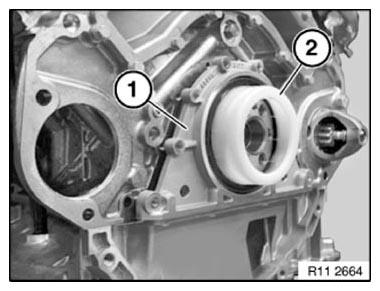

Fig 4: Identifying Support Bush And End Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws (2) and initially tighten without play.

Insert screws (1) and initially tighten without play.

Tighten down bolts (2) from inside outwards.

Tighten down screws (1) from inside outwards.

Tightening torque 11 14 4AZ .

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
