11 22 510 Removing and installing/replacing flywheel (transmission removed - S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260 .
11 4 180 .

Necessary preliminary tasks:

Remove transmission. See TWIN-CLUTCH GEARBOX (GS7D36SG)or MANUAL GEARBOX (GS6-53BZ) .

Fix flywheel in position with special tool 11 9 260 as shown in graphic.

Release flywheel bolts with special tool 11 4 180 /

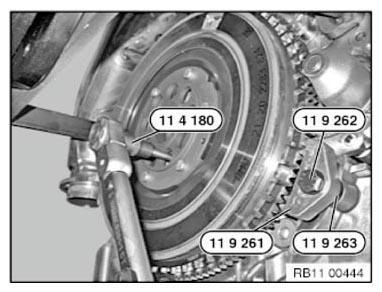

Fig 1: Removing/Installing Flywheel

G09920481

Courtesy of BMW OF NORTH AMERICA, INC.

Twin-clutch gearbox:

Release all flywheel bolts (1).

Remove all special tools.

Remove flywheel (2).

Installation note:

Clean thread of flywheel bolts in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit new flywheel bolts .

Tightening torque 11 22 1AZ .

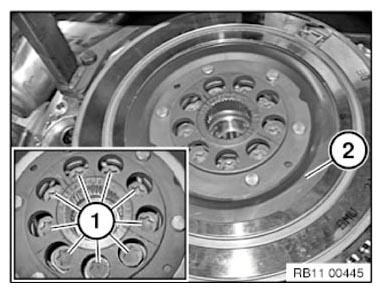

Fig 2: Identifying Flywheel
