11 21 531 Replacing all crankshaft main bearing shells (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools:

IMPORTANT: Risk of injury from sharp edge of housing.

IMPORTANT: If a crankcase or a crankshaft is replaced, old and new identifications can be used.
A mixed installation is permissible.

Example:

An old crankcase with an old crankcase designation and a new crankshaft with a new crankshaft designation.

An old crankshaft with an older crankshaft designation and a new crankcase with a new crankcase designation.

Or a new crankcase with a new crankshaft with new identifications.

Necessary preliminary tasks:

Remove CRANKSHAFT .

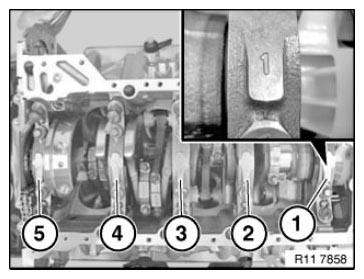

NOTE: Main bearing caps 1 to 5 are marked with punched numbers.

Fig 1: Identifying Main Bearing Caps 1 To 5

Courtesy of BMW OF NORTH AMERICA, INC.

Observe crankshaft construction stage:

S: Series

B: Repair stage 1

C: Repair stage 2

The letters denote the bearing shell classification for the relevant bearing position from 1 to 5 in the crankcase and is located on the transmission side in the Vee.

The first letter on the left applies to the first bearing position at the front on the timing chain drive.

Color assignment in crankcase 1 to 5.

Y= yellow

G= green

V= violet

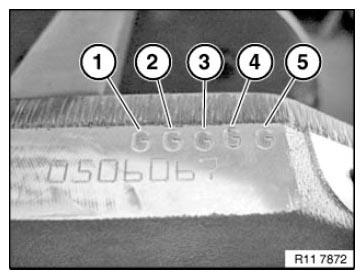

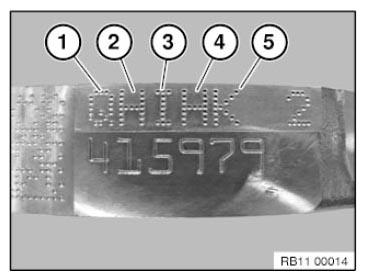

Fig 2: Identifying Codes On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

The letters denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap). The first letter on the left applies to the first bearing position at the front on the timing chain drive.

Color assignment on crankshaft 1 to 5

Y= yellow

G= green

V= violet

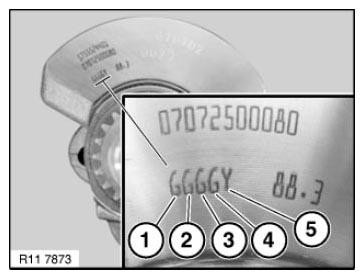

Fig 3: Identifying Codes In Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New bearing shell classification.

The letters denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap).

The first letter on the left applies to the first bearing position at the front on the timing chain drive.

Color assignment on crankshaft 1 to 5

Fig 4: Identifying New Bearing Shell Classification Codes

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Changed bearing classification: Bearing position 1, 2, 3, 4 and 5

Code letter	Color code
New (A to H) Old Y	Yellow Yellow
New (I to R) Old G	Green Green
New (S is Z) Old V	Violet

	Tolerance classes	Bearing shell covers
Crankcase	A B C D E G H	Yellow Yellow
Crankcase	I K M N P q R	Green Green
Crankcase	S T U W X Z-Series	Violet
Crankshaft	A B C D E G H	Yellow Yellow
Crankshaft	I K M N P q R	Green Green
Crankshaft	S T U W X Z-Series	Violet

Installation note:

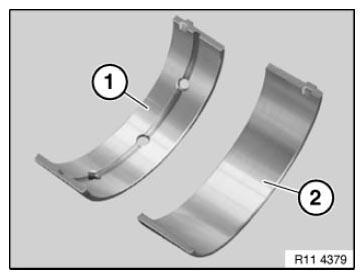

Install main bearing shells (1) with lubrication groove in crankcase.

Install main bearing shells (2) without lubrication groove in the main bearing caps.

Fig 5: Identifying Main Bearing Shells With/Without Lubrication Groove

Courtesy of BMW OF NORTH AMERICA, INC.

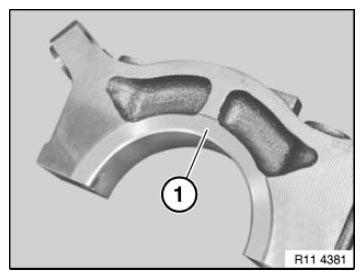

NOTE: Main bearing cap number 3 can be identified by the surfaces (1) for the thrust washers of the thrust bearing.

Fig 6: Identifying Thrust Washer Surface

Courtesy of BMW OF NORTH AMERICA, INC.

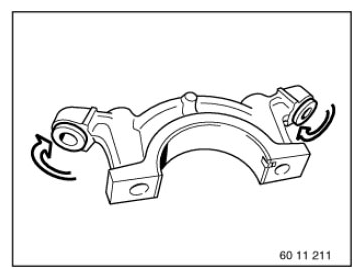

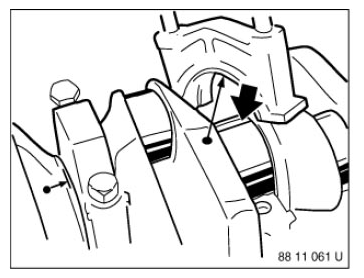

Turn back thread support bushing into main bearing cap.

Fig 7: Turning Back Thread Support Bushing Into Main Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Checking main bearing clearance:

To check crankshaft bearing play, use the existing main bearing bolts.

IMPORTANT: Risk of cracking!

No oil is permitted in the blind holes.

Do not twist crankshaft.

Place special tool 00 2 590 (Plastigage model PG 1) onto the oil-free crankshaft (see arrow).

Fig 8: Checking Main Bearing Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down all collar bolts (M11) of main bearing caps in sequence 1 to 5 to joining torque.

Tightening torque 11 11 1AZ .

Fig 9: Crankshaft Bolts (M11) Tightening/Loosening Sequence (S63)

Courtesy of BMW OF NORTH AMERICA, INC.

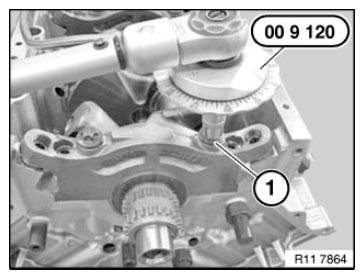

Tighten down all collar bolts (M11) of main bearing caps with special tool 00 9 120 with angle of rotation.

Fig 10: Tightening Down Main Bearing Cap Collar Bolts Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Remove main bearing cap.

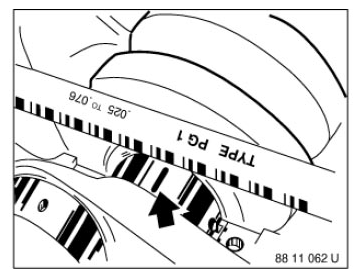

Read off main bearing clearance at width of flattened plastic thread with assistance of measurement scale.

Main bearing play.

Remove plastic thread
Apply a coat of oil to new bearing shells and crankshaft

Fig 11: Measuring Radial Clearance Using Flattened Plastigage And Measuring Scale
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace main bearing bolts in main bearing caps with new bolts.
Do not wash off bolt coating.

IMPORTANT: Risk of cracking!

No oil is permitted in the blind holes.

Install crankshaft.

Carefully strike back and front of crankshaft with a plastic hammer to center guide bearing (do not damage crankshaft).

Secure special tool 11 6 252 with magnetic foot on crankcase.

Position special tool 11 6 251 .

Tightening specifications for main bearing:

Check axial play.

Check guide bearing shell, crankshaft and crankcase if necessary.

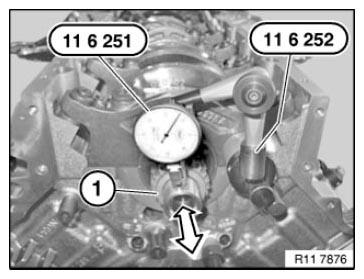

Fig 12: Checking Axial Play

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
