11 21 500 Replacing crankshaft (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminium screws/bolts are permitted with and without color coding (blue).
Aluminium screws/bolts must be replaced each time they are released .
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary work:

Remove ENGINE .
Mount engine on ASSEMBLY STAND .
Remove VIBRATION ABSORBER .
Remove oil sump. See REMOVING OIL SUMP (RWD) or REMOVING OIL SUMP (AWD) .
Remove OIL PUMP .
Remove timing chain module. Procedure is shown under REMOVING/INSTALLING/REPLACING INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .
Remove oil pump/vacuum pump chain module.
Remove CYLINDER HEAD .
Remove FLYWHEEL .
Remove all PISTONS .

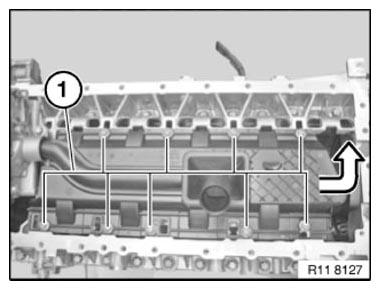

Release screws (1).

Tightening torque 11 13 5AZ .

Installation note:

Replace aluminium screws.

Remove oil deflector with integrated intake snorkel.

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

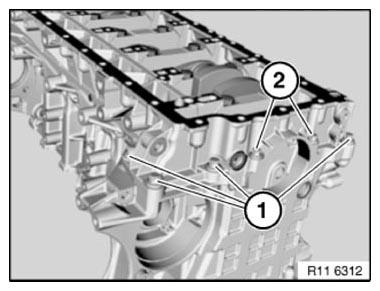

Release aluminium screws (1).

Release aluminium screws (2).

Installation note:

Replace aluminium screws.

Fig 2: Identifying Aluminium Screws

Courtesy of BMW OF NORTH AMERICA, INC.

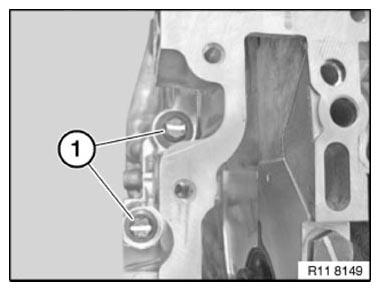

Release aluminium screws (1).

Installation note:

Replace aluminium screws.

NOTE: Illustration shows N52.

Fig 3: Identifying Aluminium Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unfasten screws (2).

Installation note:

Replace aluminium screws.

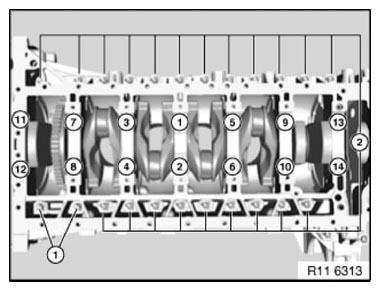

Release steel screws (14 to 1) from outside inwards.

Remove crankcase lower section upwards.

Fig 4: Crankshaft Steel Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Remove crankshaft with aid of a second person.

Weight of crankshaft approx. 25 kg.

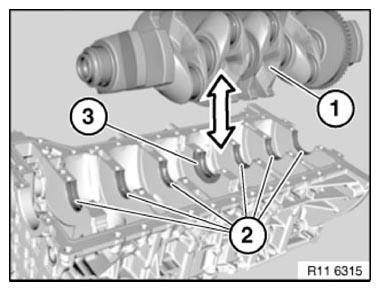

Remove crankshaft (1) upward in direction of arrow.

Remove BEARING SHELLS (2) and guide bearing shell (3), replace if necessary.

Fig 5: Installing Bearing Shells And Guide Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Clean all sealing surfaces (1) with special tool 11 4 470 .

Fig 6: Identifying Crankshaft Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

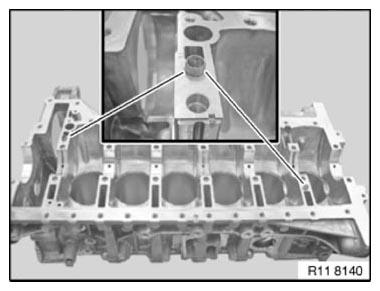

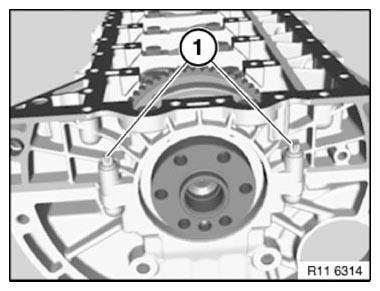

Check fitting bushes for damage and secure seating; replace if necessary.

Install all BEARING SHELLS .

Installation note:

Oil all bearing points adequately with engine oil.

Fig 7: Identifying Crankshaft Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Insert crankshaft with aid of a second person.

Weight of crankshaft approx. 25 kg.

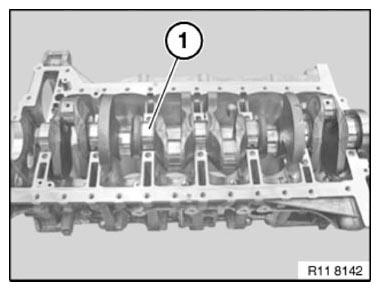

Insert crankshaft (1).

Fit crankcase lower section (watch fitting bushes).

Fig 8: Identifying Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

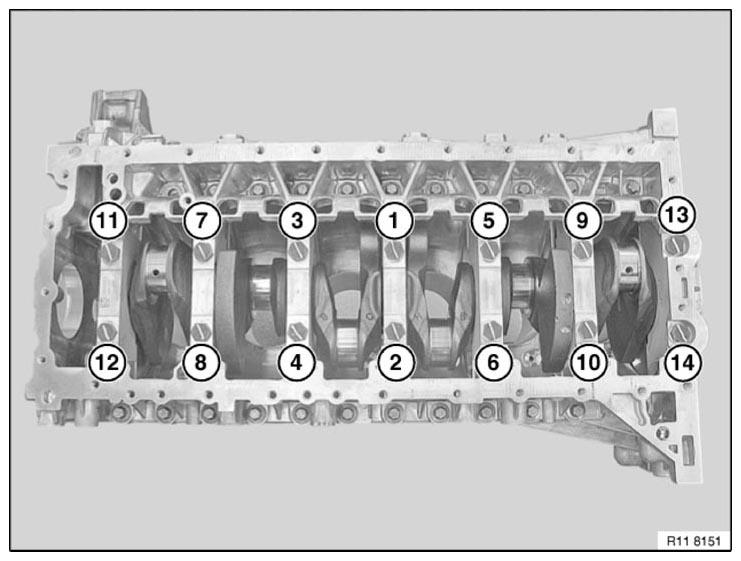

Fig 9: Crankshaft Steel Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

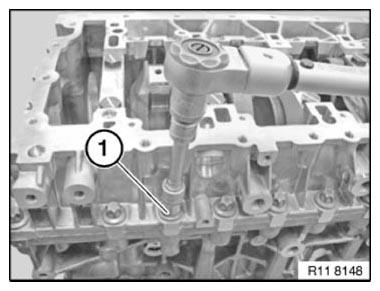

Follow tightening/torque sequence for the steel bolts (1 to 14).

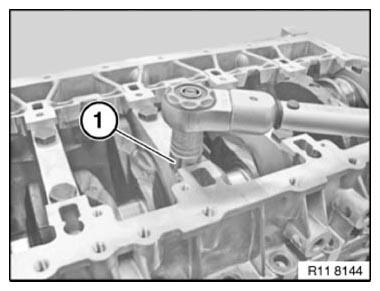

JOIN steel bolts (1).

Fig 10: Tightening Crankshaft Steel Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

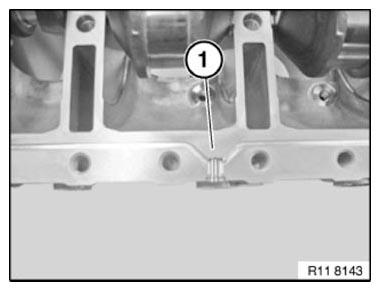

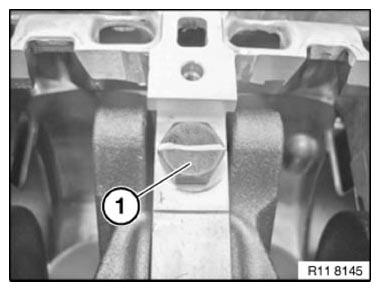

Mark across all steel bolts (1) with a colored mark.

Fig 11: Identifying Crankshaft Steel Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

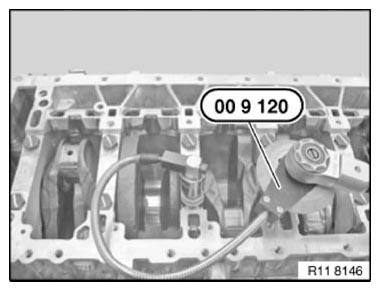

Tighten all steel bolts with a special tool 00 9 120 .

Tightening torque 11 11 1AZ .

Installation note:

All steel bolts must be positioned the same with respect to the colored mark after being fastened (see Fig 9).

Fig 12: Tightening Crankshaft Steel Bolts Using Special Tools (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

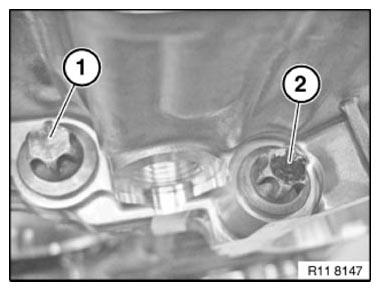

Installation note:

Aluminium bolts (1) and (2) can have a blue colored mark.

Aluminium screws/bolts are not magnetic .

Fig 13: Identifying Crankshaft Aluminium Bolts Colored Marks

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: In the case of aluminium screws, jointing torque and angle of rotation must be observed without fail.

JOIN all aluminium bolts (1) from inside toward the outside.

Tightening torque 11 11 2AZ .

Fig 14: Tightening Crankshaft Aluminium Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Mark across all aluminium bolts (1) with a colored mark.

Fig 15: Identifying Crankshaft Aluminium Bolts Colored Marks

Courtesy of BMW OF NORTH AMERICA, INC.

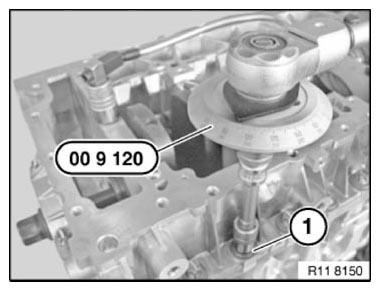

Tighten all aluminium bolts (1) only with special tool 00 9 120 .

Tightening torque 11 11 3AZ .

Tightening torque 11 11 4AZ .

Installation note:

All aluminium bolts must be equally positioned with respect to the colored mark after being fastened.

Fig 16: Tightening Crankshaft Aluminium Bolts Using Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

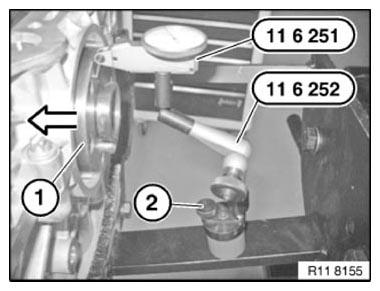

Fit special tool 11 6 252 with magnetic foot on special tool 11 4 440.

Clamp special tool 11 6 251 on special tool 11 6 252 .

Position special tool 11 6 251 with button on the flat side of the crankshaft.

Press crankshaft (1) in direction of arrow up to stop.

Set dial gauge with knurled screw (2) on zero.

Fig 17: Identifying Dial Gauge With Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

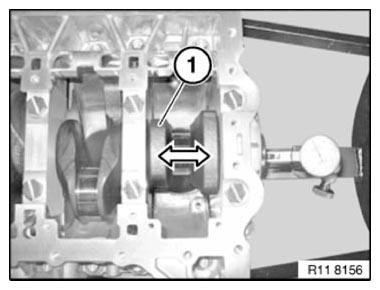

Press crankshaft (1) in direction of arrow from right to left up to stop.

Determine CRANKSHAFT AXIAL CLEARANCE .

Fig 18: Pressing Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

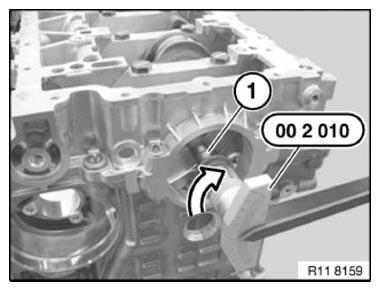

Turn crankshaft (1) via the central bolt with special tool 00 2 010 to determine the COEFFICIENT OF FRICTION .

Fig 19: Turning Crankshaft Central Bolt Using Special Tool (00 2 010)

Courtesy of BMW OF NORTH AMERICA, INC.

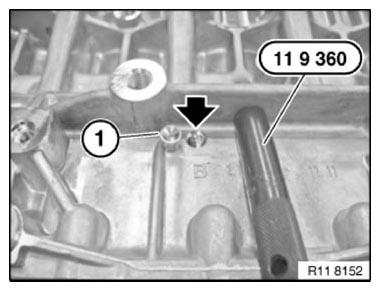

Drive both injector nozzles (1) on left and right on crankcase into the bore hole (see arrow) with special tool 11 9 360 .

Installation note:

Replace injector nozzles (1).

Fig 20: Locating Crankshaft Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

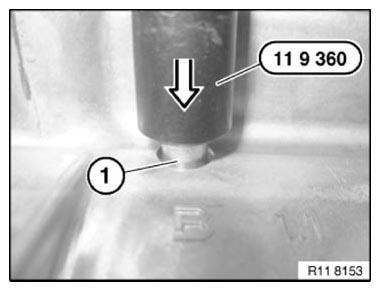

Drive in both injector nozzles (1) on left and right with special tool 11 9 360 into crankcase.

Fig 21: Installing Injector Nozzles Into Crankcase Using Special Tool (11 9 360)

Courtesy of BMW OF NORTH AMERICA, INC.

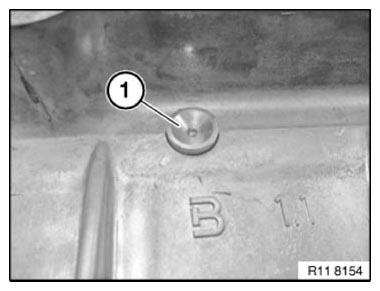

Drive injector nozzle (1) all the way in.

Fig 22: Identifying Crankshaft Injector Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Use PRIMER 1.3 AND LIQUID SEALING COMPOUND 1.4 .

Prepare liquid sealing compound (2) in special tool 11 4 370 .

Screw on nozzle (1) for injecting sealing compound.

Fig 23: Identifying Liquid Sealing Compound And Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly and evenly insert liquid sealing compound (1) via the injector nozzle with special tool 11 4 370 in direction of arrow.

Illustration shows N42.

Fig 24: Inserting Liquid Sealing Compound Using Special Tool (11 4 370)

Courtesy of BMW OF NORTH AMERICA, INC.

Replace crankshaft seal at front. See REPLACING FRONT CRANKSHAFT SEAL (N55), UP TO PRODUCTION DATE 02/2014 or 11 14 005 REPLACING FRONT CRANKSHAFT SEAL (N55), FROM PRODUCTION DATE 02/2014 .

Replace CRANKSHAFT RADIAL SEAL (transmission side).

Assemble engine.
