11 14 005 Replacing front crankshaft seal (N55), from production date 02/2014

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove VIBRATION ABSORBER .

IMPORTANT: Do not release central bolt.
If the central bolt is released, the sprockets of the timing chain and the oil pump will no longer be non-positively connected to the crankshaft. Intake and exhaust camshafts can turn in relation to crankshaft.
Risk of damage!

Fig 1: Caution - Do Not Release Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 371 to 80 Nm into crankshaft seal.

Screw in spindle 11 0 372 .

Release crankshaft seal from housing.

Repeat the operation several times if necessary.

Fig 2: Installing Special Tools (11 0 372) And (11 0 371)

Courtesy of BMW OF NORTH AMERICA, INC.

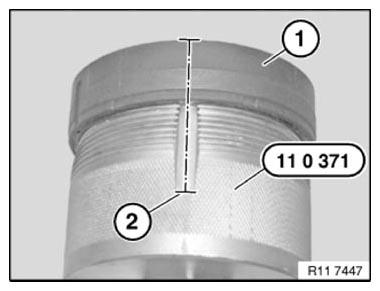

Carefully saw open crankshaft seal (1) at cutting line (2).

Remove crankshaft seal (1) from special tool 11 0 371 .

Fig 3: Identifying Crankshaft Radial Seal And Cutting Line

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

The following text describes installation and sealing between the engine block and crankshaft seal.

The engine block will not be leak proof at the outside of the crankshaft seal if you fail to comply with the individual work steps and the work sequence.

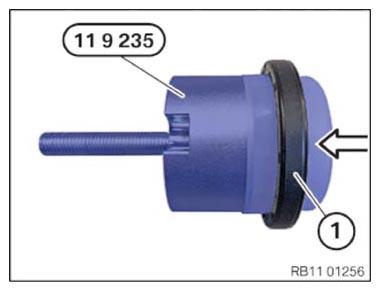

Push radial shaft seal (1) onto special tool 11 9 235 carefully in direction of arrow.

Fig 4: Pushing Radial Shaft Seal Onto Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

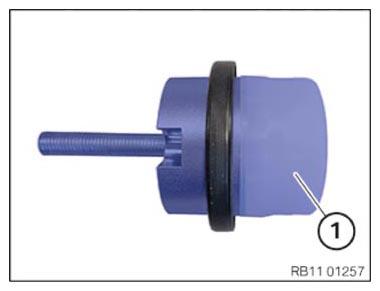

Remove support ring (1).

Fig 5: Identifying Support Ring

Courtesy of BMW OF NORTH AMERICA, INC.

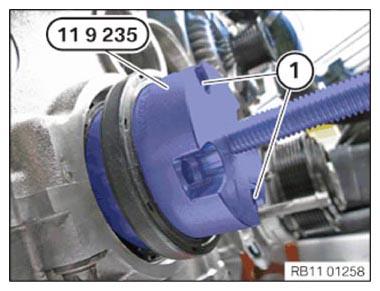

IMPORTANT: Special tool 11 9 235 can only be fastened with 2 opposite bolts.
Determine hole pattern on special tool.

Fasten special tool 11 9 235 onto crankshaft by 2 screws (1).

Fig 6: Installing Special Tool (11 9 235) Onto Crankshaft Using Screws

Courtesy of BMW OF NORTH AMERICA, INC.

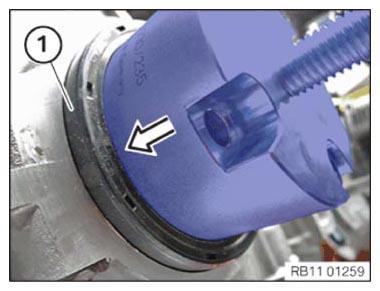

Position radial shaft seal (1) on crankcase in direction of arrow using special tool 11 9 235 .

Fig 7: Positioning Radial Shaft Seal On Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

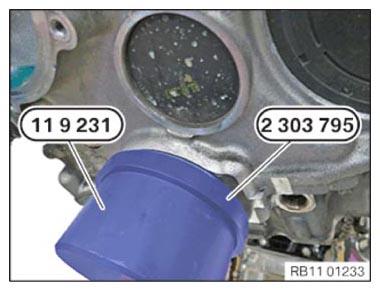

Insert radial shaft seal flush into crankcase with special tool 11 9 231 and 2 303 795 .

Fig 8: Inserting Radial Shaft Seal Flush Into Crankcase Using Special Tools (11 9 231)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
