11 23 010 Removing and installing/replacing vibration damper (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove UNDERBODY PROTECTION .
Remove DRIVE BELT .

NOTE: Gearbox removed:

Block crankshaft with special tool 11 9 260 .

NOTE: Illustration shows flywheel removal.

Fig 1: Blocking Crankshaft Using Special Tool (11 9 260)

G11165625

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with manual gearbox:

Block crankshaft with special tool 11 8 180 .

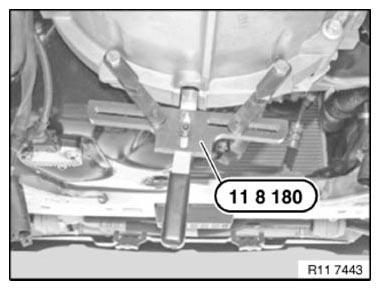

Fig 2: Blocking Crankshaft Using Special Tool (11 8 180)

G11165626

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with automatic transmission:

Block crankshaft with special tool 11 8 660 .

Fig 3: Blocking Crankshaft Using Special Tool (11 8 660)

G11165627

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not release central bolt.
If the central bolt is accidentally loosened, the timing must be readjusted.

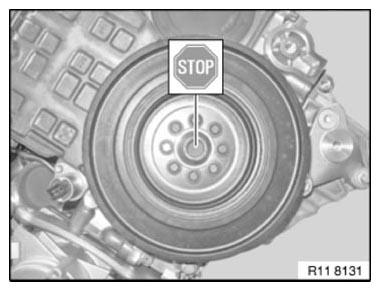

Fig 4: Caution For Removing Vibration Damper Central Bolt

G11165628

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 to 8).

Remove vibration damper (1).

Screws on vibration damper

Tightening torque 11 23 1AZ .

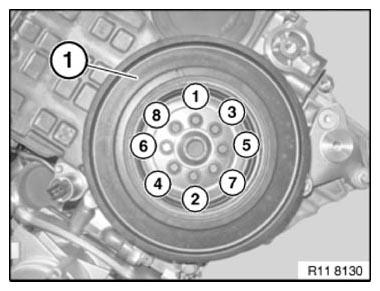

Fig 5: Vibration Damper Screws Removal Sequence

G11165629

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
