11 00 Mounting engine on assembly stand (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 300
11 8 541
11 8 542

IMPORTANT: Aluminium screws/bolts must be replaced each time they are released .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Remove ENGINE

Use special tool 11 8 541 to mount engine on special tool 00 2 300 .

Mount engine or engine block with special tool 11 8 542 on 11 8 541 .

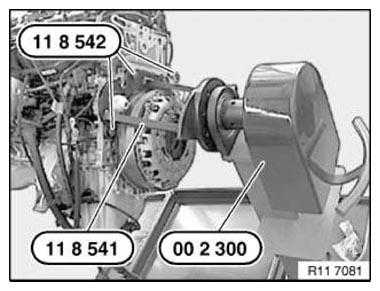

Fig 1: Mounting Engine Block Using Special Tools (11 8 542) And (11 8 541)

Courtesy of BMW OF NORTH AMERICA, INC.
