11 22 500 Removing and installing/replacing flywheel (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminium screws/bolts must be replaced each time they are released .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Remove TRANSMISSION

Automatic transmission:

Secure flywheel (1) with special tool 11 9 260 .

Unfasten flywheel bolts.

Tightening torque 11 22 1AZ .

Installation note:

Flywheel (1) is secured with an dowel pin.

Fig 1: Blocking Crankshaft Using Special Tool (11 9 260)

G11165447

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox:

Fasten dual-mass flywheel with special tool 11 9 260 and 11 9 265 .

Release flywheel bolts with special tool 11 4 180 /

Tightening torque 11 22 2AZ .

Installation note:

Fit new flywheel bolts.

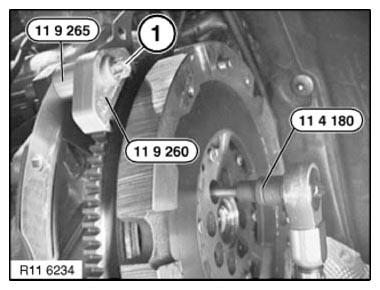

Fig 2: Removing Flywheel Bolts Using Special Tool (11 4 180)

G11165448

Courtesy of BMW OF NORTH AMERICA, INC.

Clean all threads for flywheel bolts in crankshaft.

Installation note:

Pay attention to dowel pin.

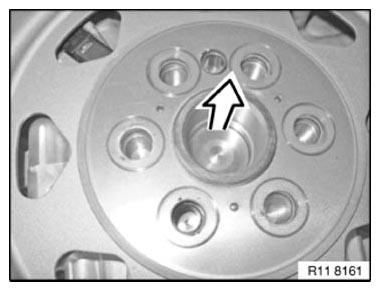

Fig 3: Removing Flywheel

G11165449

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure installed position of magnet wheel is correct.

Fig 4: Identifying Magnet Wheel

G11165450

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
