41 62 014 Adjusting Tailgate: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not damage adjoining body components.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Read relevant service information under BODY, GENERAL .

Observe BODY GAP DIMENSIONS .

The tailgate must be provided with all attachment parts for correct adjustment.

Version with automatic tailgate activation:

Deactivate automatic tailgate activation by DISCONNECTING PLUG CONNECTIONS on control unit.

IMPORTANT: Risk of damage to spindle drive: only move tailgate slowly by hand.
If necessary, REMOVE SPINDLE DRIVE

Necessary preliminary tasks:

Slacken nuts (1) and (2) until such stage that the tailgate can still be moved.

Adjust tailgate laterally and longitudinally.

Tightening torque 41 62 1AZ .

When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. If necessary, remove striker.

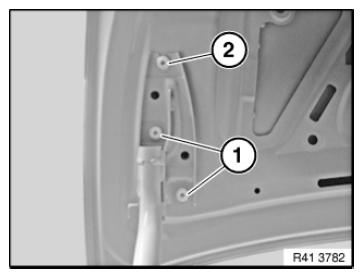

Fig 1: Identifying Tailgate Nuts
G08505741Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting height of tailgate in relation to side panel:

WARNING: Danger of injury!
Secure tailgate against dropping down.

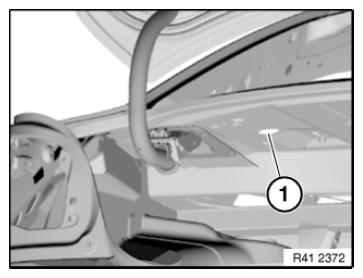

Fig 2: Identifying Opening
G08505742Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Parcel shelf is shown removed for purposes of clarity.

Slacken nut (1) with a suitable tool (SW13) until hinge can be moved.

Adjust height of tailgate.

Tightening torque 41 62 3AZ .

Adjust TAILGATE CATCH .

Adjust STOP PAD .

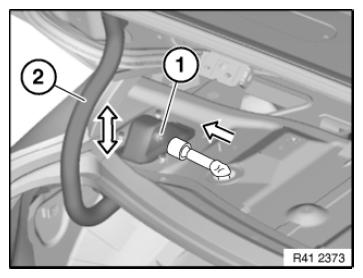

Fig 3: Adjusting Tailgate Catch And Stop Pad
G08505743Courtesy of BMW OF NORTH AMERICA, INC.
