51 24 004 Adjusting rear lid lock

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR REAR LID

Prerequisite:

Tailgate must be correctly adjusted to fit; if necessary, ADJUST TAILGATE .

For ideal setting, refer to BODY GAP DIMENSIONS .

Depending on version, press in or screw in bump stop (1) on tailgate on left and right completely.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

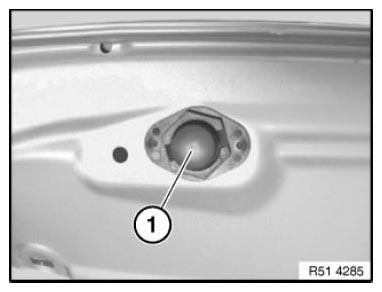

Fig 1: Identifying Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out protective cap (1).

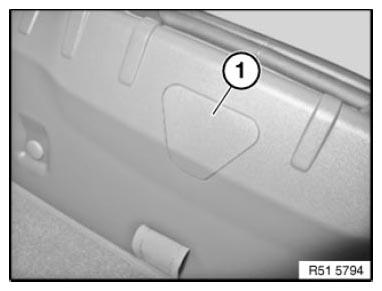

Fig 2: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws until striker (1) can still just be moved and centers itself.

IMPORTANT: Striker (1) must not brush against tailgate lock.

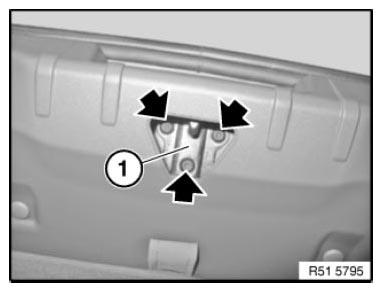

Fig 3: Locating Striker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Close tailgate.

Check BODY GAP DIMENSIONS and locking comfort.

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Open tailgate.

Tighten down screws.

Tightening torque 51 24 03AZ .

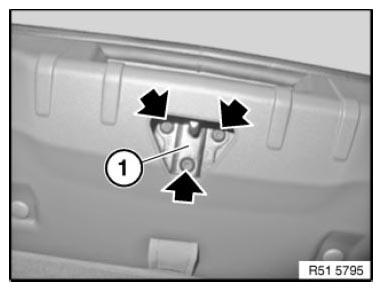

Fig 4: Locating Striker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bump stops (1) on tailgate.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

Fig 5: Identifying Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Version with reversing camera:

After adjusting, check reversing camera and if necessary RECALIBRATE .
