41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

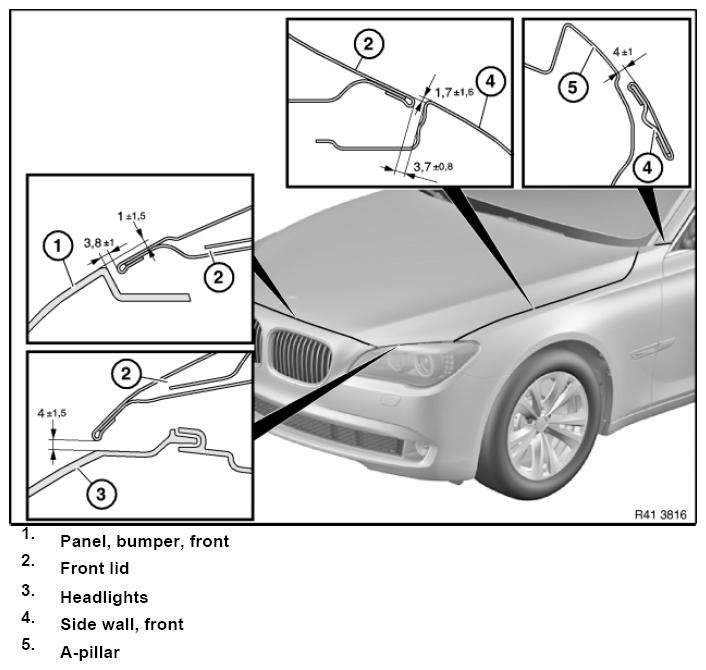

Fig 1: Front Bumper, Hood, Headlamp, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

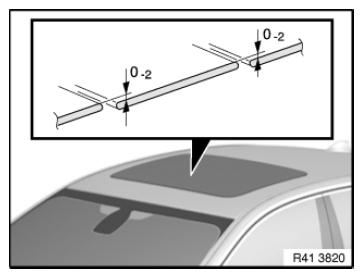

Fig 2: Roof And Moonroof Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

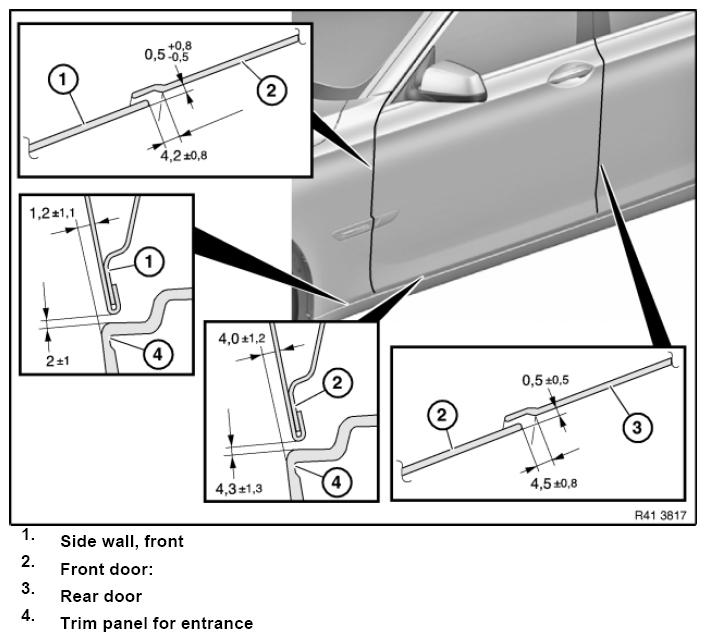

Fig 3: Front Fender, Front Door, Rear Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

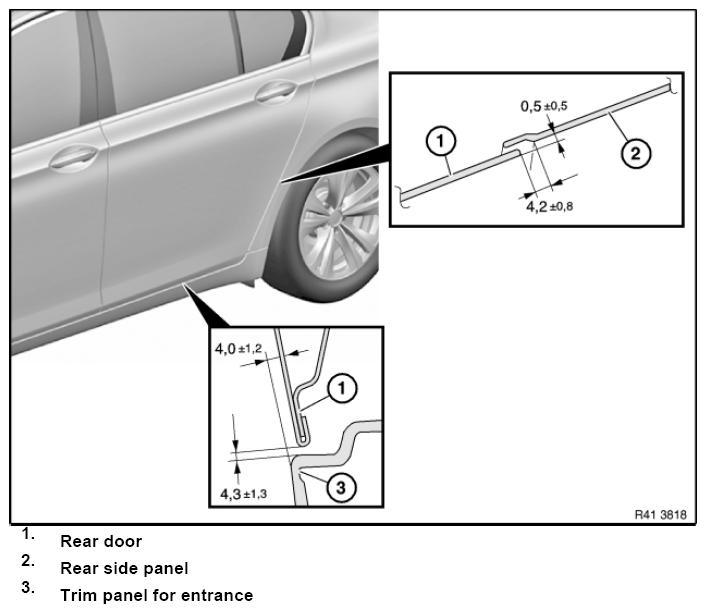

Fig 4: Rear Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

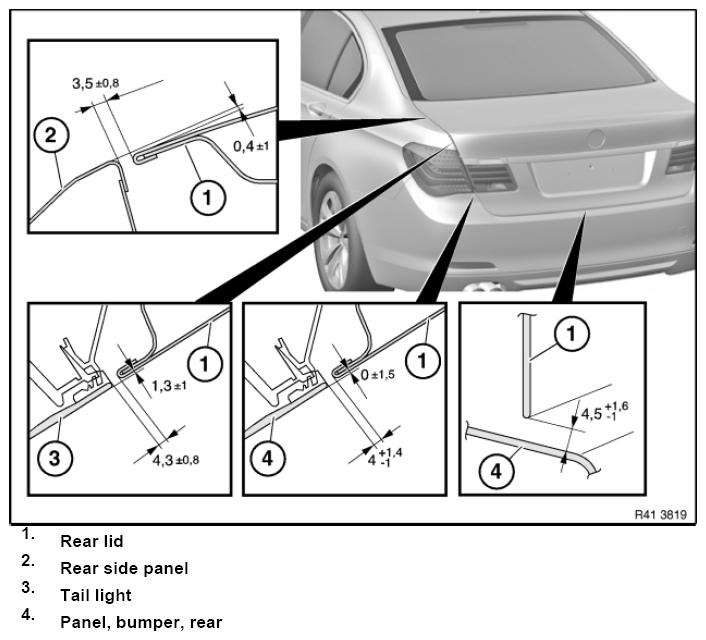

Fig 5: Trunk Lid, Quarter Panel, Taillamp, And Rear Bumper Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
