51 24 325 Removing and installing/replacing left tension spring for rear lid

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL on left

WARNING: Support tailgate in fully opened position with suitable apparatus.
Danger of injury!

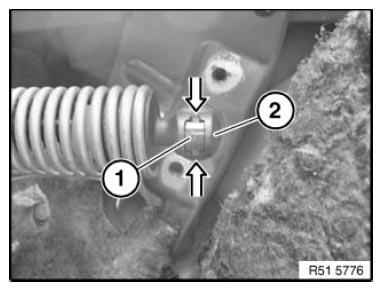

Press retainer (1) together.

Ball socket (2) jumps out of ball stud.

WARNING: The tailgate will drop down if it is not supported.

Fig 1: Pressing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

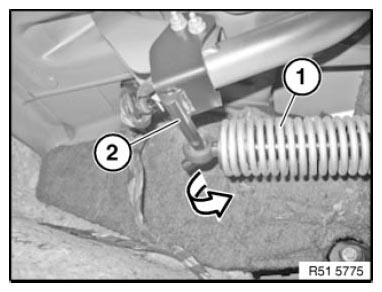

Unhook tension spring with damper (1) from tailgate hinge (2).

Fig 2: Removing Tension Spring With Damper From Tailgate Hinge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

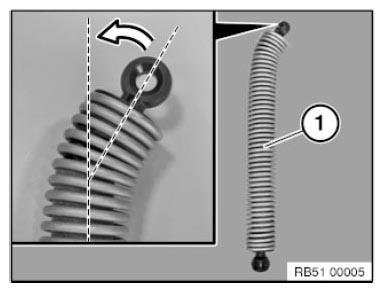

If the removed tension spring (1) is going to be installed again, the tension spring (1) may need to be bent into its original condition by hand.

Fig 3: Identifying Tension Spring Bend Condition

Courtesy of BMW OF NORTH AMERICA, INC.

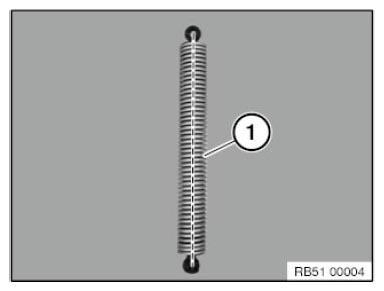

Picture shows tension spring (1) in original condition.

Fig 4: Identifying Tension Spring

Courtesy of BMW OF NORTH AMERICA, INC.
