52 13 025 Removing and installing/replacing left or right seat mechanism

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. See 52 13 000 Removing And Installing Left Or Right Front Seat .
Remove rear panel on front seat backrest. See 52 13 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest .
Remove backrest frame on front seat. See 52 13 030 Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat .
Remove seat cover for front seat. See 52 13 400 Replacing Cover For Left Or Right Front Seat .
Remove seat pan and flexmat on front seat. See 52 13... Replacing Seat Pan And Flexmat On Left Or Right Front Seat .

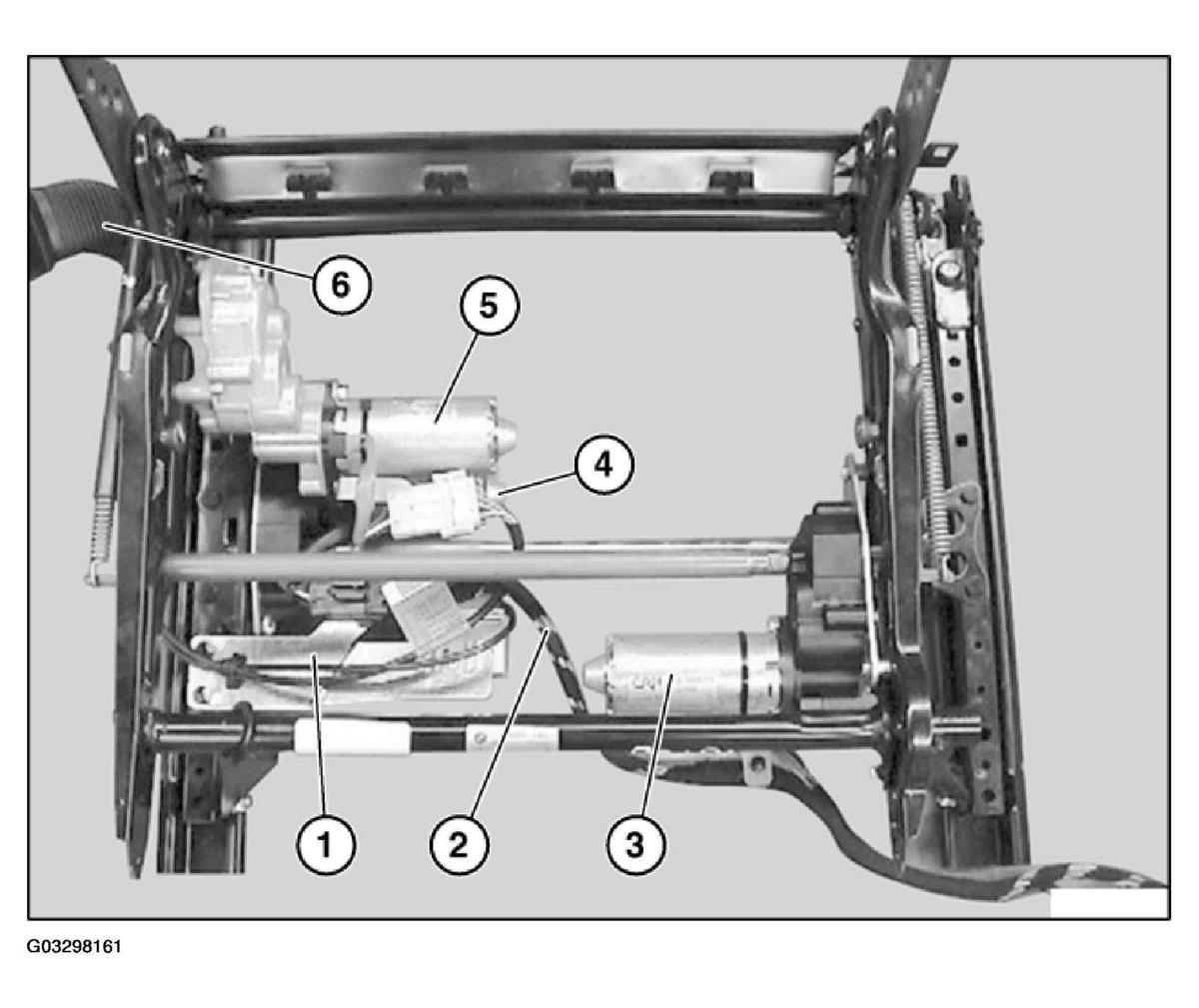

Fig 1: Identifying Electric Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining bracket (1).

Remove seat wiring harness (2).

Remove seat belt tensioner(6).

Electric seat adjustment optional extra:

Remove drive (3) for seat back angle adjustment.

Remove drive (4) for longitudinal seat adjustment.

Remove drive (5) for seat height adjustment
