52 13 030 Removing and installing/replacing backrest frame on left or right front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat . See 52 13 000 Removing And Installing Left Or Right Front Seat .
Remove rear panel on front seat backrest. See 52 13 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest .
If necessary, remove head restraint. See 52 13 390 Removing And Installing Or Replacing Front Left Or Right Headrest .

Detach seat cover (1) on left/right. See 52 13 400 Replacing Cover For Left Or Right Front Seat .

Release screw (2) on left/right.

Tightening torque, see 52 10 2AZ in SEATS - TIGHTENING TORQUES .

Remove backrest frame (3) completely towards top.

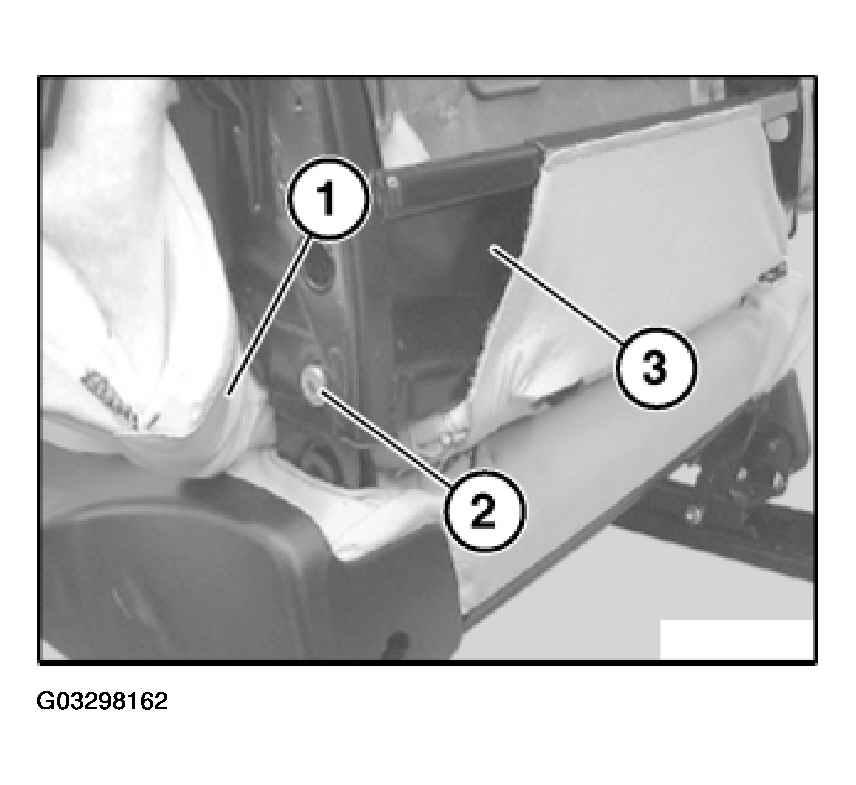

Fig 1: Removing Backrest Frame Completely Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove backrest cover. See 52 13 405 Replacing Backrest Cover For Left Or Right Front Seat .
