52 13 198 Removing and installing/replacing rear panel on left or right front seat backrest

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. . See 52 13 000 Removing And Installing Left Or Right Front Seat .

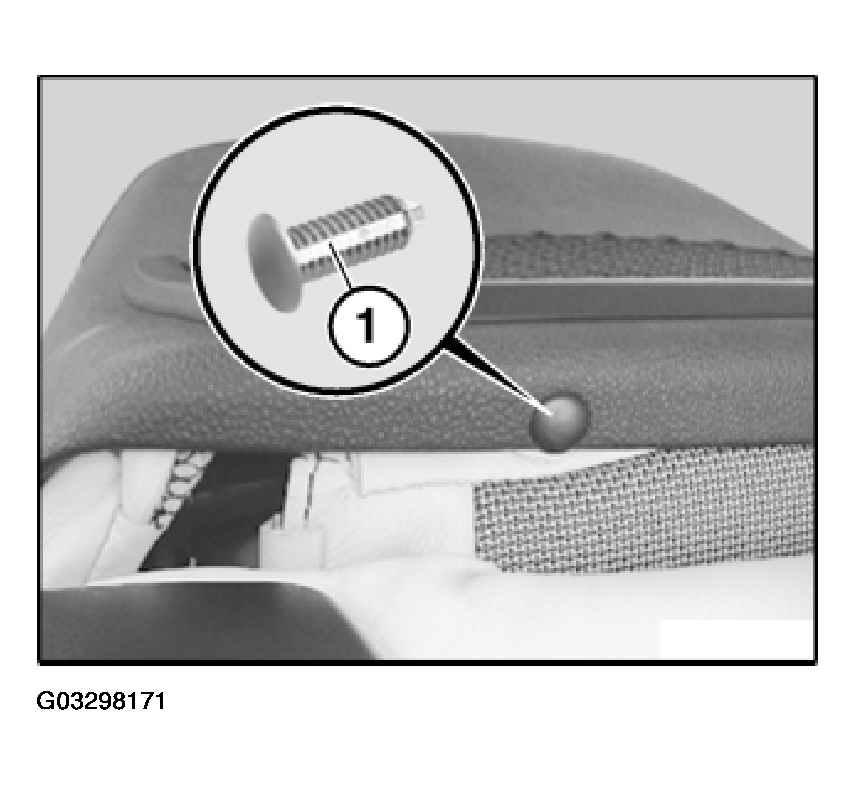

Release clip (1) on left/right.

Fig 1: Releasing Clip On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

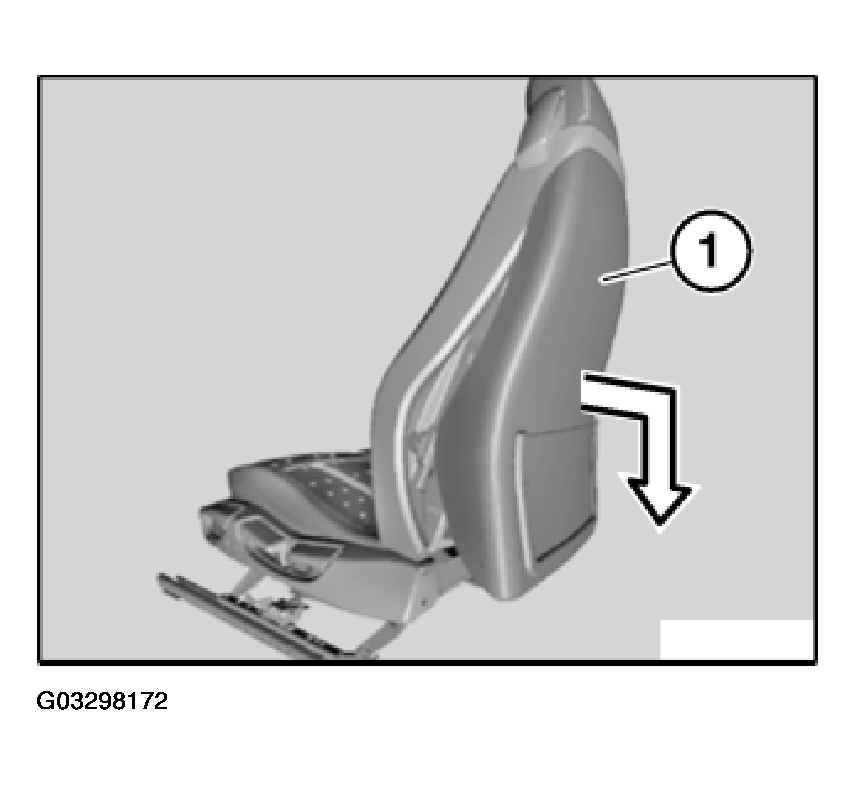

Remove rear panel (1) towards bottom.

Fig 2: Removing Rear Panel Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.
