52 13 000 Removing and installing left or right front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety regulations for handling airbag modules and pyrotechnical seatbelt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Switch off ignition!

Necessary preliminary tasks:

If necessary, remove head restraint. 52 13 390 Removing And Installing Or Replacing Front Left Or Right Headrest

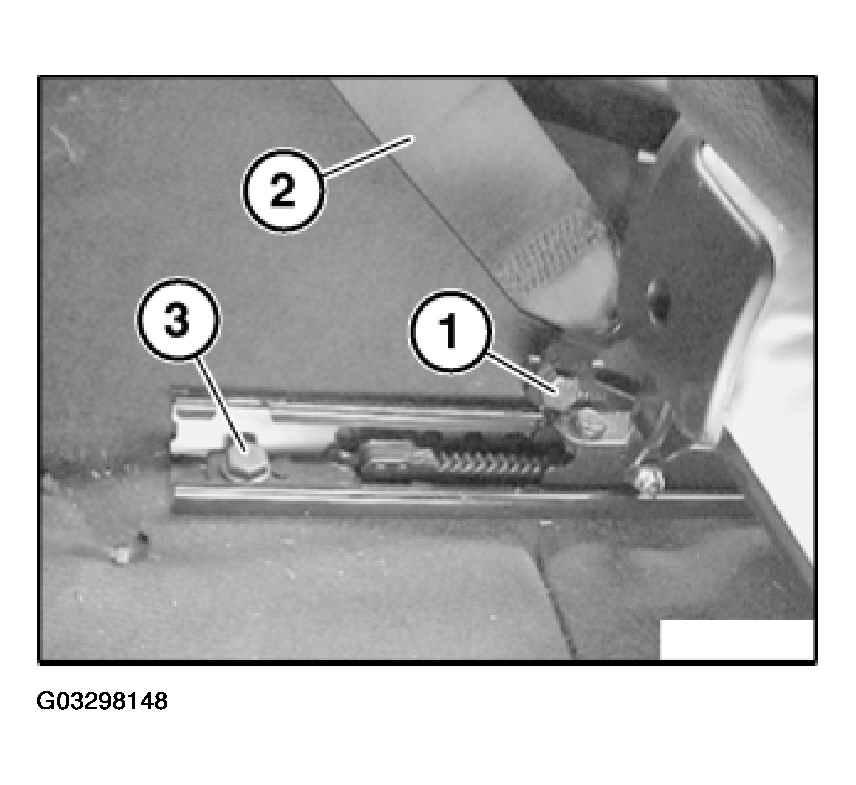

Release screw (1) and remove seat belt (2).

Release screw (3) on left/right.

Tightening torque, see 52 10 1AZ in SEATS - TIGHTENING TORQUES .

Move front seat as far back as possible.

Fig 1: Removing Seat Belt

Courtesy of BMW OF NORTH AMERICA, INC.

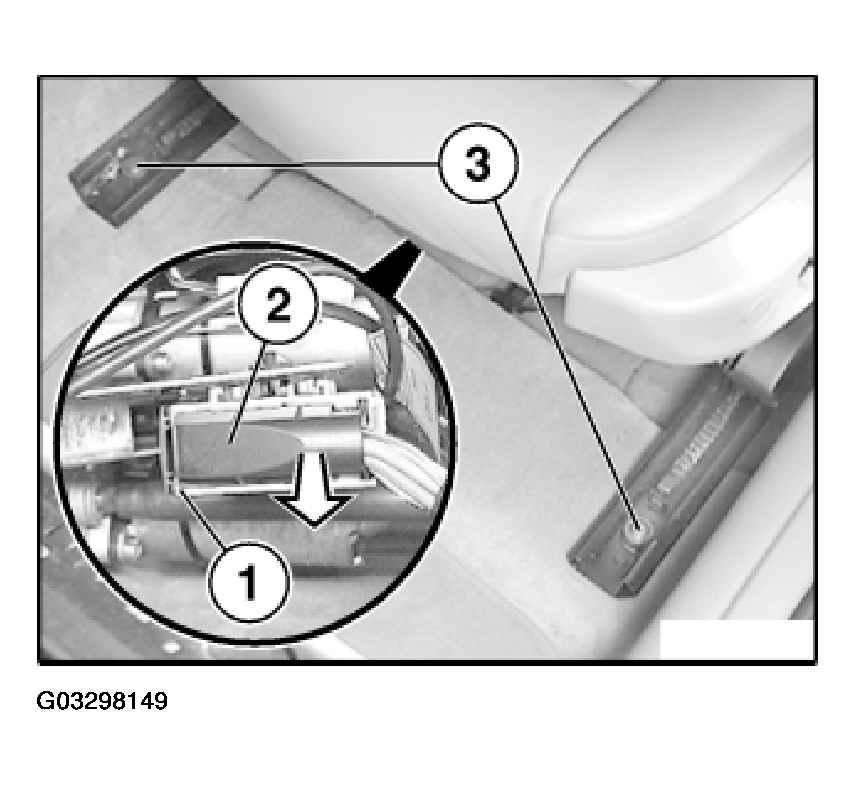

Release nuts (3).

Installation:

Replace nuts.

Tightening torque, see 52 10 1AZ in SEATS - TIGHTENING TORQUES .

Release lock (1), disconnect plug connection (2).

Carefully lift out front seat (risk of damage).

Installation:

Floor carpet must not enter area between seat rails and floor panel beside screw points (grating noises).

Fig 2: Releasing Lock Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
