52 13... Replacing seat pan and flexmat on left or right front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. . See 52 13 000 Removing And Installing Left Or Right Front Seat .
Remove rear panel on front seat backrest. 52 13 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest
Remove backrest frame on front seat.See 52 13 030 Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat .
Remove seat cover for front seat. See 52 13 400 Replacing Cover For Left Or Right Front Seat .

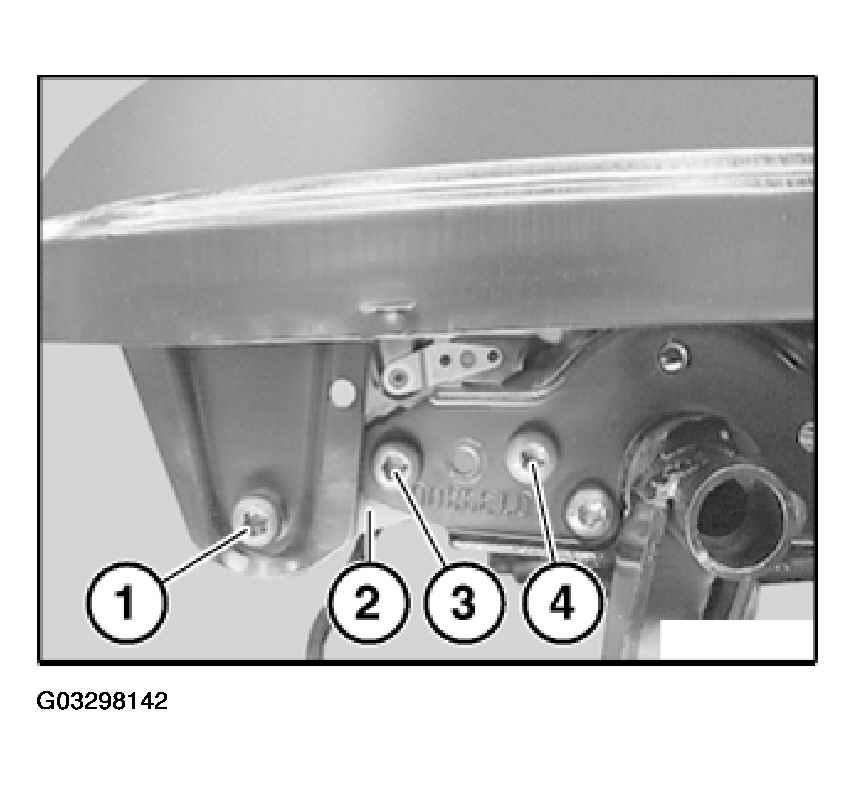

Release screw (1) on left.

Release screw (1) on right.

Release screw (3) on left/right.

Slacken screw (4) on left/right.

Detach retaining plate (2) towards bottom.

Tightening torque, see 52 10 9AZ in SEATS - TIGHTENING TORQUES .

Fig 1: Detaching Retaining Plate Towards Bottom

G03298142

Courtesy of BMW OF NORTH AMERICA, INC.

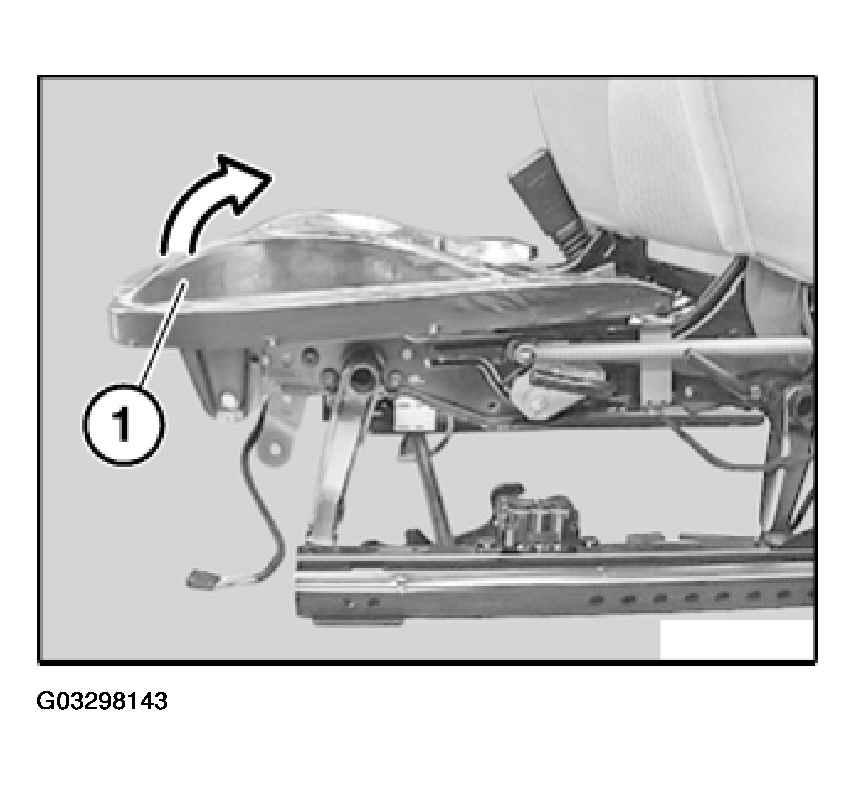

Raise seat pan (1) (relieving tension on flexmat).

Fig 2: Raising Seat Pan

G03298143

Courtesy of BMW OF NORTH AMERICA, INC.

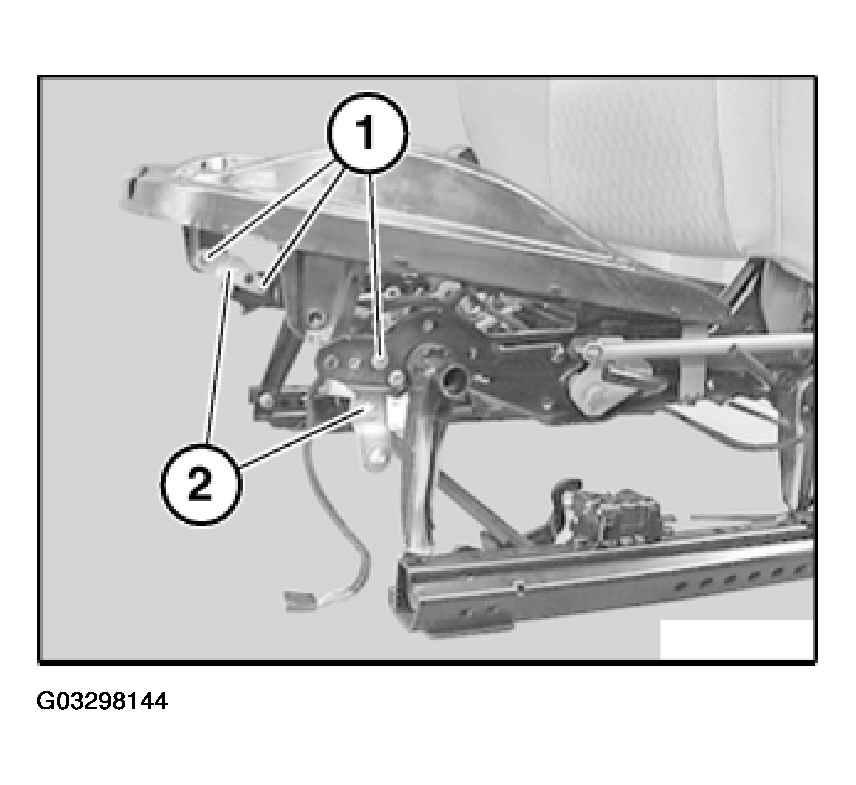

Release screws (1), remove retaining plates (2).

If necessary, detach wiring harnesses.

Fig 3: Removing Retaining Plates

G03298144

Courtesy of BMW OF NORTH AMERICA, INC.

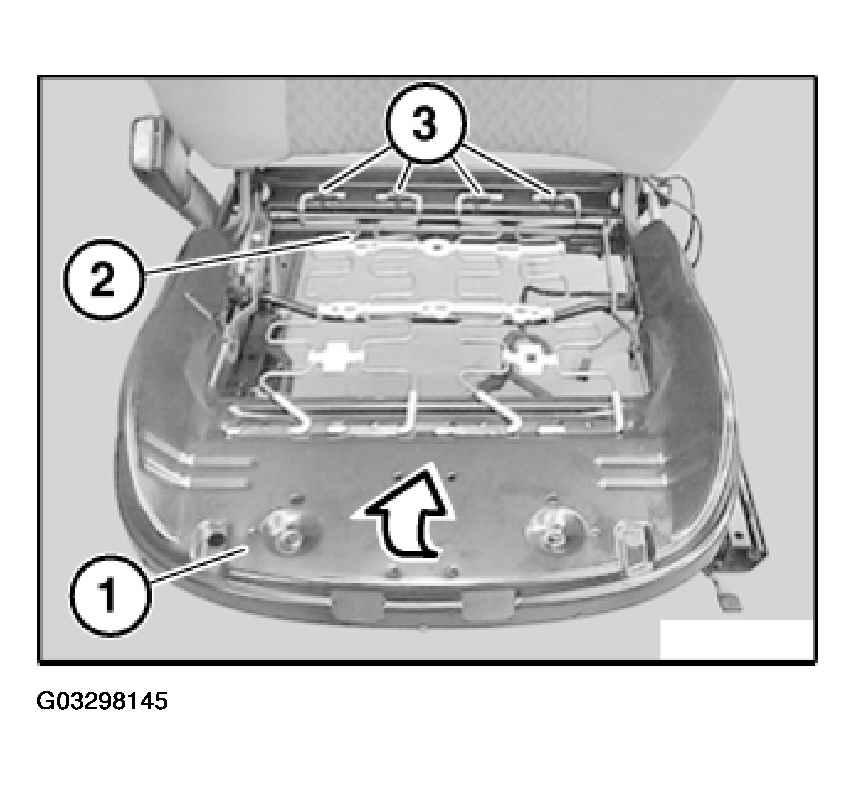

Raise seat pan (1), detach flexmat (2) from mountings (3).

Fig 4: Detaching Flexmat From Mountings

G03298145

Courtesy of BMW OF NORTH AMERICA, INC.

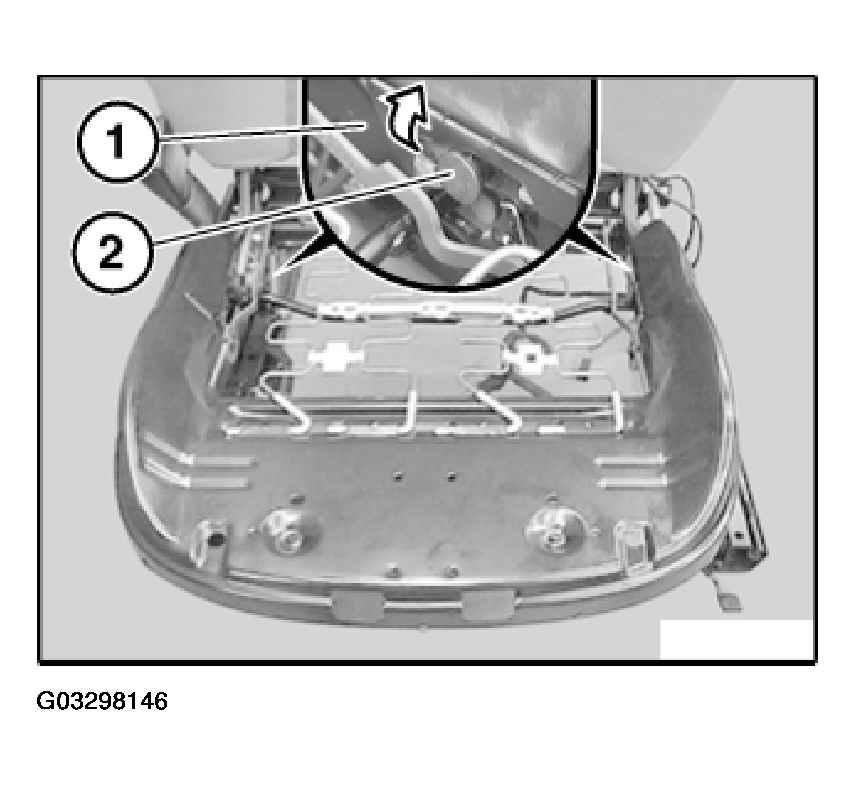

Detach seat pan (1) on left/right from mounting (2).

Fig 5: Detaching Seat Pan On Left/Right From Mounting

G03298146

Courtesy of BMW OF NORTH AMERICA, INC.

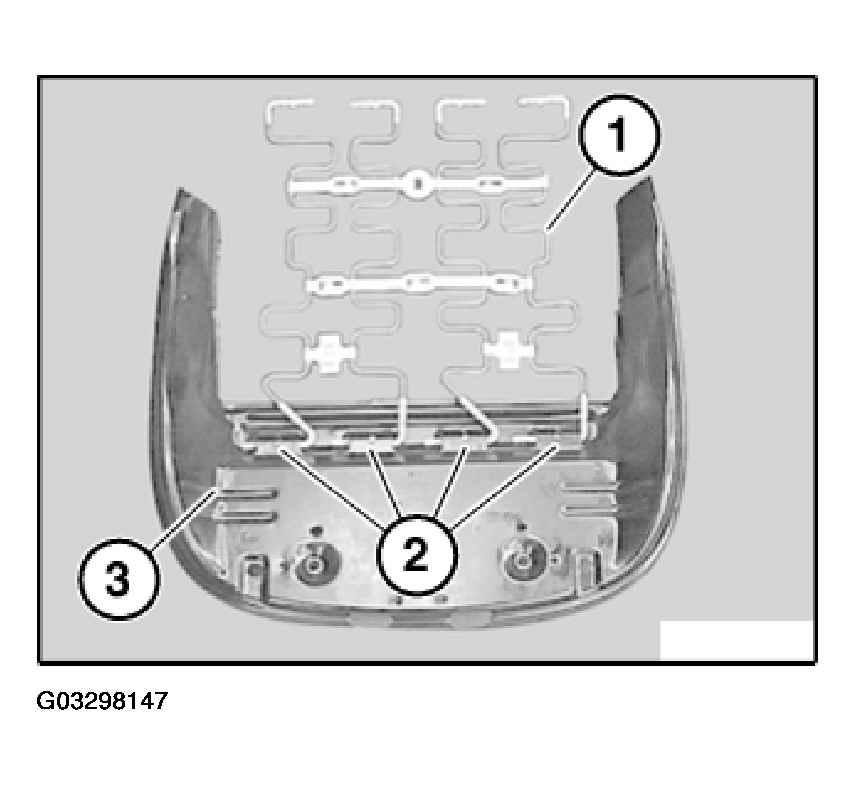

Detach flexmat (1) from mountings (2) of seat pan (3).

Fig 6: Detaching Flexmat From Mountings Of Seat Pan

G03298147

Courtesy of BMW OF NORTH AMERICA, INC.
