51 16 200 Removing and installing storage tray

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 318

Necessary preliminary tasks:

Remove Panel For Rear Storage Box .
Remove Handbrake Lever Cover .
Remove Trim For Preselector Lever (gearshift lever).
Remove driving dynamics switch. See 61 31 287 REMOVING AND INSTALLING/REPLACING DRIVING DYNAMICS SWITCH .
Remove display for passenger airbag deactivation. See 61 31 069 REMOVING AND INSTALLING/REPLACING INDICATOR FOR FRONT PASSENGER AIRBAG DEACTIVATION .
Remove switch unit in center console. See 61 31 057 REMOVING AND INSTALLING/REPLACING SWITCH IN CENTER CONSOLE .

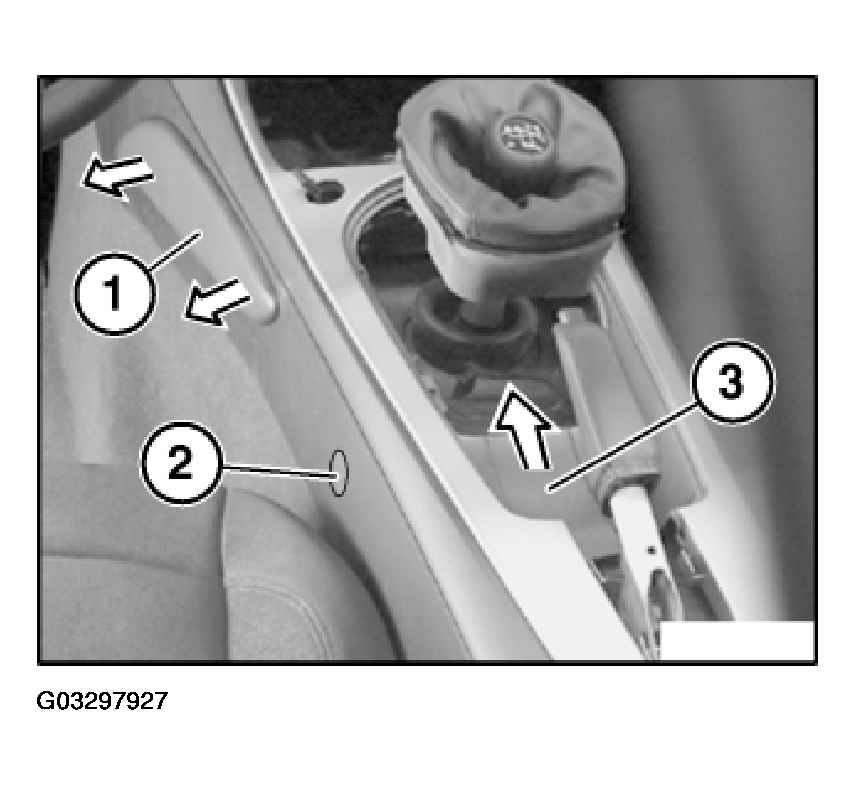

Lever out trim (1) with special tool 00 9 318 (universal wedge) on both sides.

Release cap (2) on left/right.

Slide cover (3) in direction of arrow and remove.

Fig 1: Sliding Cover In Direction Of Arrow

G03297927

Courtesy of BMW OF NORTH AMERICA, INC.

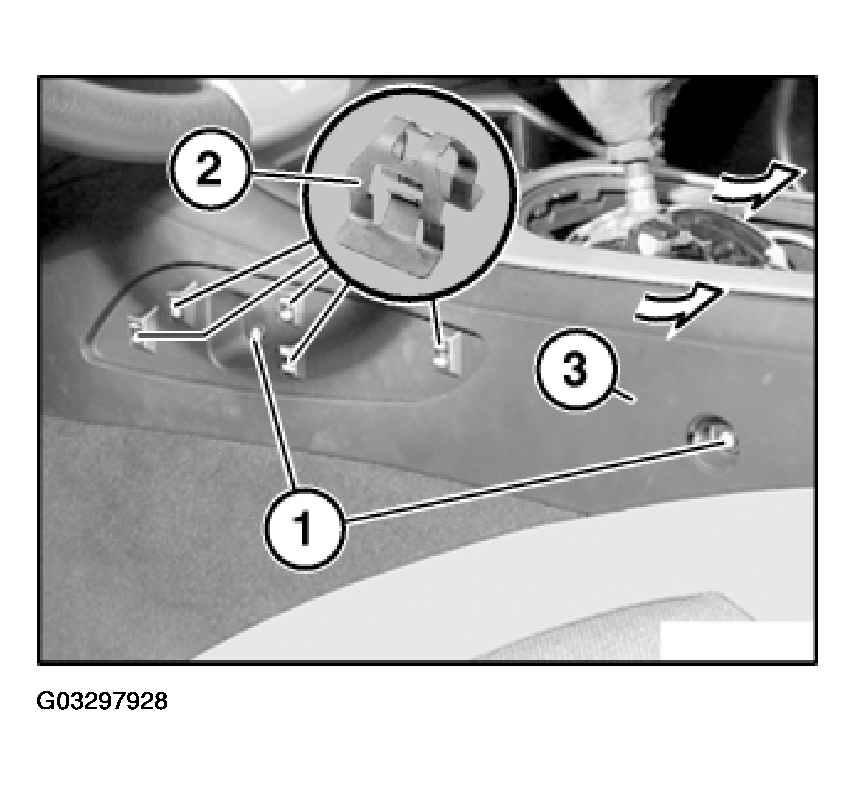

Release screws (1) on left/right.

Remove center console (3); to do so, lift rear end and at same time pull towards rear and feed out from handbrake lever.

Installation:

Clips (2) must not be missing or damaged.

Fig 2: Removing Center Console

G03297928

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

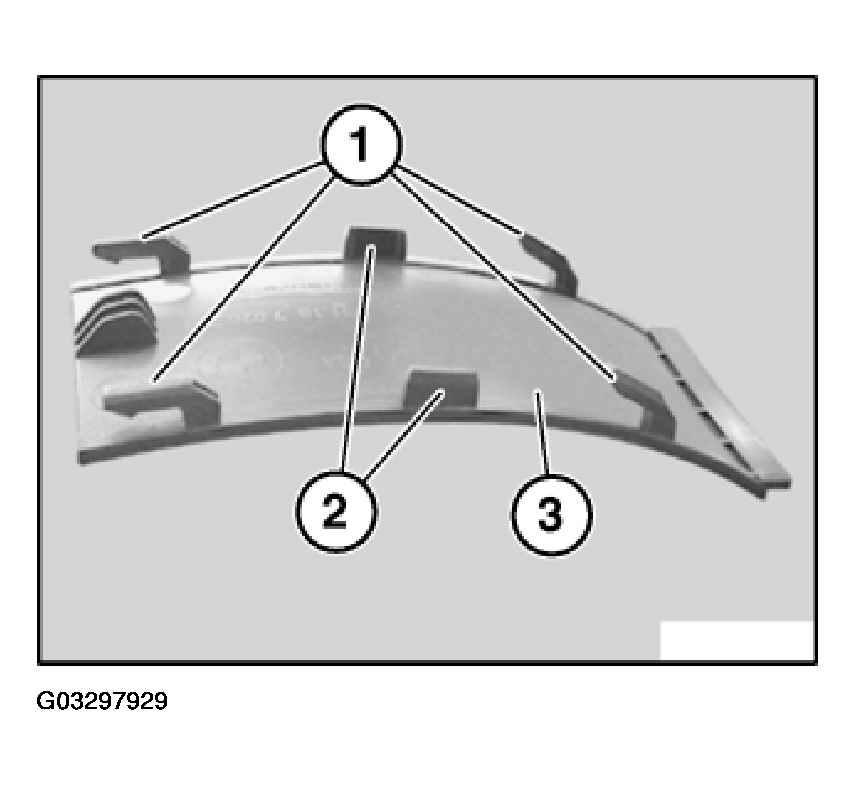

Following parts of cover (3) must not be damaged or missing:

Guides (2)
Retaining lugs (1)

Fig 3: Identifying Guides And Retaining Lugs Of Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

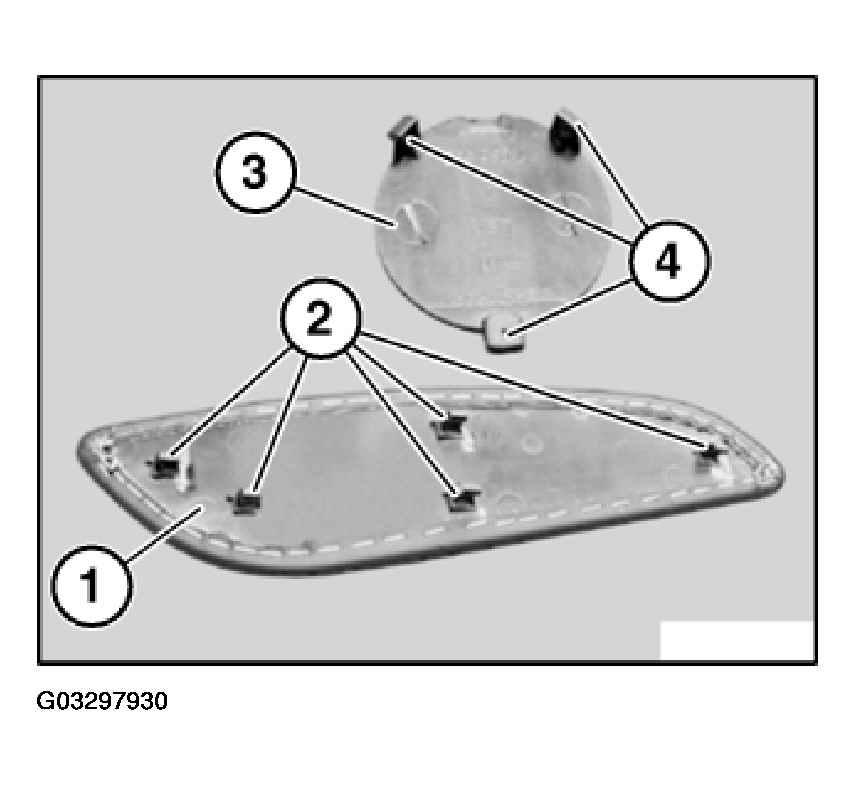

Retaining lugs (2 and 4) of trim (1) and of cap (3) must not be damaged or missing.

Fig 4: Checking Retaining Lugs Of Trim And Cap

G03297930

Courtesy of BMW OF NORTH AMERICA, INC.
