61 31 057 Removing and installing/replacing switch unit in center console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Open cover (1).

Remove ashtray insert (2) in direction of arrow from center console function carrier (3).

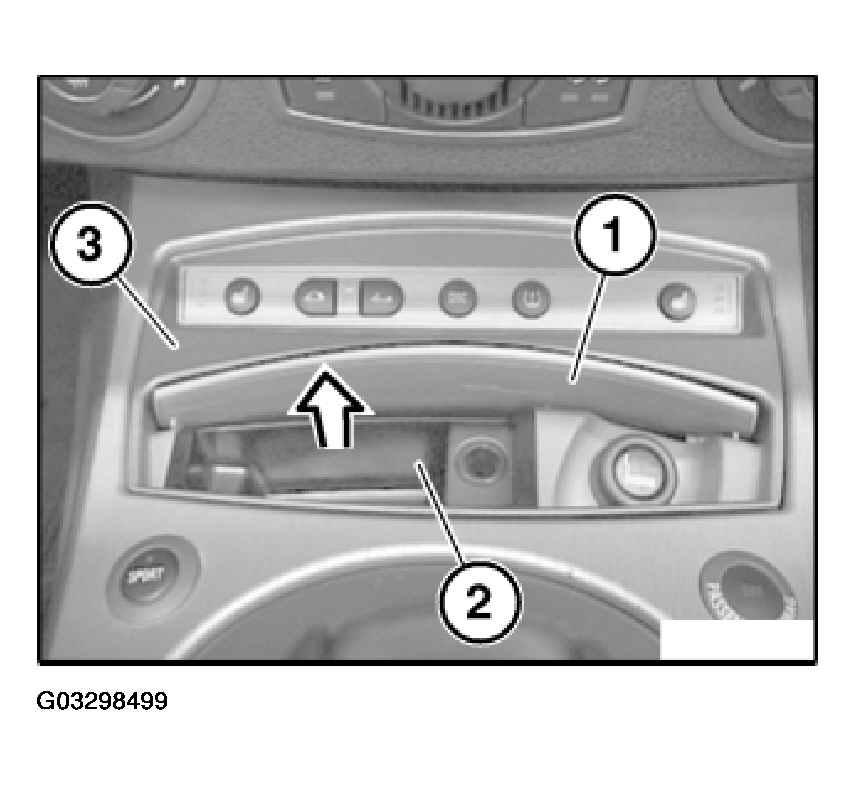

Fig 1: 61 31 057 Removing And Installing/Replacing Switch Unit In Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Unclip side guides (2) and raise center console function carrier (3).

Feed center console function carrier (3) out of front guides (5) and pull back a little.

Unlock associated plug connections, disconnect and remove center console function carrier (3) from center console (4).

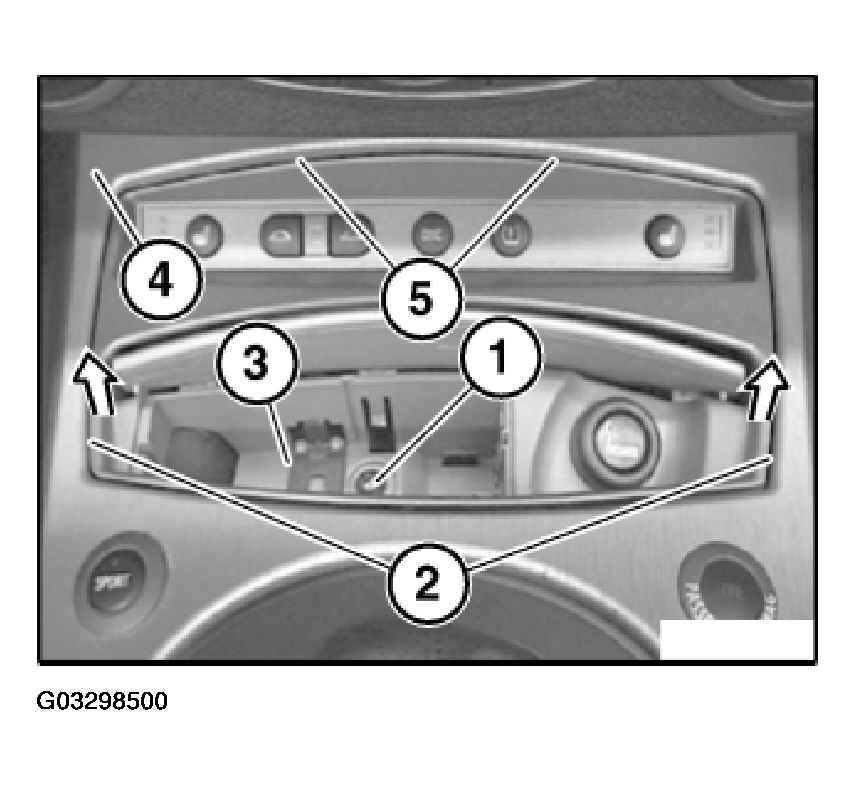

Fig 2: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure front guides (1) of center console function carrier (3) are correctly seated.

Make sure side guides (2) of center console function carrier (3) snap into place correctly.

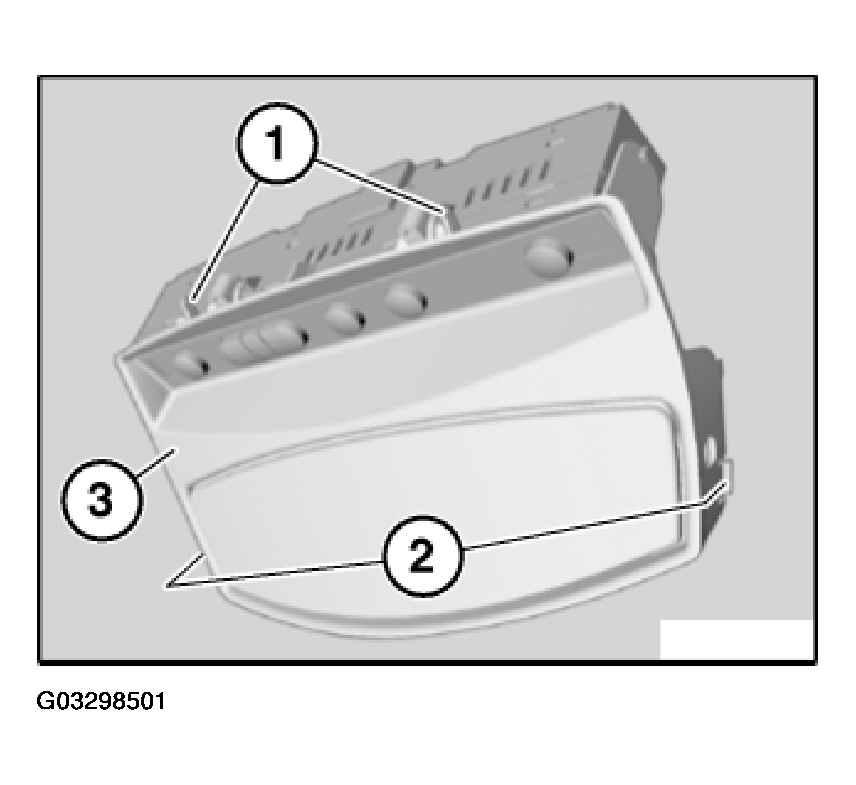

Fig 3: Installing Side Guides Of Center Console Function Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unlock plug (1) and unclip in direction of arrow from center console switch unit (4).

Release screws (3) and remove switch unit on center console (4) in direction of arrow from center console function carrier (2).

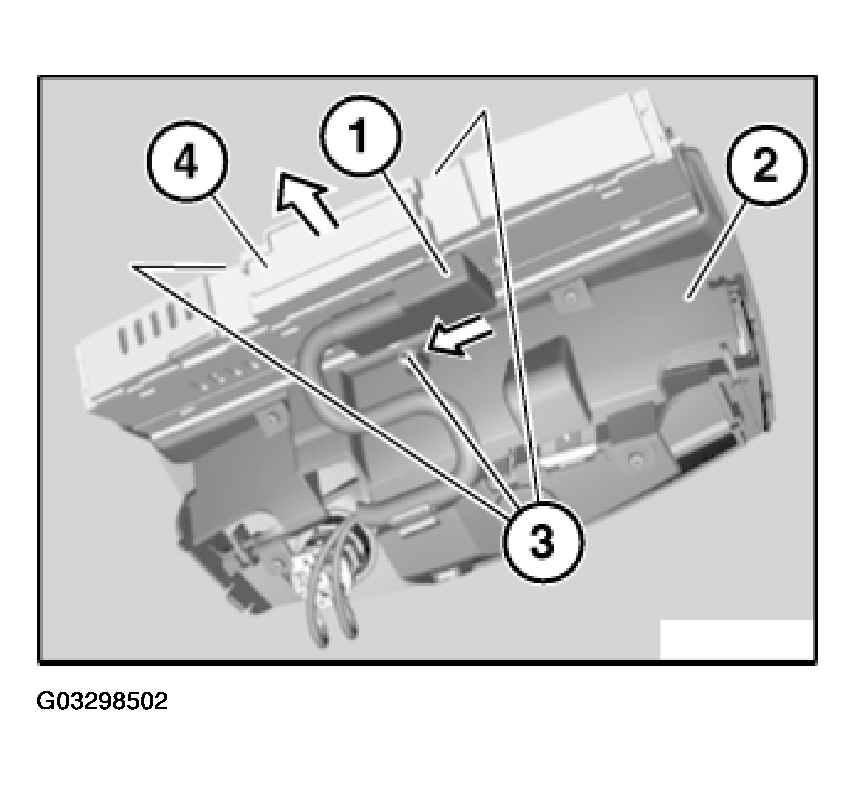

Fig 4: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.
