61 31 069 Removing and installing/replacing indicator for front passenger airbag deactivation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim for preselector lever. See 51 16 210 REMOVING AND INSTALLING/REPLACING TRIM FOR PRESELECTOR LEVER .

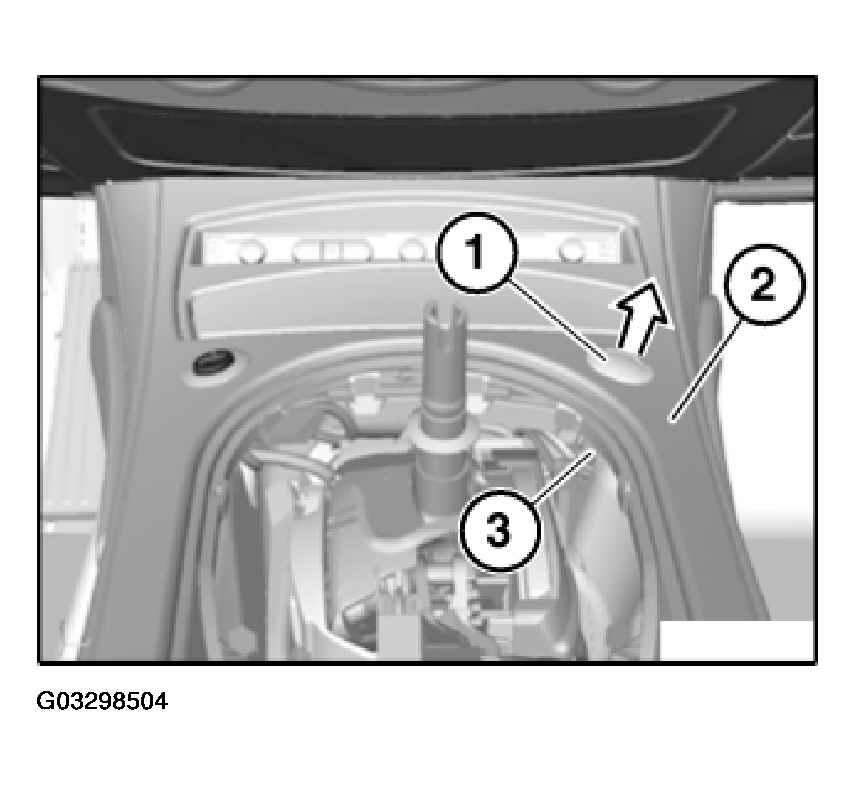

Press indicator for front passenger airbag deactivation (1) in direction of arrow out of center console (2).
Disconnect plug connection (3) and remove indicator for front passenger airbag deactivation (1).
