51 16... Removing and installing/replacing handbrake lever cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Necessary preliminary tasks:

Apply parking brake.

NOTE: Operations for removing handbrake lever cover and armrest are virtually identical. Differences can be seen in the notes on installation.
The illustrations show the removal of the trim for the preselector lever in versions with automatic transmissions.

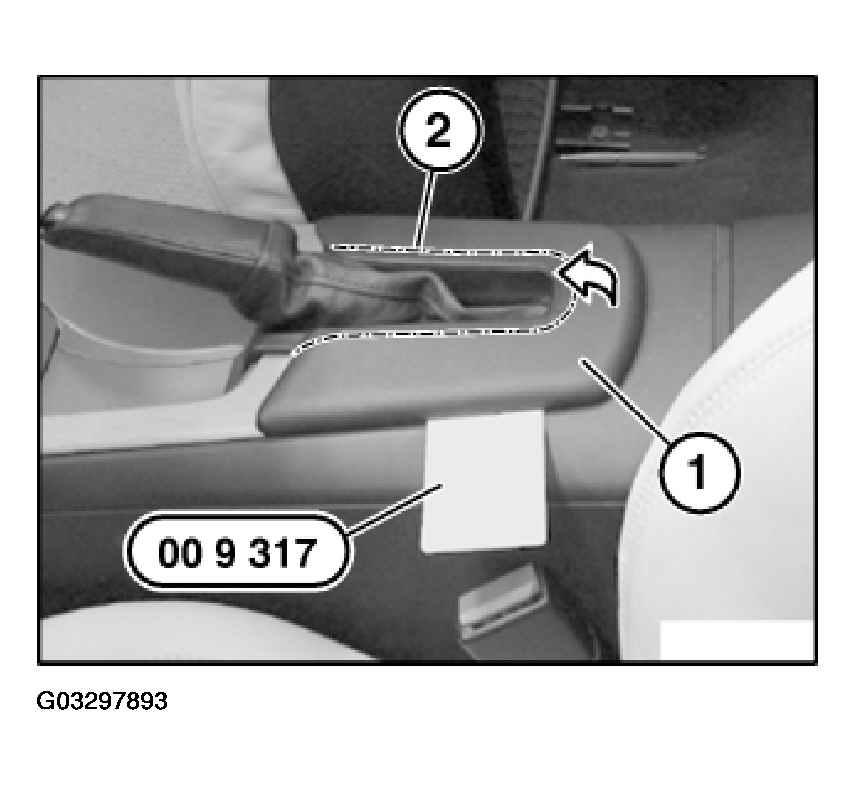

Provisionally fit special tool 00 9 341 as illustrated.

Unclip handbrake lever cover (2) or armrest in direction of arrow.

Force leather sleeve over handbrake handle.

Disconnect cable band for securing handbrake handle.

Remove handbrake lever cover (2) or armrest (1).

Fig 1: Removing Handbrake Lever Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

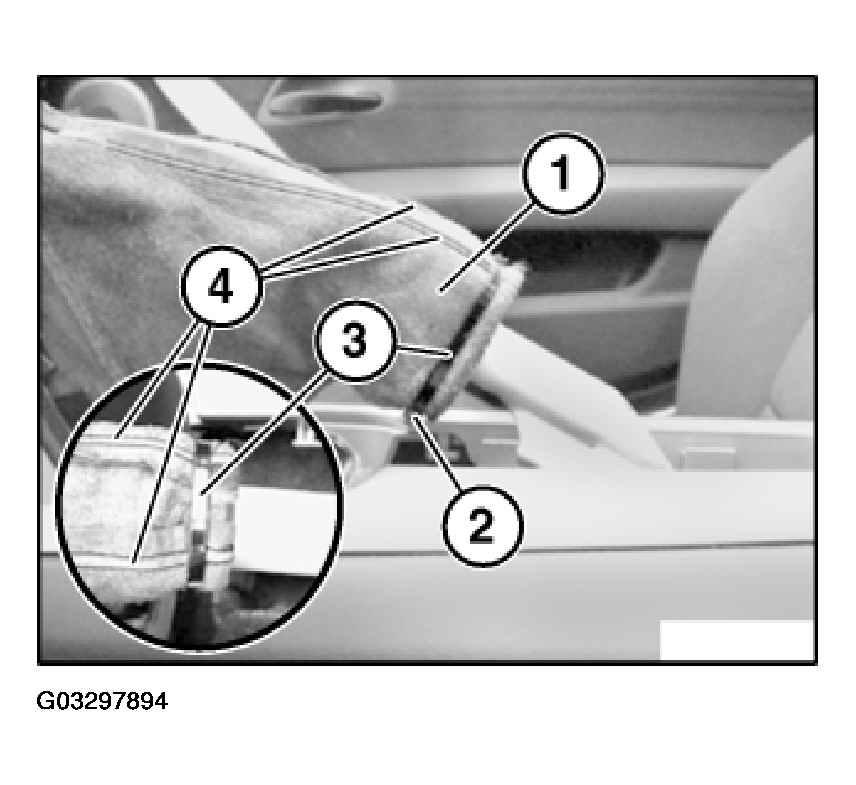

Pull leather sleeve (1) over brake lever handle until both ends are simultaneously flush. Check that seams (4) are correctly seated.

Tighten down cable band (3).

Cable band fastener must be at lower point (2).

Cut off cable band protrusion.

Fig 2: Pulling Leather Sleeve Over Brake Lever Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

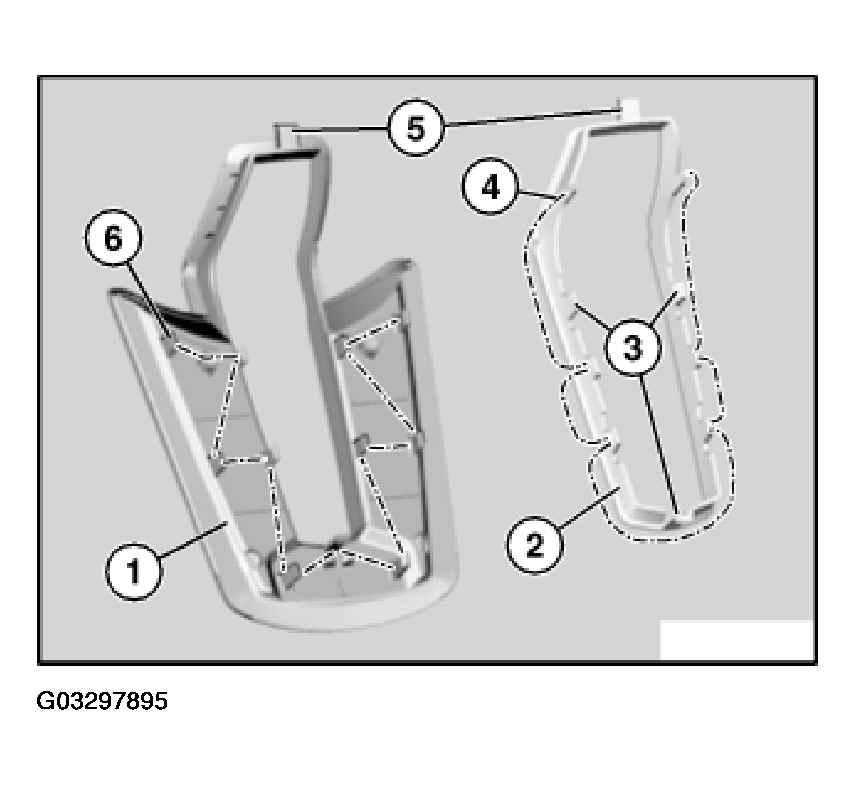

Following parts of handbrake lever cover (2) and armrest (1) must not be damaged or missing:

Front retaining lug (5)
Retaining lugs along line (4 or 3)
Guides (3) of handbrake lever cover (2)

Fig 3: Identifying Guide Of Handbrake Lever Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

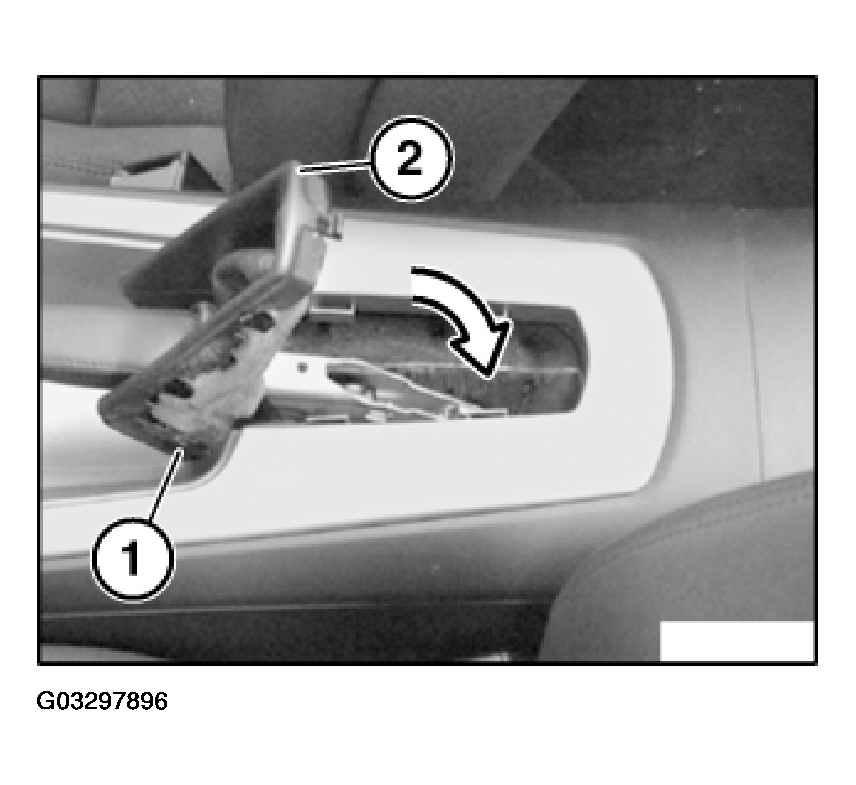

Hook in retaining lug at front and secure handbrake lever cover (2) or armrest.

Fig 4: Hooking Retaining Lug At Front

Courtesy of BMW OF NORTH AMERICA, INC.
