51 16 235 Removing and installing panel for rear storage box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Lid On Rear Storage Box .
Remove Cover On Panel For Rear Storage Box .

Version with telephone:

If necessary, remove emergency call button. See 61 31 176 REMOVING AND INSTALLING/REPLACING EMERGENCY BUTTON .

Detach cable (2) from mount (1) and feed out from guide (3).

Disconnect plug connection (4).

Release screws (5).

Installation:

Tightening torque, see 54 31 1AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENing TORQUE .

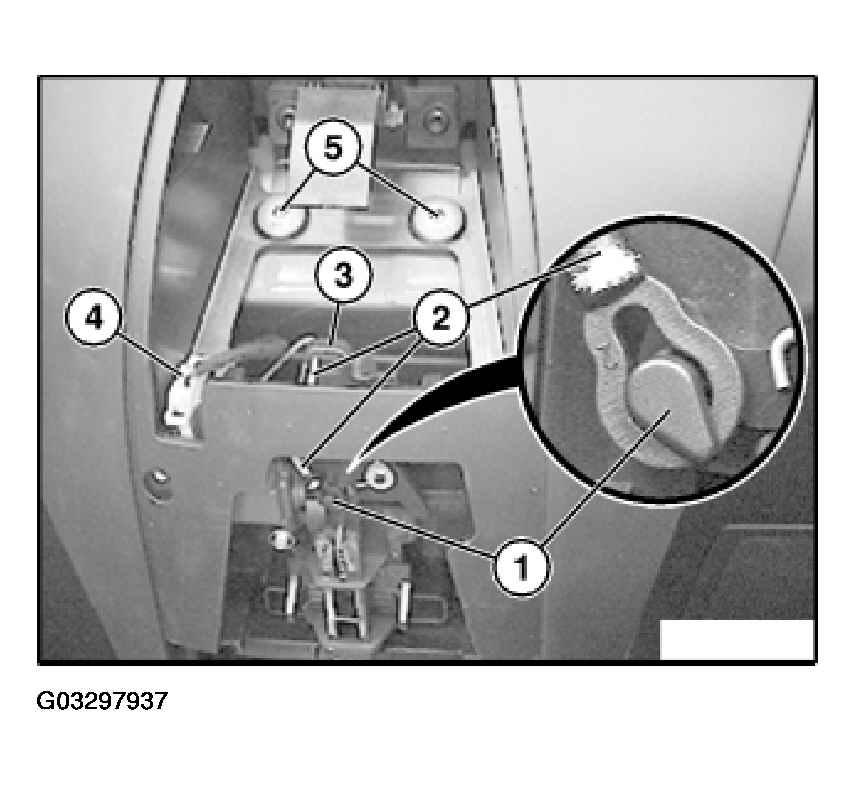

Fig 1: Detaching Cable From Mount

G03297937

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) and release screws underneath.

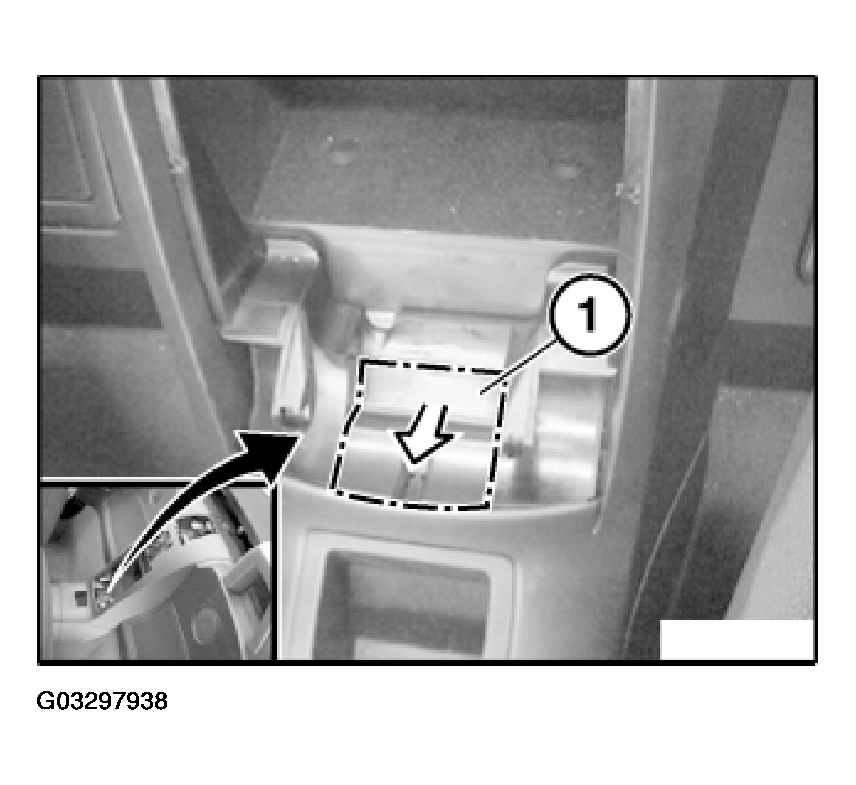

Fig 2: Levering Out Cover

G03297938

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 2) on cover (3) must not be damaged.

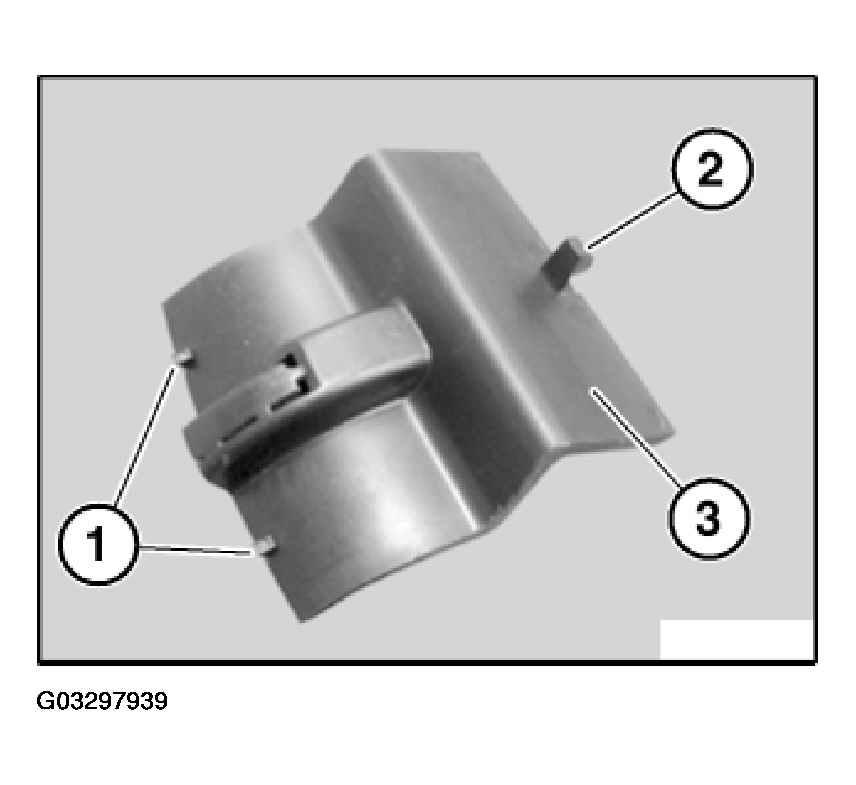

Fig 3: Identifying Catches On Cover

G03297939

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out plugs (2) on left/right and release screws underneath.

If necessary, disconnect plug connection for microswitch (3).

Lever out catches (4) towards top and remove panel (1) for storage box in direction of arrow.

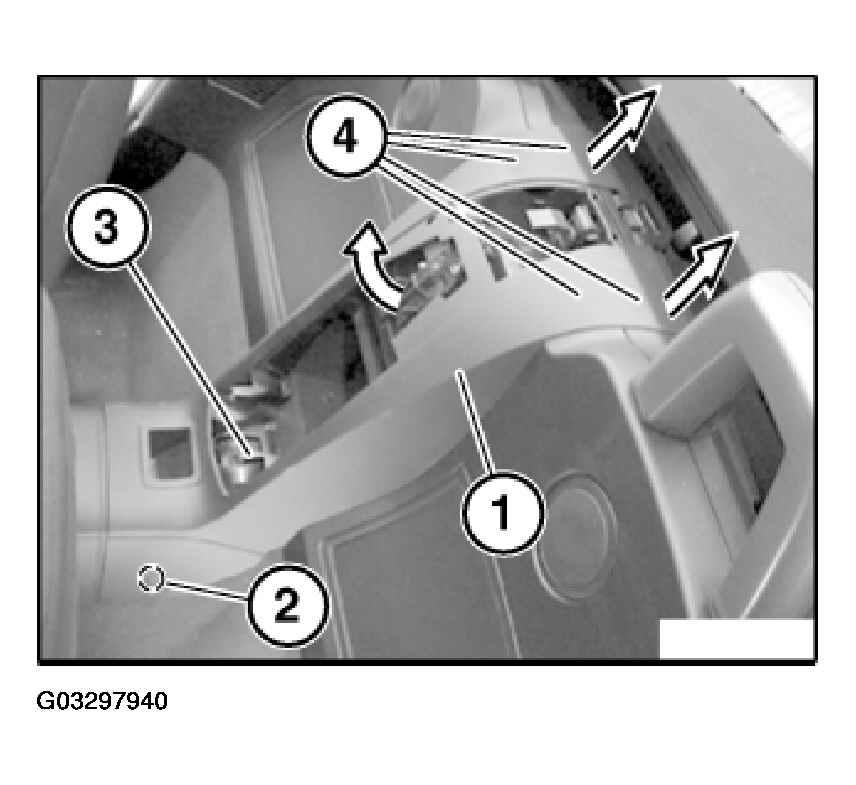

Fig 4: Disconnecting Plug Connection For Microswitch

G03297940

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on panel (2) must not be damaged.

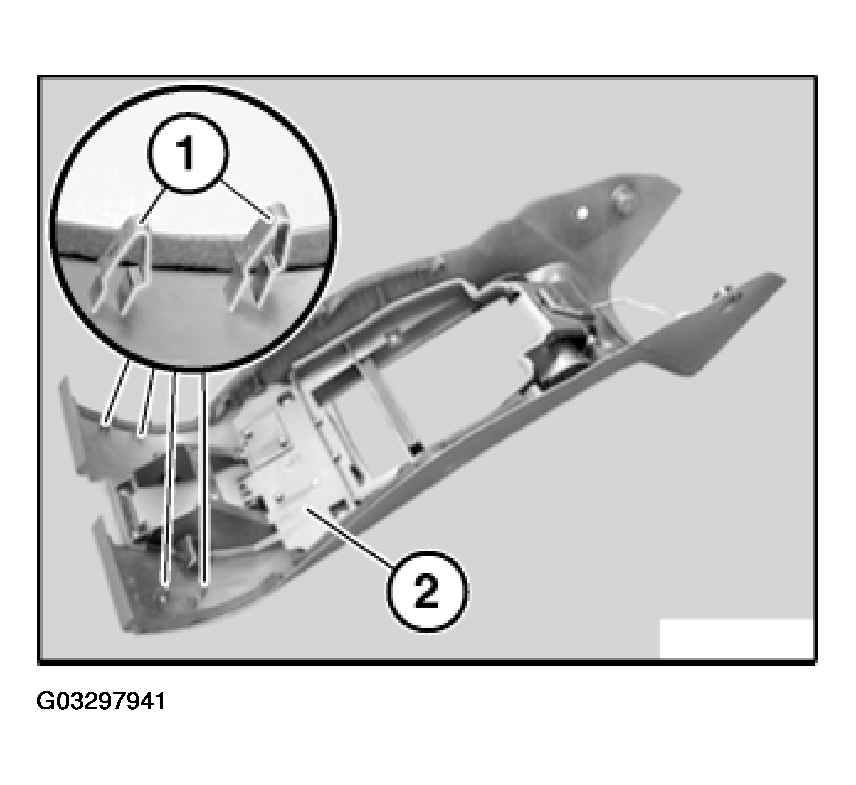

Fig 5: Identifying Catches On Panel

G03297941

Courtesy of BMW OF NORTH AMERICA, INC.
