63 12 001 Removing And Installing/Replacing Left Headlight (From 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM . and 61 67 083 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT HIGH-PRESSURE NOZZLE OF HEADLIGHT WASHER SYSTEM (FROM 03/2005) .
Remove high-pressure nozzle. Refer to 61 67 083 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT HIGH-PRESSURE NOZZLE OF HEADLIGHT WASHER SYSTEM (FROM 03/2005) .

Unlock plug connection (1) on headlight and disconnect.

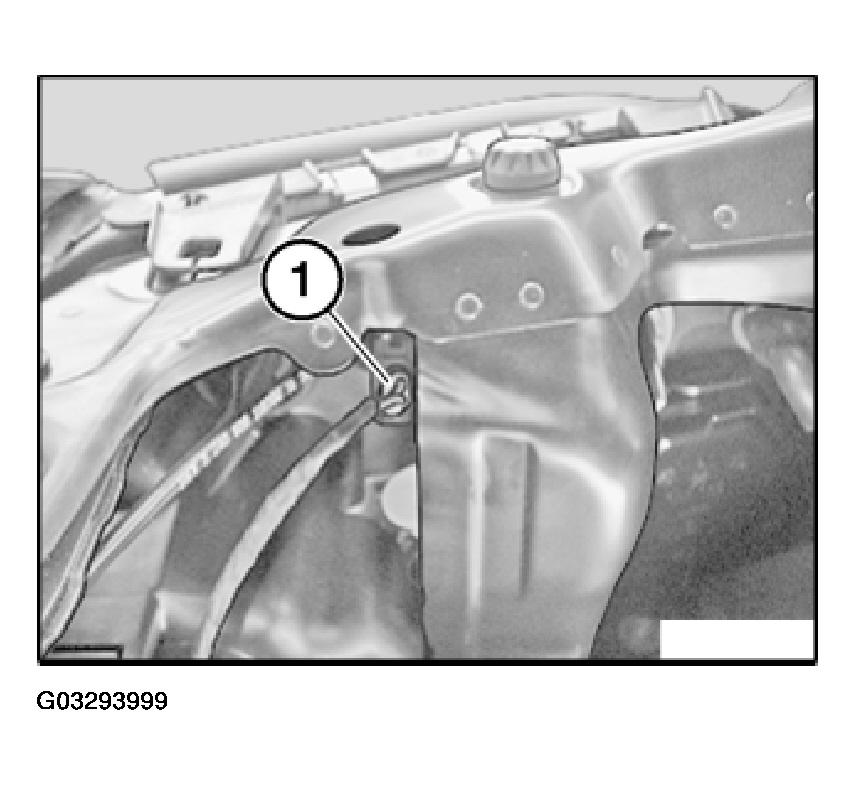

Fig 1: Headlight Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on headlight (2).

Installation:

Tighten screws (1) hand-tight only.

Pull headlight fully towards front.

Close hood/bonnet and adjust headlight to fit.

Open hood/bonnet and tighten down screws (1).

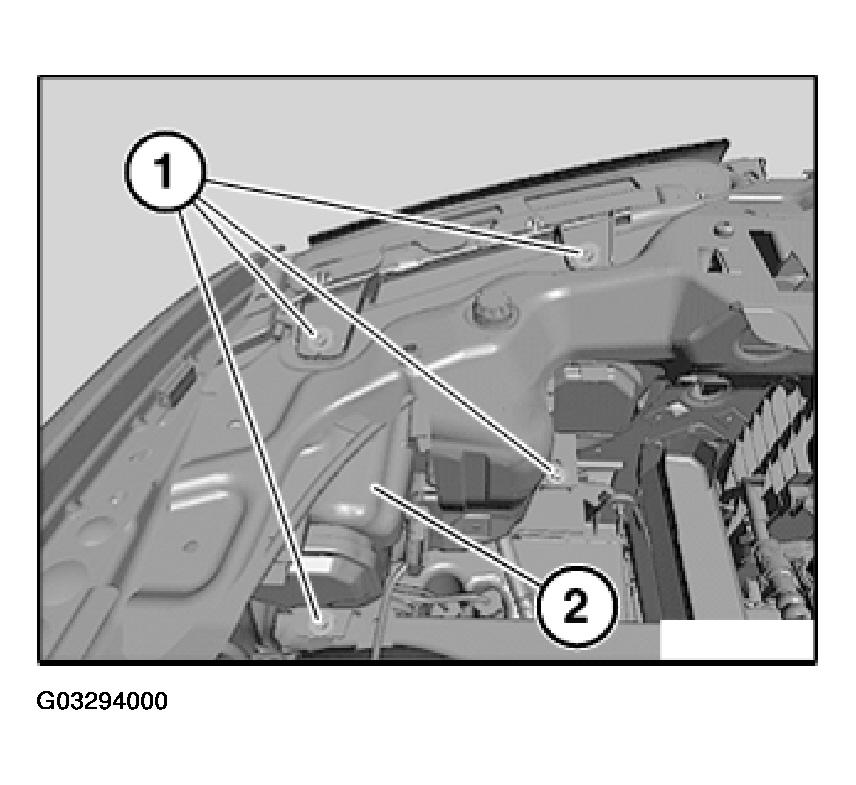

Fig 2: Retaining Screws And Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out headlight (1) forwards slightly.

Unfasten plug connection (2) and disconnect.

Remove headlight (1).

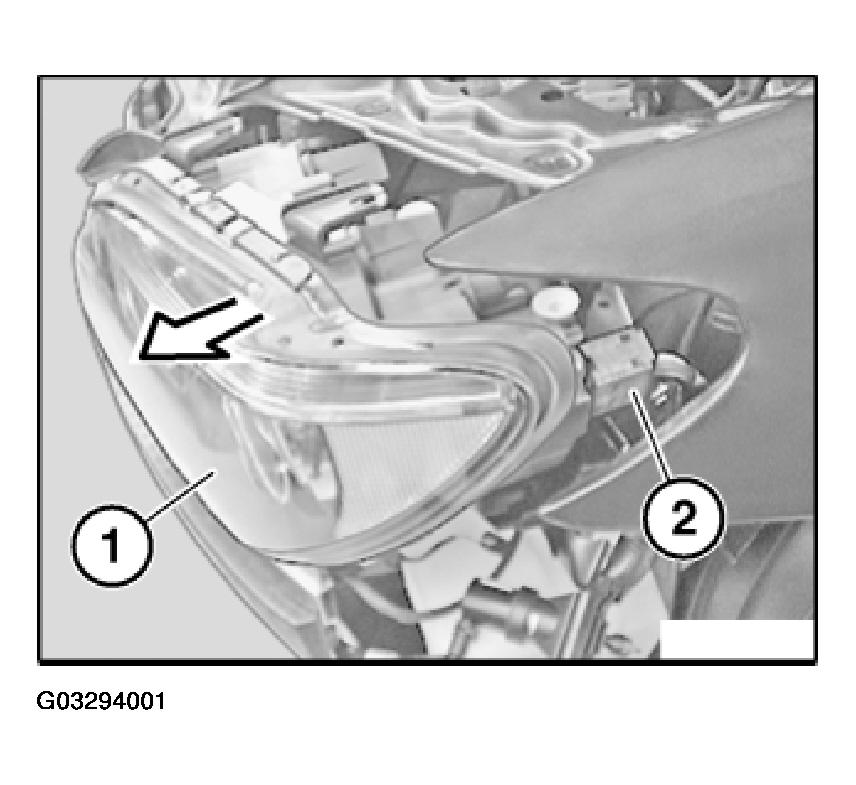

Fig 3: Plug Connection, Headlight And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs. Refer to 63 99 002 REPLACING HALOGEN BULB FOR LEFT HIGH-BEAM HEADLIGHT (FROM 03/2005) , or 63 99 076 REPLACING BULB FOR LEFT XENON LIGHT (FROM 03/2005) , or 63 99 132 REPLACING BULB FOR FRONT LEFT SIDELIGHT (FROM 03/2005) or 63 99 273 REPLACING BULB FOR TURN INDICATOR, FRONT LEFT .

Installation:

Adjust headlight. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
