63 99 273 Replacing Bulb For Turn Indicator, Front Left

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Turn bulb holder (1) approx. 30° in direction of arrow.

Feed bulb holder (1) out of headlight.

Remove bulb from bulb holder (1).

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA .

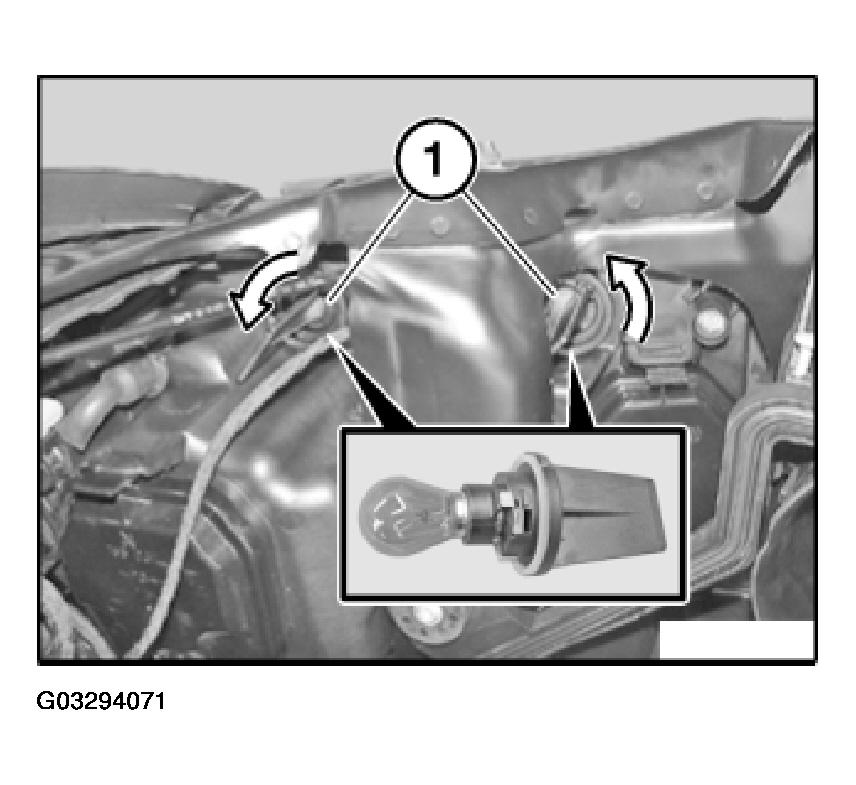

Fig 1: Bulb Holder And Removal Direction
G03294071Courtesy of BMW OF NORTH AMERICA, INC.
