63 99 002 Replacing Halogen Bulb For Left High-Beam Headlight (From 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

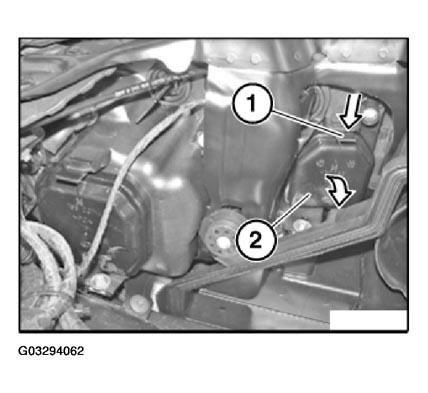

Press lock (1) in direction of arrow and remove cover (2) from headlight.

Fig 1: Lock, Headlight Cover And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

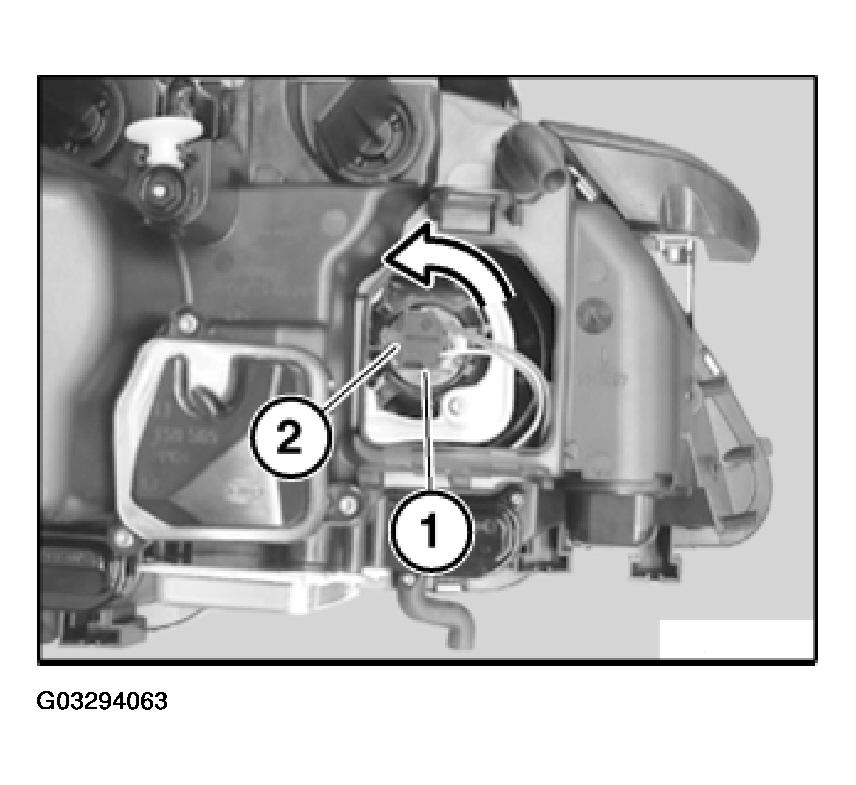

Unlock bulb (1) approx. 30° in direction of arrow and remove.

Detach plug (2) from bulb (1).

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA .

Fig 2: Plug, Headlight Bulb And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
