63 99 132 Replacing Bulb For Front Left Sidelight (From 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary Preliminary Tasks:

Remove left headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (FROM 03/2005) .

Turn cover (1) approx. 30° in direction of arrow and remove.

Fig 1: Left Headlight Cover And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (3) from bulb (2).

Turn bulb (2) in direction of arrow and remove from headlight (1).

Installation:

Holder with bulb for sidelight (1) must be correctly seated in mounting.

Note bulb type. Refer to LIGHTS - TECHNICAL DATA .

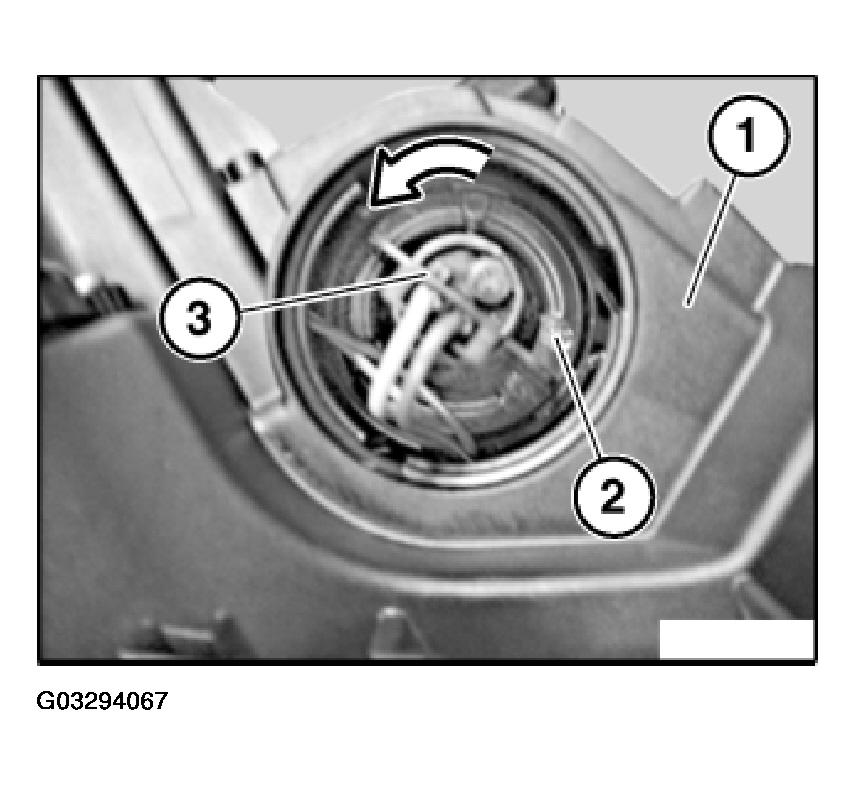

Fig 2: Plug, Bulb, Headlight And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
