51 11 156 Removing And Installing Front Bumper Trim

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove baseplate for number/license plate. Refer to 51 11 158 REPLACING BASEPLATE FOR LICENSE PLATE .

Build date up to 03/2005:

Remove both fog lamps. Refer to 63 17 060 REMOVING AND INSTALLING (REPLACING) left or right front fog lamp .
Build date from 03/2005:
Remove both side grilles. Refer to 51 11 185 REMOVING AND INSTALLING/REPLACING SIDE TRIM GRILLE FOR BUMPER TRIM (FROM 03/2005) .

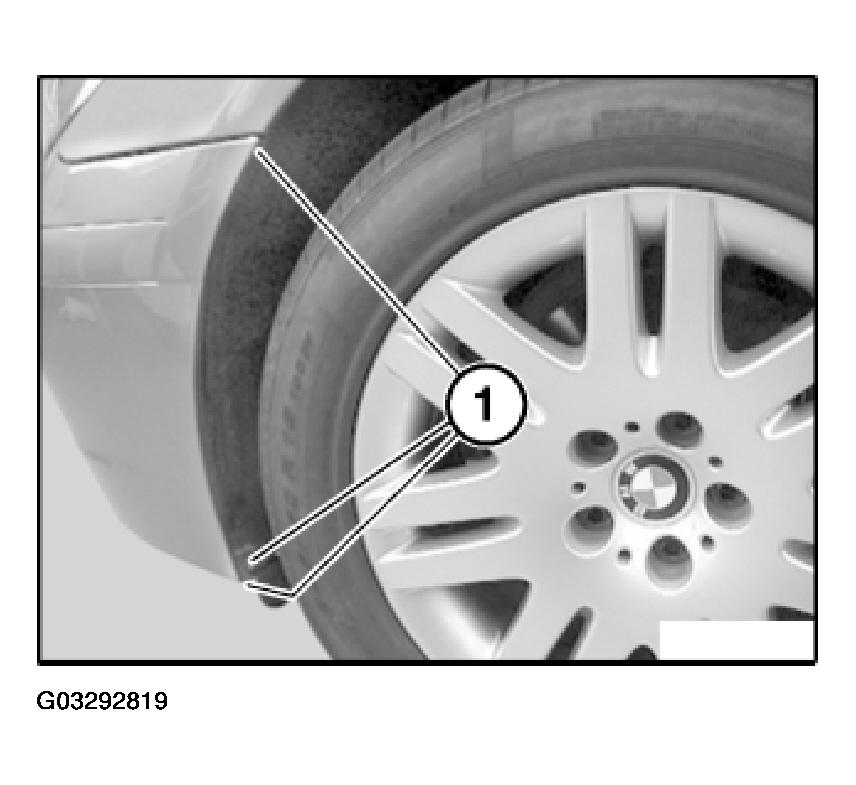

Release screws (1) or clip (1) on left/right.

Fig 1: Removing Trim Retaining Screws And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

IMPORTANT: Bumper trim must not be pulled out sideways (risk of damage).

Remove bumper trim straight towards front with aid of a 2nd person.

If necessary, disconnect additional plug-in contacts and feed out cable.

Installation:

Observe gap dimensions.

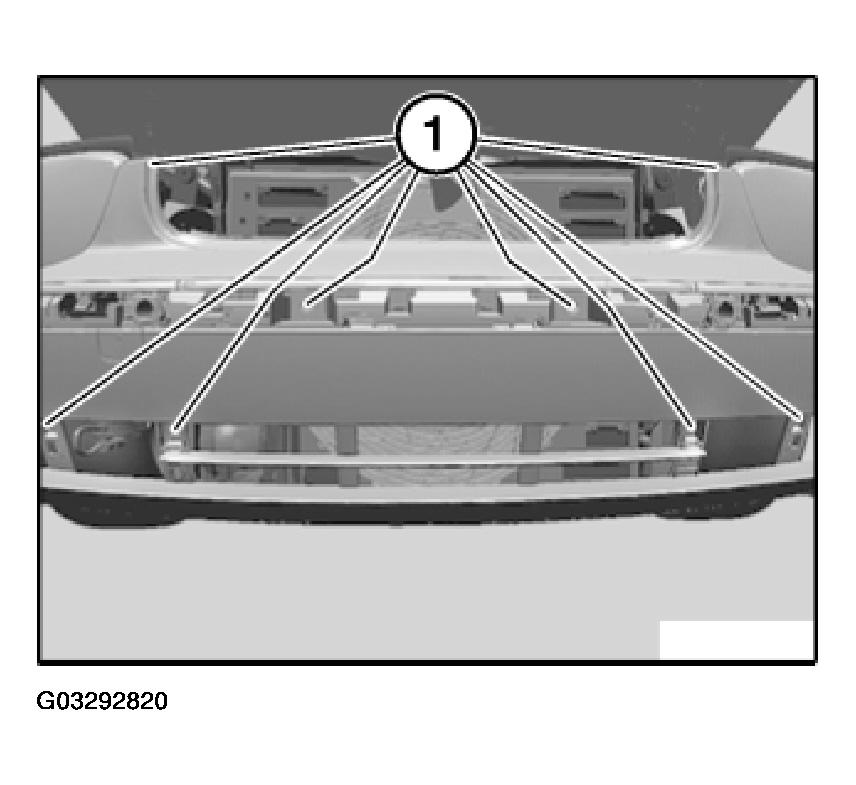

Fig 2: Removing Bumper Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
