61 67 083 Removing And Installing/Replacing Left Or Right High-Pressure Nozzle Of Headlight Washer System (From 03/2005)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS .

Special Tools Required:

13 3 010

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

To prevent excess escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010.

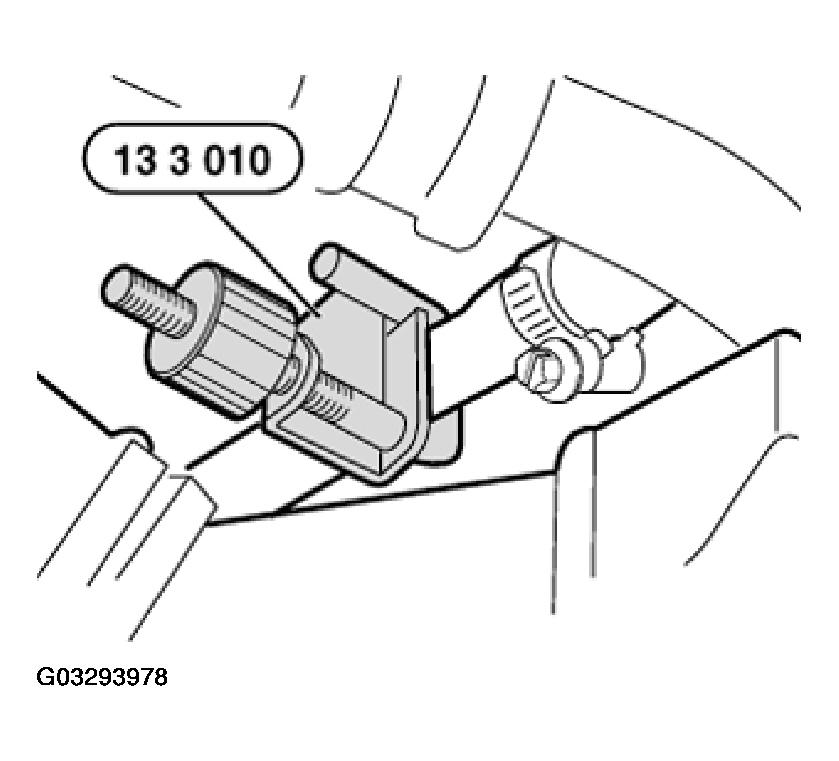

Fig 1: Special Tool (13 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock high-pressure line (2) and detach from high-pressure nozzle (1).

Release screws (3).

Remove high-pressure nozzle (1).

Installation:

New spray nozzles are already preset.

Check function.

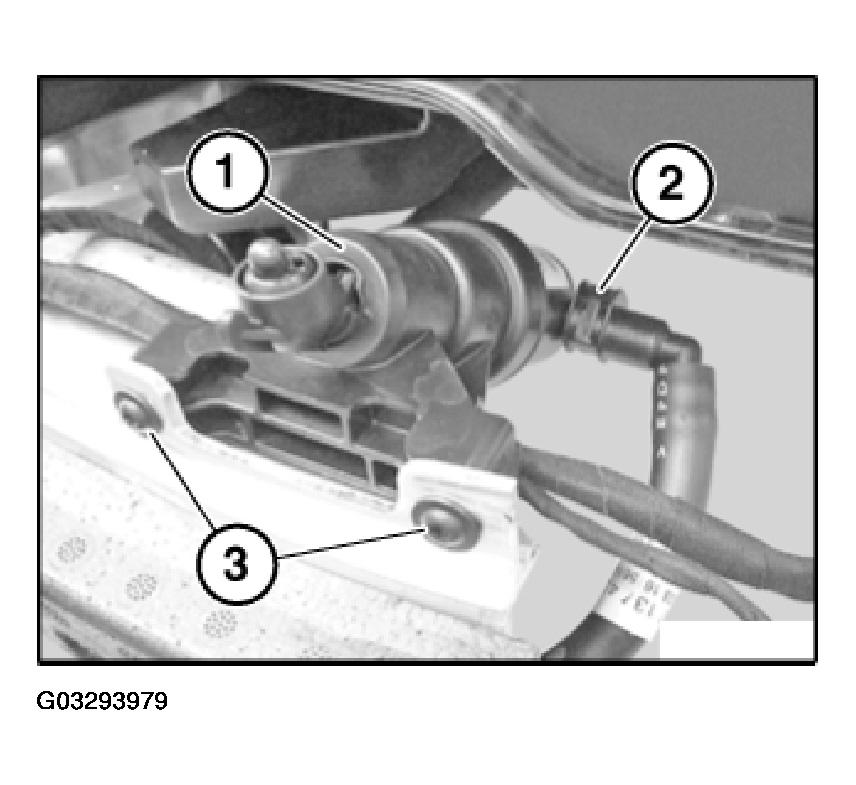

Fig 2: High-Pressure Nozzle, Line and mounting screws

Courtesy of BMW OF NORTH AMERICA, INC.
