11 21 500 Removing And Installing/Replacing Crankshaft (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Replace main bearing screws. Do not wash off bolt coating. There must be no oil in the blind holes (risk of cracking ).

Necessary Preliminary Tasks:

Remove engine. Refer to 11 00 050 REMOVING AND INSTALLING ENGINE (N73) .
Remove left cylinder head. Refer to 11 12 105 REMOVING AND INSTALLING LEFT CYLINDER HEAD (N73) .
Remove right cylinder head. Refer to 11 12 106 REMOVING AND INSTALLING RIGHT CYLINDER HEAD (N73) .
Remove hub for vibration damper. Refer to 11 23 031 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER HUB (N73) .
Remove lower timing case cover. Refer to 11 14 110 REMOVING AND INSTALLING LOWER TIMING CASE COVER (N73) .
Remove rear timing case cover.
Remove upper oil sump. Refer to 11 13 010 REMOVING AND INSTALLING/REPLACING OIL SUMP TOP SECTION (N73) .
Remove oil pump. Refer to 11 41 000 REMOVING AND INSTALLING/REPLACING OIL PUMP (N73) .
Remove flywheel. Refer to 11 22 510 REMOVING AND INSTALLING/REPLACING FLYWHEEL (N73) .
Remove all pistons. Refer to 11 25 530 REMOVING AND INSTALLING/REPLACING ALL PISTONS (N73) .

Release taper screw mount (1) on all main bearing caps.

Installation:

Tightening torque, refer to 11 11 3AZ in ENGINE - TIGHTENING TORQUES .

Release thread support bushings (2) on all main bearing caps.

Installation:

Tightening torque, refer to 11 11 3AZ in ENGINE - TIGHTENING TORQUES .

Release main bearing bolts along lines (3).

Installation:

Tightening torque, refer to 11 11 2AZ in ENGINE - TIGHTENING TORQUES .

Remove main bearing caps 1 to 7.

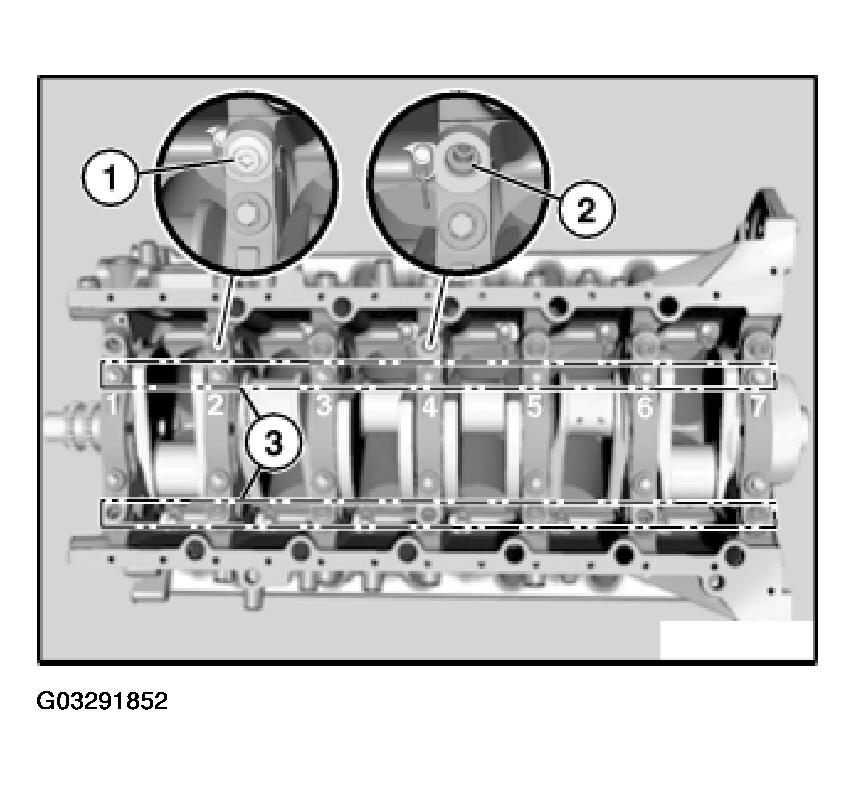

Fig 1: Releasing Main Bearing Bolts

G03291852

Courtesy of BMW OF NORTH AMERICA, INC.

Main bearing shell (1) on bearing cap number 7 is a guide bearing.

Lift out crankshaft (2).

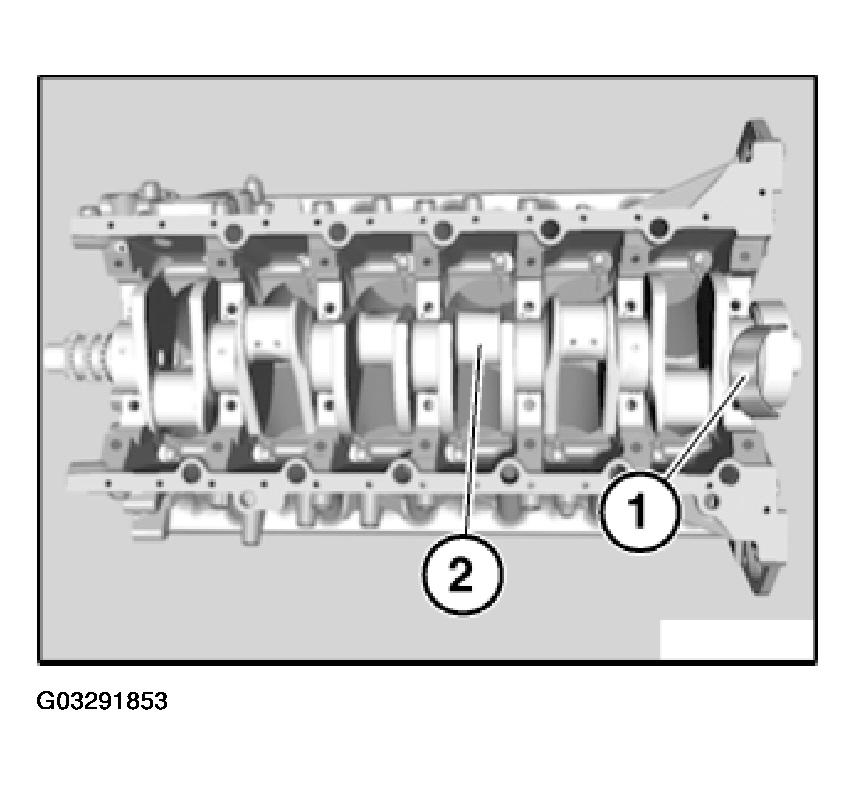

Fig 2: Locating Guide Bearing

G03291853

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew thread support bushings in main bearing caps.

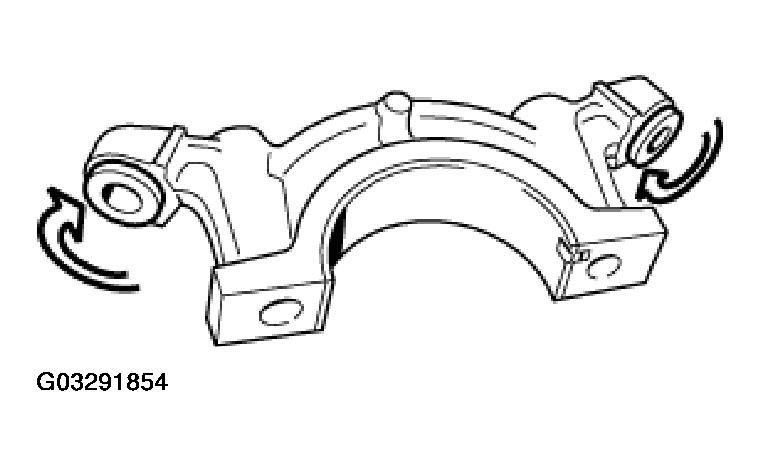

Fig 3: Releasing Thread Support Bushings In Main Bearing Caps

G03291854

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install main bearing shells (1) with lubrication groove in crankcase.

Install main bearing shells (2) without lubrication groove in the main bearing caps.

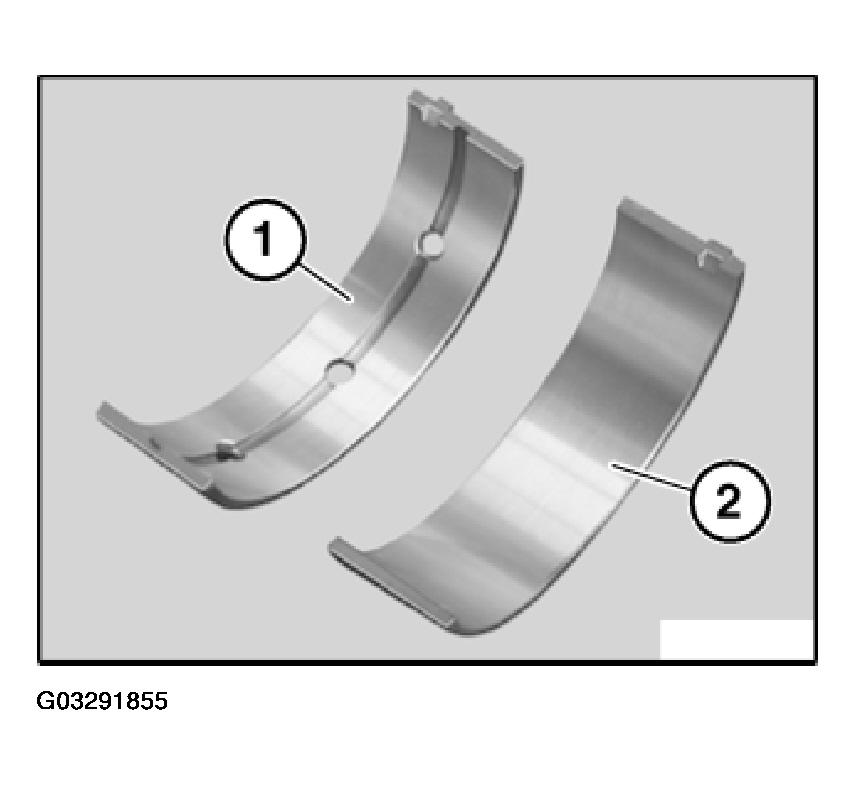

Fig 4: Identifying Types Of Main Bearing Shells

G03291855

Courtesy of BMW OF NORTH AMERICA, INC.

Bearing shell (1) with lubricating groove in crankcase

Installation:

The bearing shell classification for the relevant bearing position from 1 to 7 is stamped in the crankcase (2).

Y = yellow.

G = green.

V = violet.

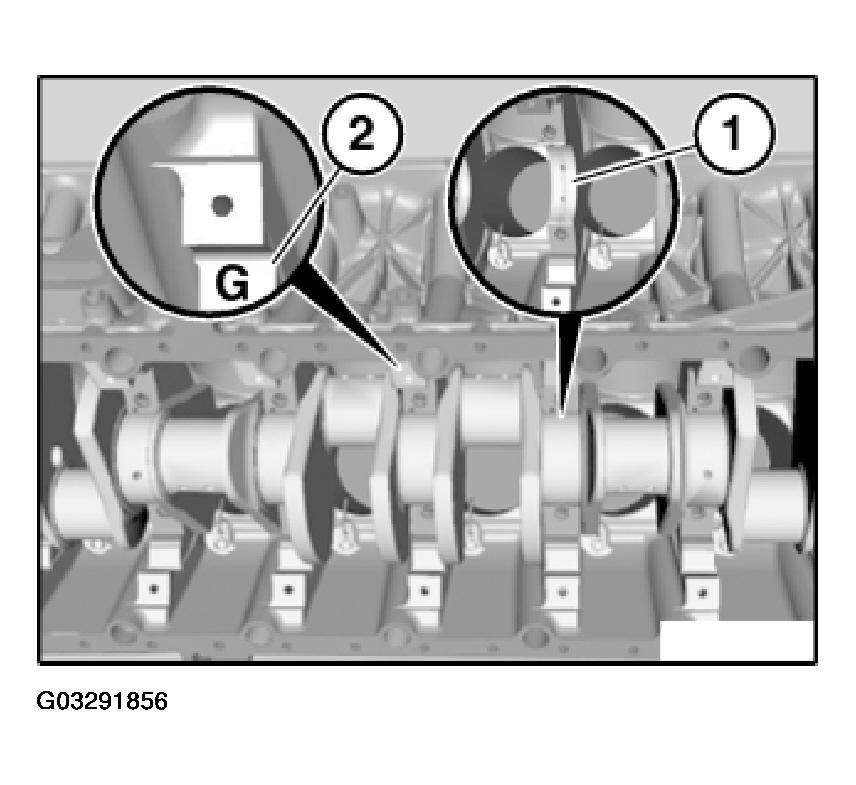

Fig 5: Locating Bearing Shell With Lubricating Groove In Crankcase

G03291856

Courtesy of BMW OF NORTH AMERICA, INC.

Install engine in reverse sequence to its removal.

Installation:

Replace all main crankshaft bearing shells. Refer to 11 21 531 REPLACING CRANKSHAFT MAIN BEARING SHELLS N73) .

Replace all big-end bearing shells.
