11 25 530 Removing And Installing/Replacing All Pistons (N73)
For Special Tool identification, see ENGINE- SPECIAL TOOLS and MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
Special Tools Required:
- 00 9 120
- 11 7 280
- 11 8 151
- 11 8 152
Necessary Preliminary Tasks:
- Remove engine. Refer to 11 00 050 REMOVING AND INSTALLING ENGINE (N73) .
- Remove left cylinder head. Refer to 11 12 105 REMOVING AND INSTALLING LEFT CYLINDER HEAD (N73) .
- Remove right cylinder head. Refer to 11 12 106 REMOVING AND INSTALLING RIGHT CYLINDER HEAD (N73) .
- Remove oil pump. Refer to 11 41 000 REMOVING AND INSTALLING/REPLACING OIL PUMP (N73) .
- Remove upper oil sump. Refer to 11 13 010 REMOVING AND INSTALLING/REPLACING OIL SUMP TOP SECTION (N73) .

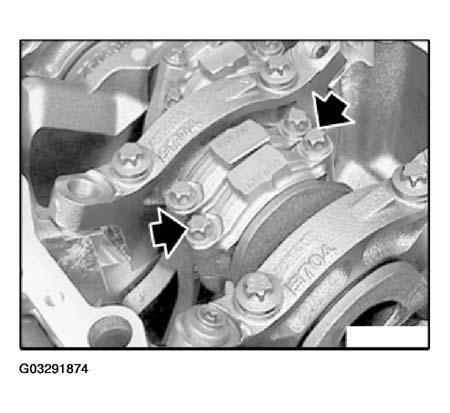

Unscrew conrod bearing cover.
Set down conrod bearing caps in order.
Do not mix up conrods and conrod bearing caps, observe pairing letters.

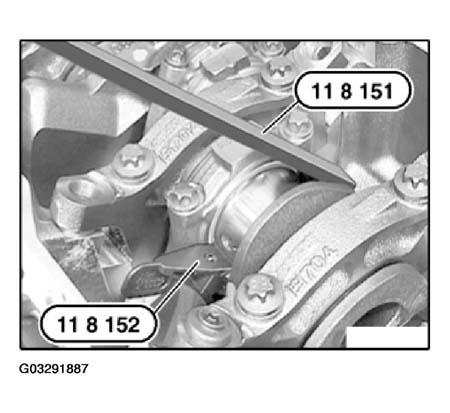

Fit special tools 11 8 151 and 11 8 152.
Remove conrod with piston from cylinder head side.

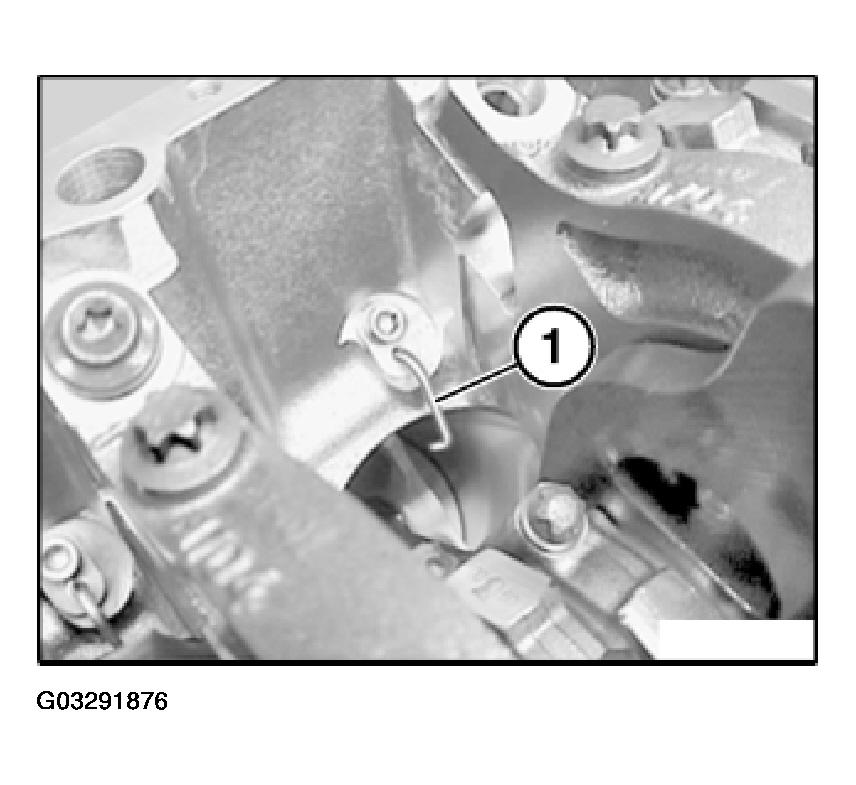

When removing and installing pistons with conrods, make sure piston cooling spray nozzles (1) are not bent.
Risk Of Damage.

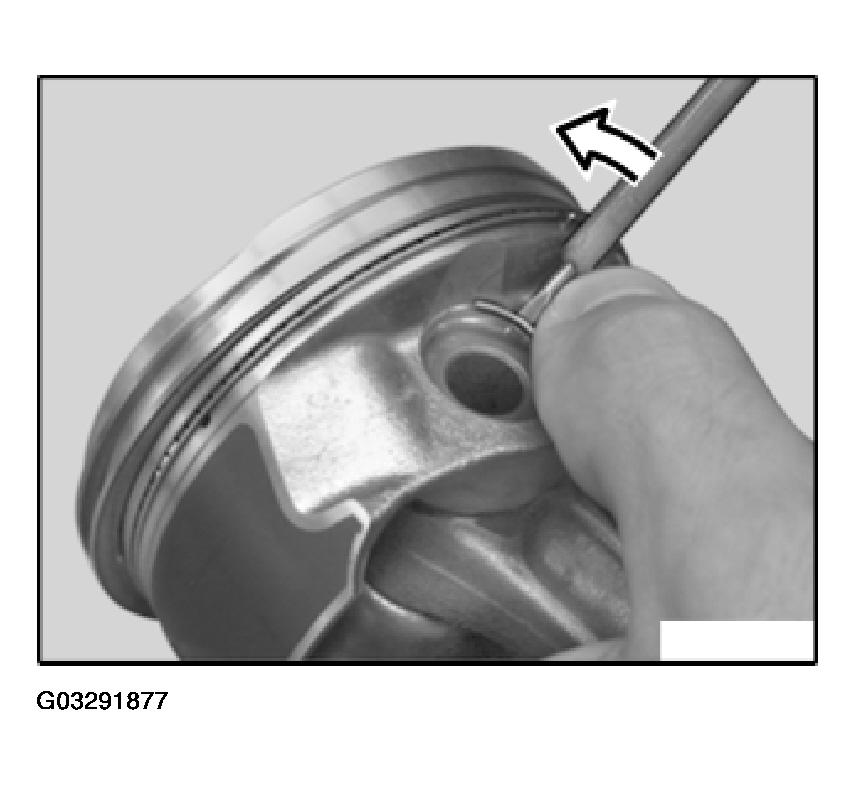

Lift out retaining ring and press out piston pin.
The piston pin must be able to be pressed through the liner by hand with little force and must not display any significant play.
Installation:

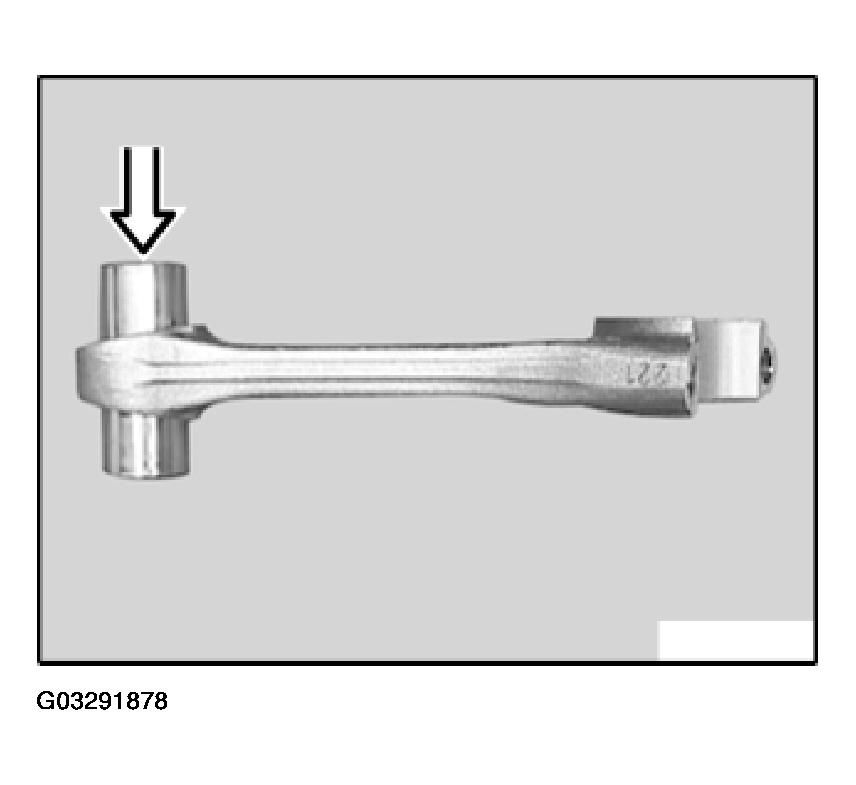

The conrods can also be replaced individually.

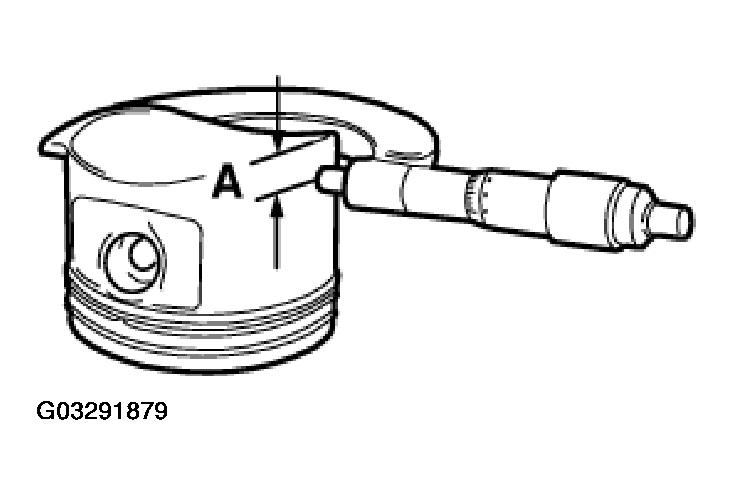

Prior to installation, measure piston installation clearance: Measure piston diameter with micrometer at measuring point A from bottom edge of piston and offset at 90° to the axis of the piston pin.
Measuring point A.

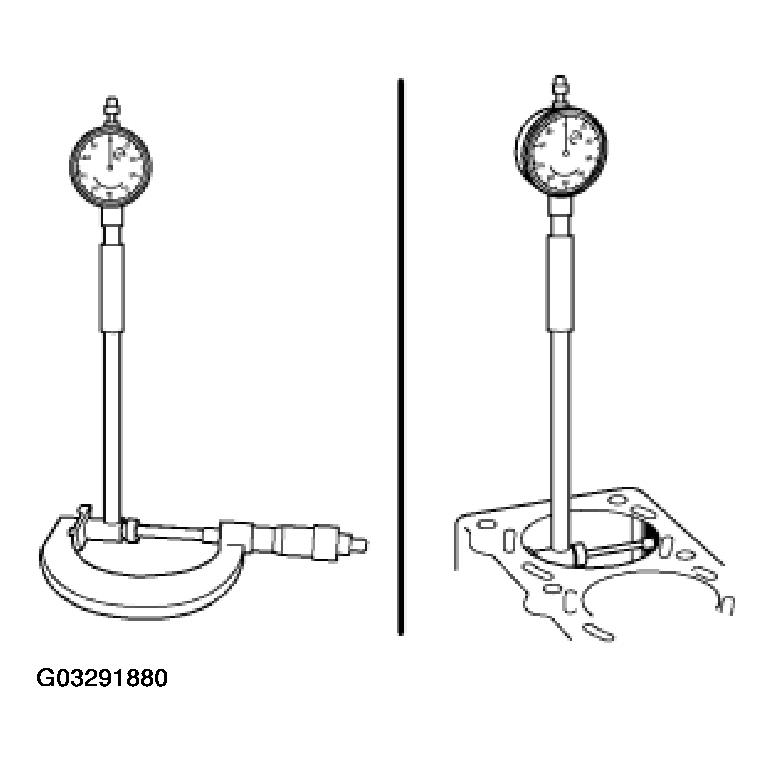

Adjust micrometer to cylinder bore of engine block. Set internal caliper on micrometer to zero. Measure bottom, center and top of cylinder bore in direction of travel and direction of engine rotation.
Diameter of cylinder bore.
Piston installation clearance.
Total permissible wear tolerance.

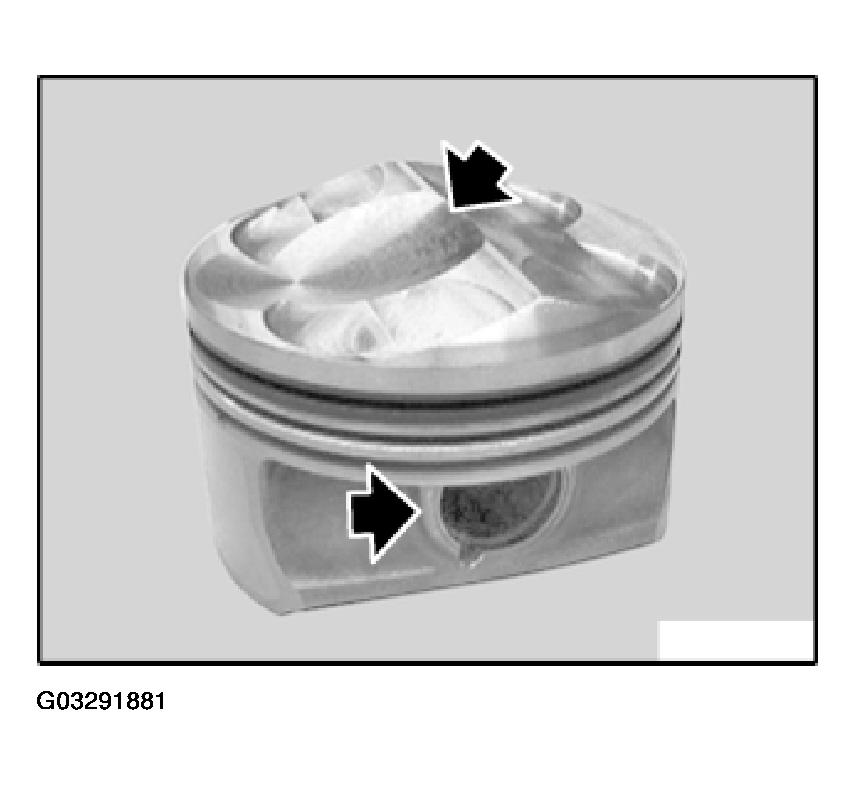

Due to the design of the piston head and the piston pin offset, the pistons are constructed specifically for each cylinder bank and must not be mixed up.
Important!
Risk Of Damage.
Cylinder Bank 1 To 6.

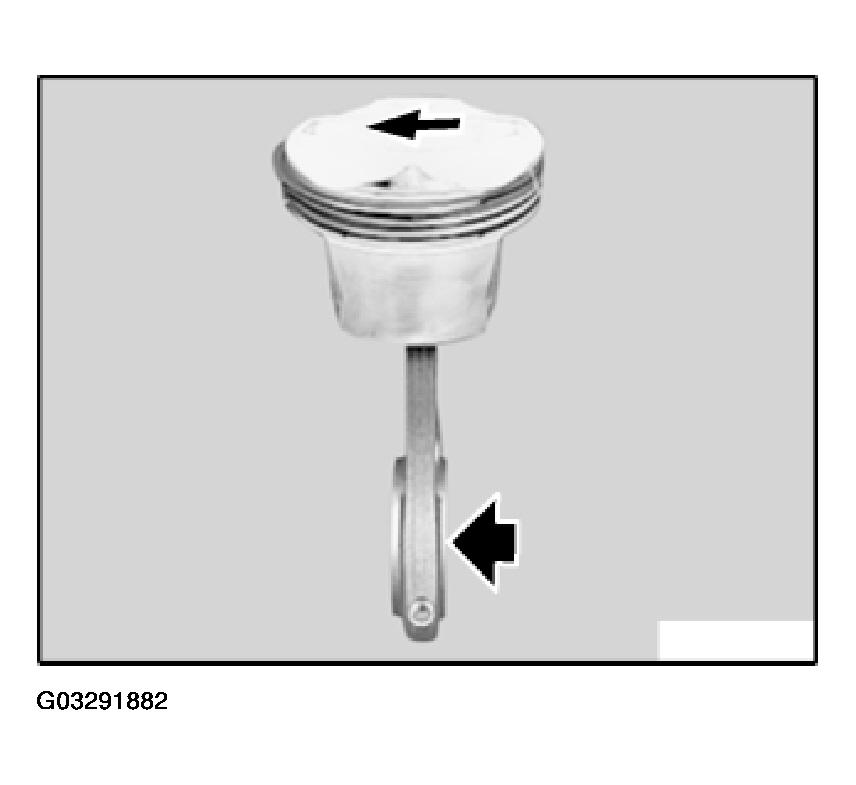

Fit conrod with piston pin to piston in such a way that arrow on piston points to front and flat end of conrod points to rear.
Cylinder Bank 7 To 12.

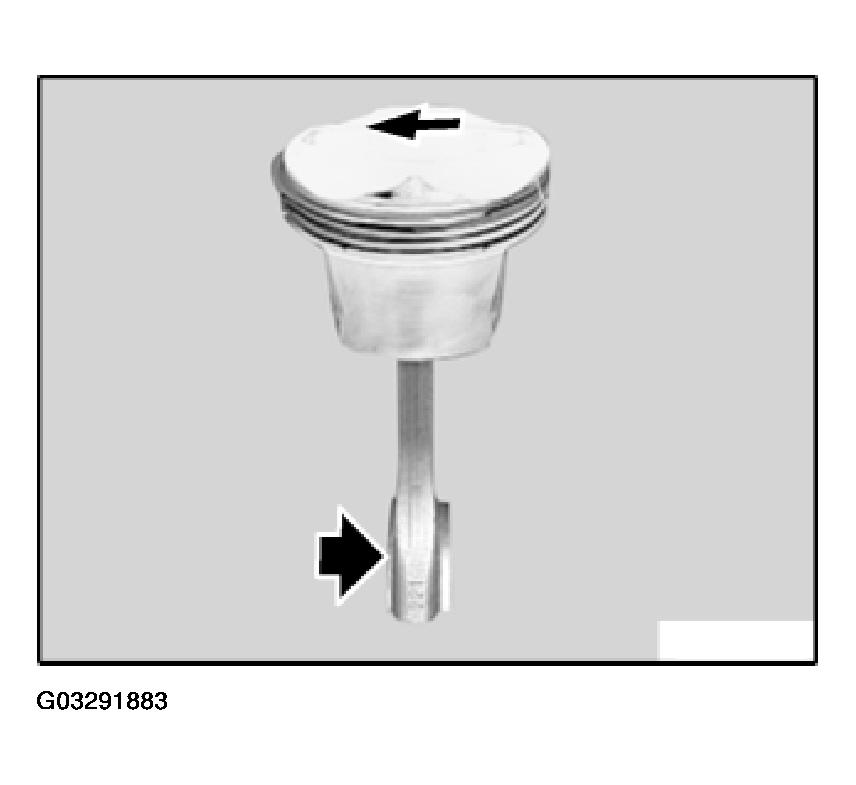

Fit conrod with piston pin to piston in such a way that arrow on piston points to front and flat end of conrod points to front. Install conrod bearing.
Install retaining ring.

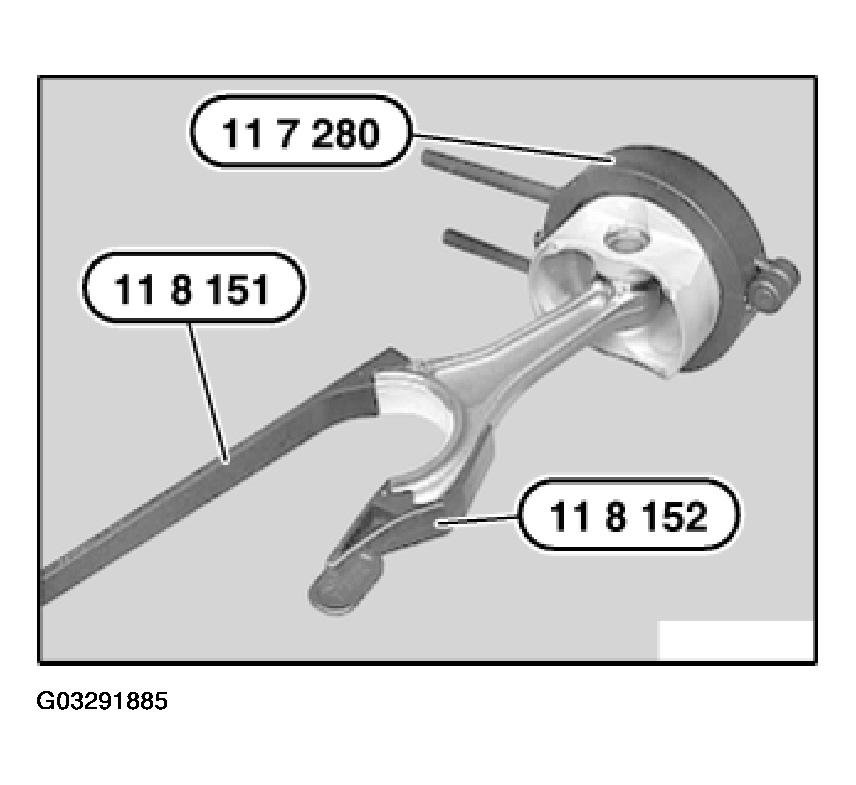

Insert special tools 11 8 151 and 11 8 152 in conrod.
Lightly coat pistons and piston rings with oil.
Offset the contact points of the piston rings by approx. 120° to each other but do not position above the piston boss.

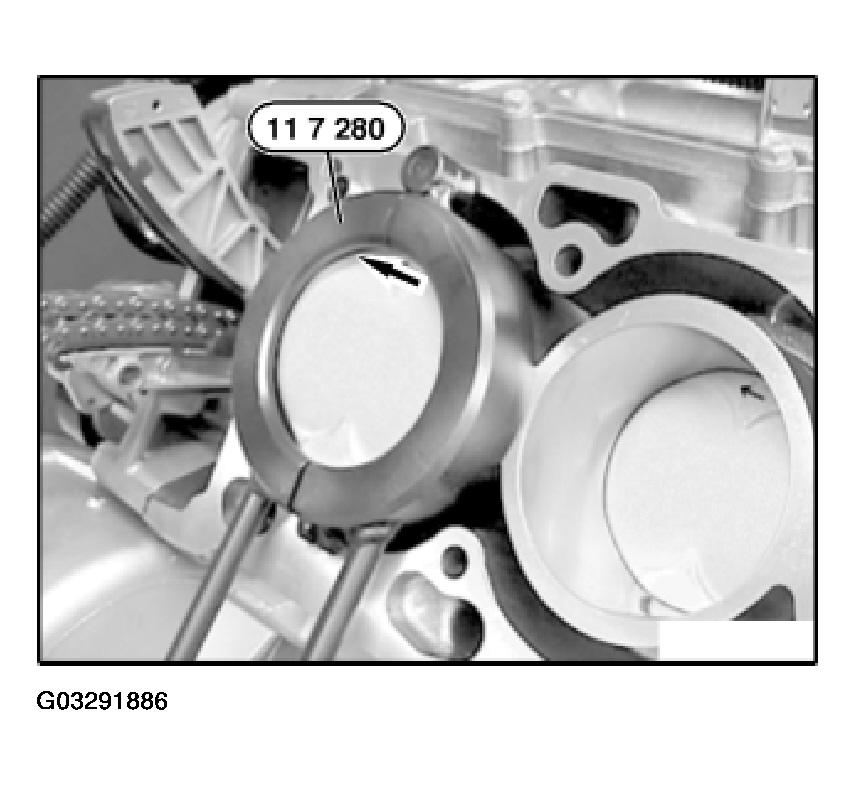

Press together piston rings using special tool 11 7 280.
Keep piston rings pressed with special tool 11 7 280.
Install pistons with arrows pointing towards camshaft drive.
Fit conrod with special tool 11 8 151 and 11 8 152 on crank pin.
Remove special tools 11 8 151 and 11 8 152.

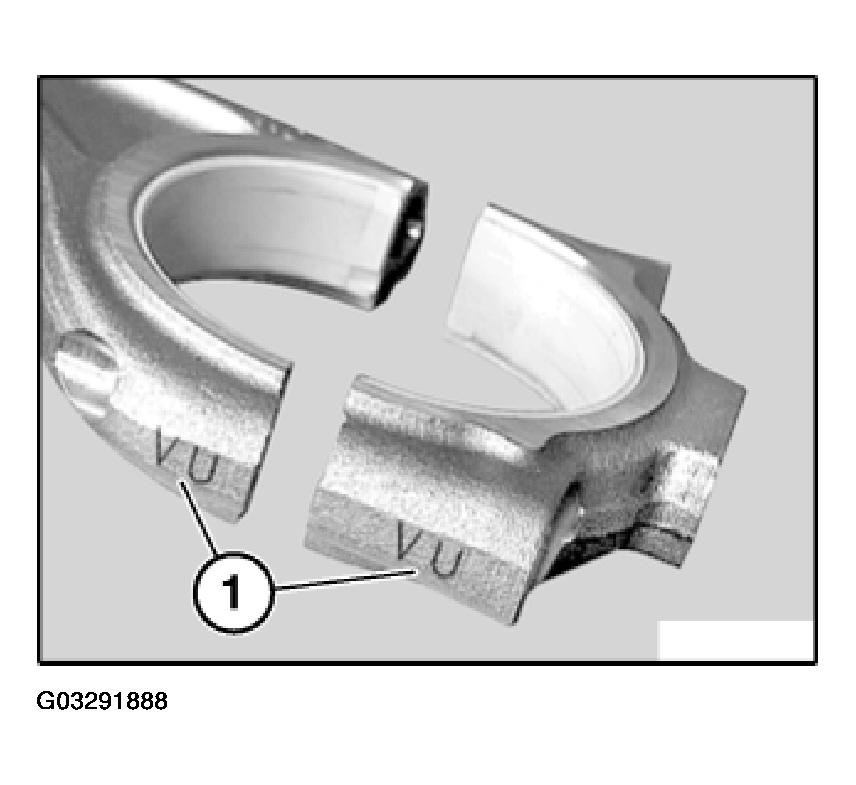

For purposes of clarity, the pairing letters (1) are shown on the removed conrod.
Apply light coat of oil to connecting-rod bearing shells.
Install new conrod bolts.

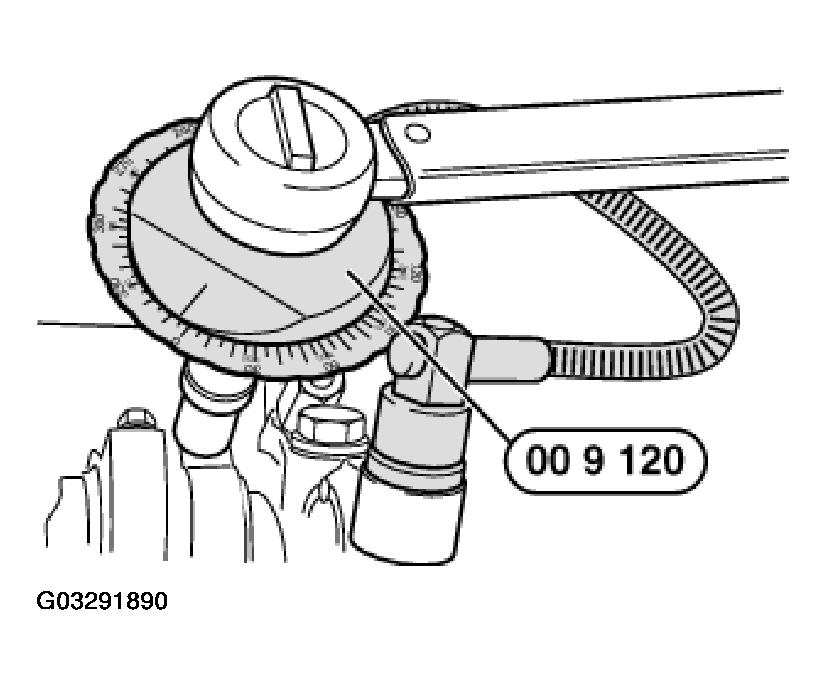

Tighten down conrod bolts with special tool 00 9 120.
Installation:
Tightening torque, refer to 11 24 1AZ in ENGINE - TIGHTENING TORQUES .
Assemble engine in reverse sequence to its disassembly.
Installation:
Lubricate all crankshaft bearing positions with engine oil.
