11 22 510 Removing And Installing/Replacing Flywheel (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see ENGINE- SPECIAL TOOLS .
Special Tools Required:
- 11 9 260
- 11 9 263
- 11 9 264
Necessary Preliminary Tasks:
- Disconnect battery negative terminal. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove and install center equipment compartment bulkhead. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF ASSEMBLY COMPARTMENT BULKHEAD .
- Remove and install front underbody protection.
- Remove and install complete exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N73) .
- Remove and install reinforcing plate.
- Remove and install automatic transmission. Refer to AUTOMATIC TRANSMISSION .

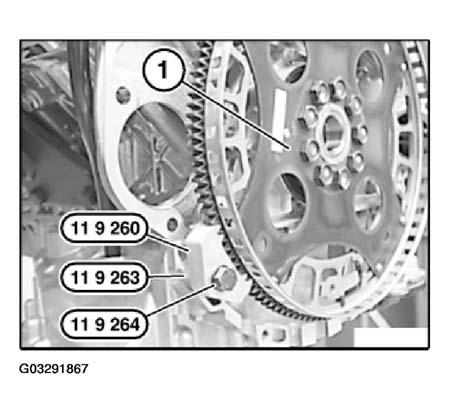

Block flywheel (1) with special tool. 11 9 260/11 9 263/11 9 264.
Unfasten flywheel screws.
Remove flywheel (1).
Installation:
Flywheel (1) is secured with an alignment pin.
Fit new flywheel screws.
Clean crankshaft thread for flywheel screws.
Installation:
Tightening torque, refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES .
Assemble engine.
