51 11 157 Replacing bumper panel, front

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER TRIM .

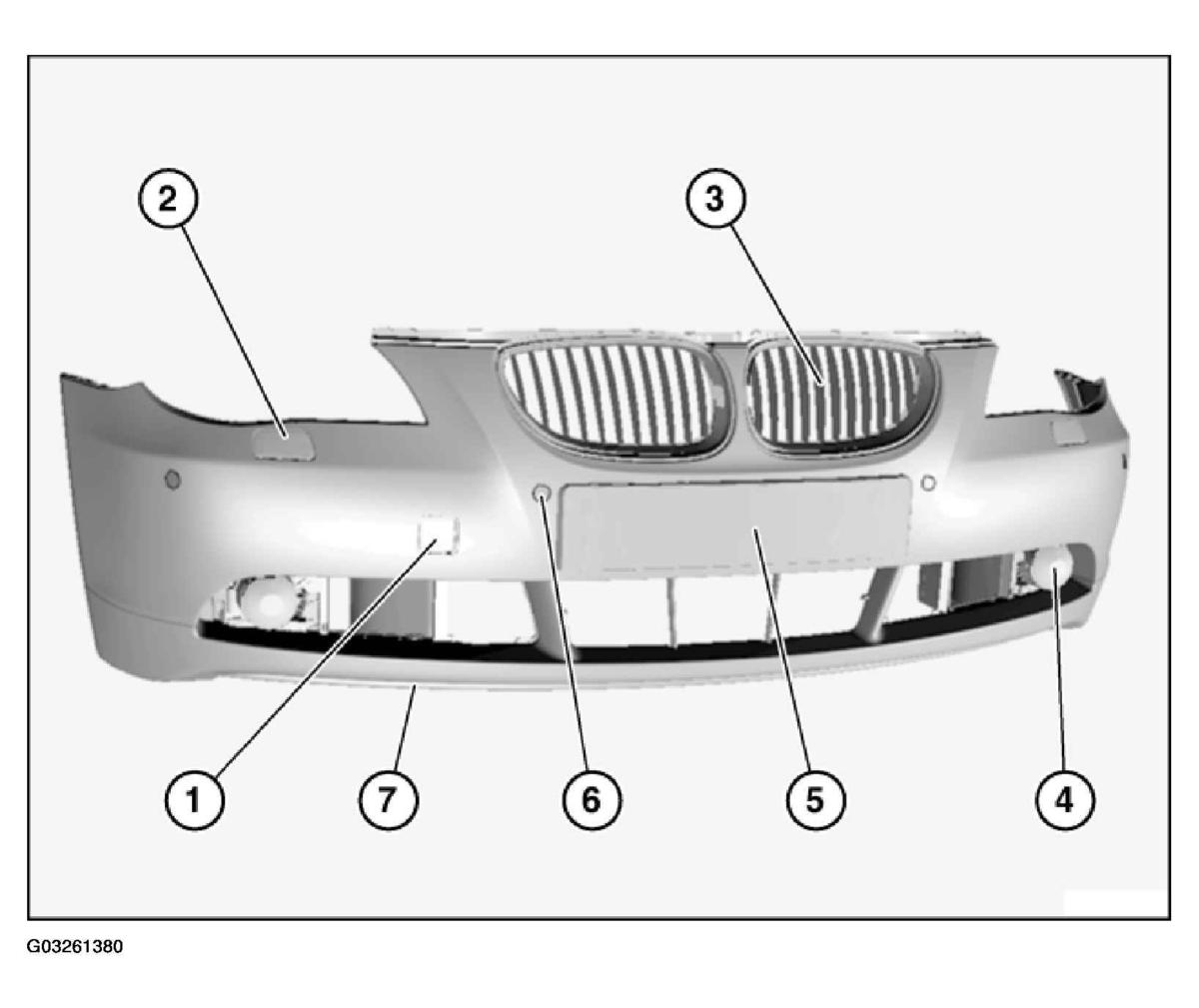

Fig 1: Removing Front Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover cap (1) for towing eye.

Remove cover for headlight cleaning system (2) on left/right. See COVER FOR HEADLIGHT CLEANING SYSTEM .

Remove front radiator grille (3) on left/right. See FRONT RADIATOR GRILL, MIDDLE LEFT OR RIGHT .

Remount fog light (4) on left/right and adjust (not M5). See FRONT FOG LAMPS .

If necessary, remove license plate (5). See BASEPLATE FOR LICENCE PLATE .

If necessary, remove baseplate for license plate.

Installation note:

Fracture line are applied to inside of bumper on the version with M Aerodynamic package and M5. They mark the drilling position for the number plate baseplate.

If necessary, remove wiring harness and PDC ultrasonic sensor (6). See ULTRASONIC TRANSDUCER AT FRONT (PARK DISTANCE CONTROL) .

Remove damping lip/spoiler (7).

Version after 03/2007:

Remove all ornamental grilles.

Version with M Aerodynamic package:

Remove fog light cover.

Remove ornamental grille in bumper panel. See TRIM GRILL IN BUMPER TRIM .

M5 only:

Remove ornamental grille in bumper panel. See GRILLE IN BUMPER TRIM (M5 OR M AERODYNAMIC KIT) .
