51 11... Removing and installing/replacing cover for headlight washer unit on left

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Version without headlight washer unit (SRA):

With bumper trim fitted, unclip cover (1) with special tool 00 9 341 .
With bumper trim removed, unclip cover (1) from inside.

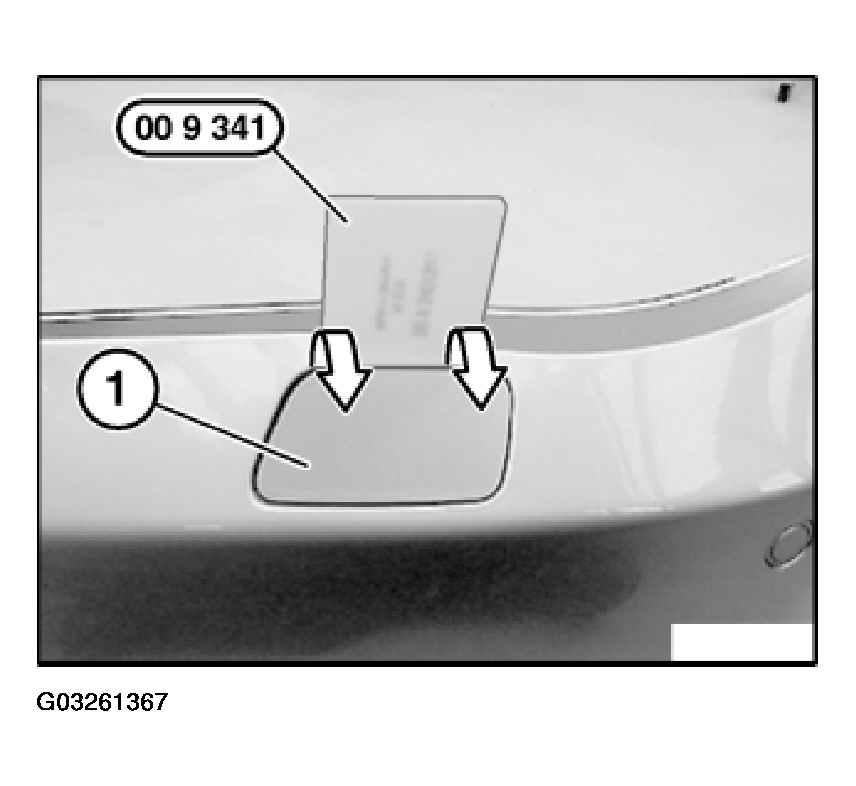

Fig 1: Removing Cover With Special Tool

G03261367

Courtesy of BMW OF NORTH AMERICA, INC.

Press catch together.

Feed cover (1) out of carrier (2)..

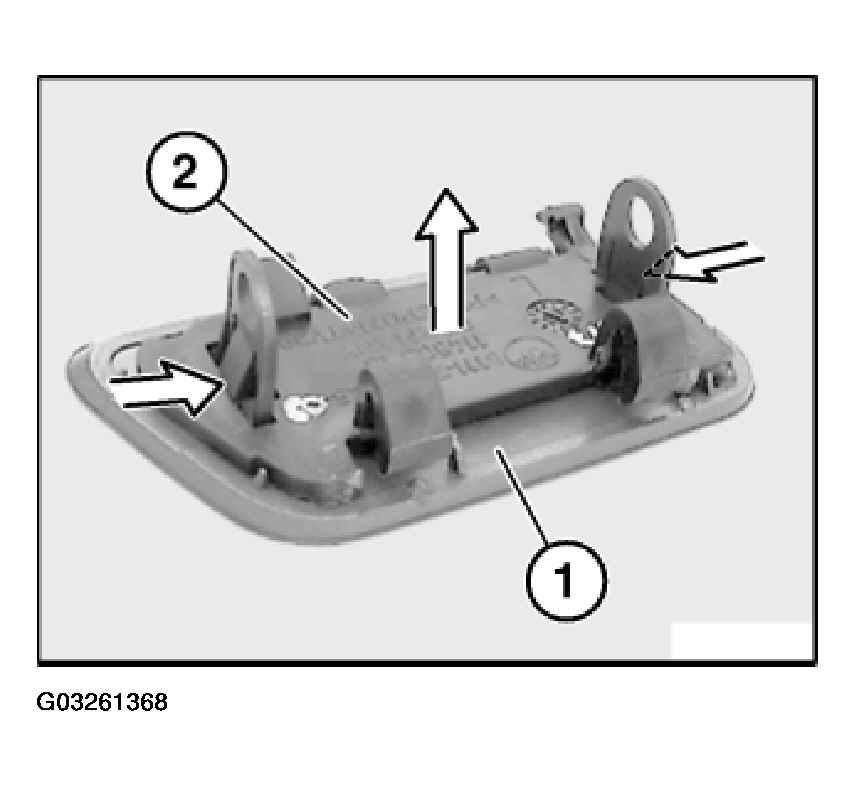

Fig 2: Removing Cover From Carrier

G03261368

Courtesy of BMW OF NORTH AMERICA, INC.

Version with headlight washer unit:

Carefully open out cover (1).

Press catches (2) together and feed out cover (1) in outward direction.

Fig 3: Identifying Cover

G05503514

Courtesy of BMW OF NORTH AMERICA, INC.

Removing lever for headlight washer unit cover:

Remove BUMPER TRIM .

Release spring (1) and remove lever (2).

Fig 4: Removing Lever

G05503515

Courtesy of BMW OF NORTH AMERICA, INC.
