51 11 156 Removing and installing front bumper trim

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Only up to 03/2007 without M5:

Remove middle grille
Remove air duct trim.

Release screws (1) on wheel arch trim (2) on left/right.

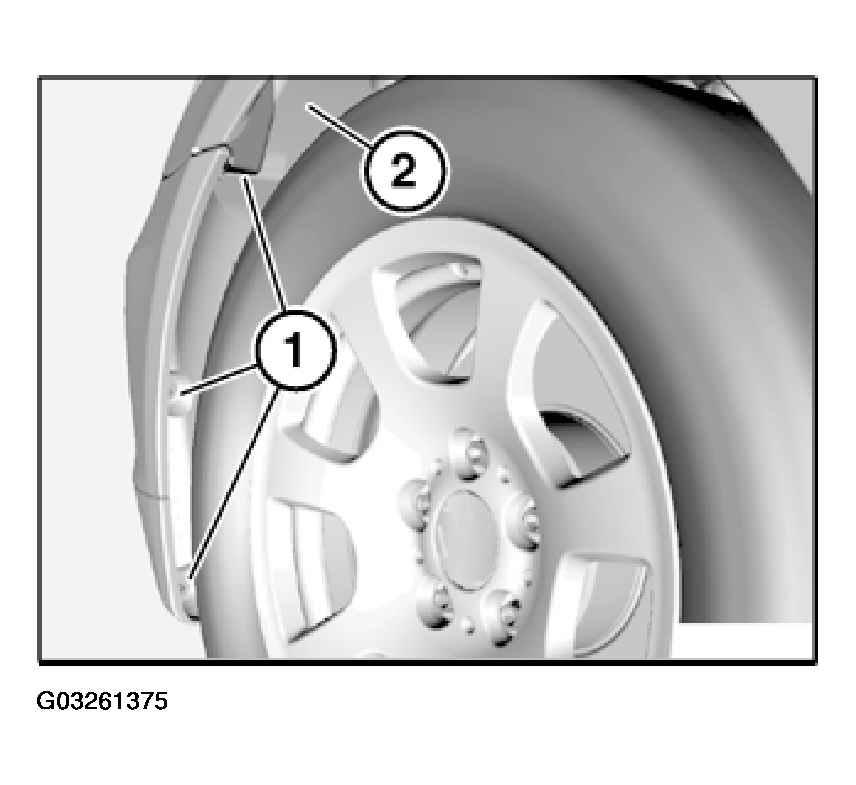

Fig 1: Removing Screws On Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Except M5

Release screws (1).

Installation:

Make sure trims (2) are in correct position.

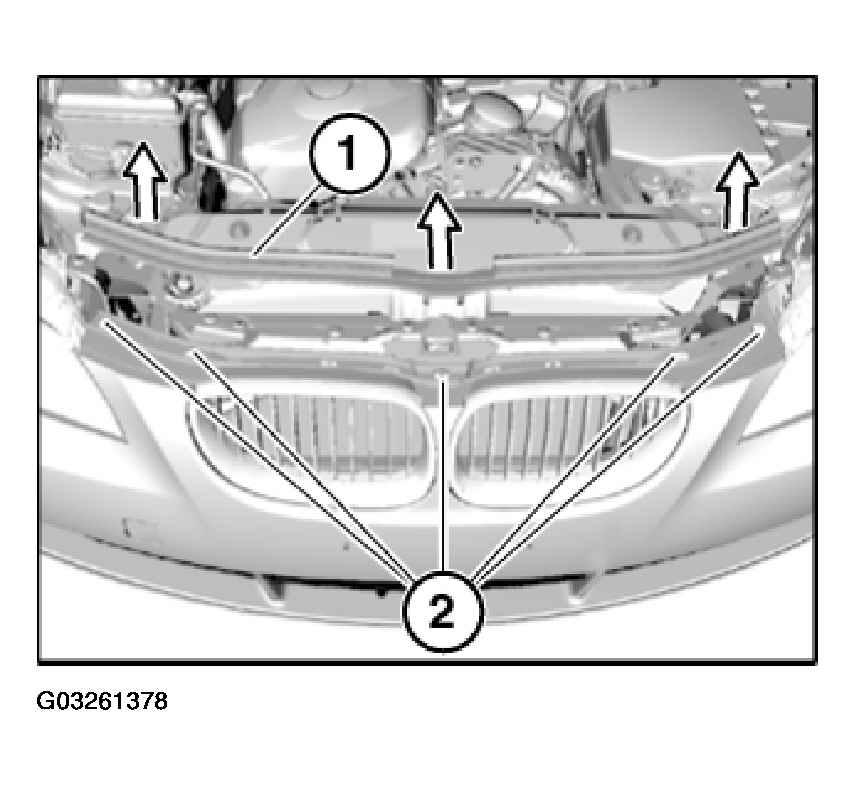

Fig 2: Identifying Correct Position Of Trims

Courtesy of BMW OF NORTH AMERICA, INC.

M5 only

Unscrew screws (1).

Installation:

Make sure trim (2) is in correct position.

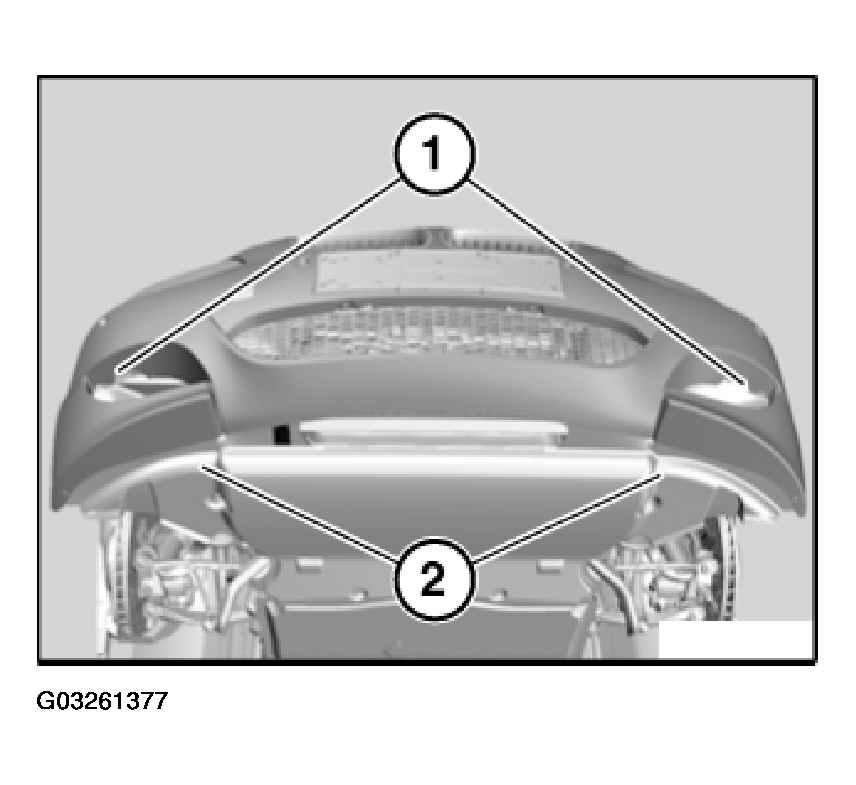

Fig 3: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip strip (1) in direction of arrow and release screws (2) underneath.

Tightening torque: 5 Nm

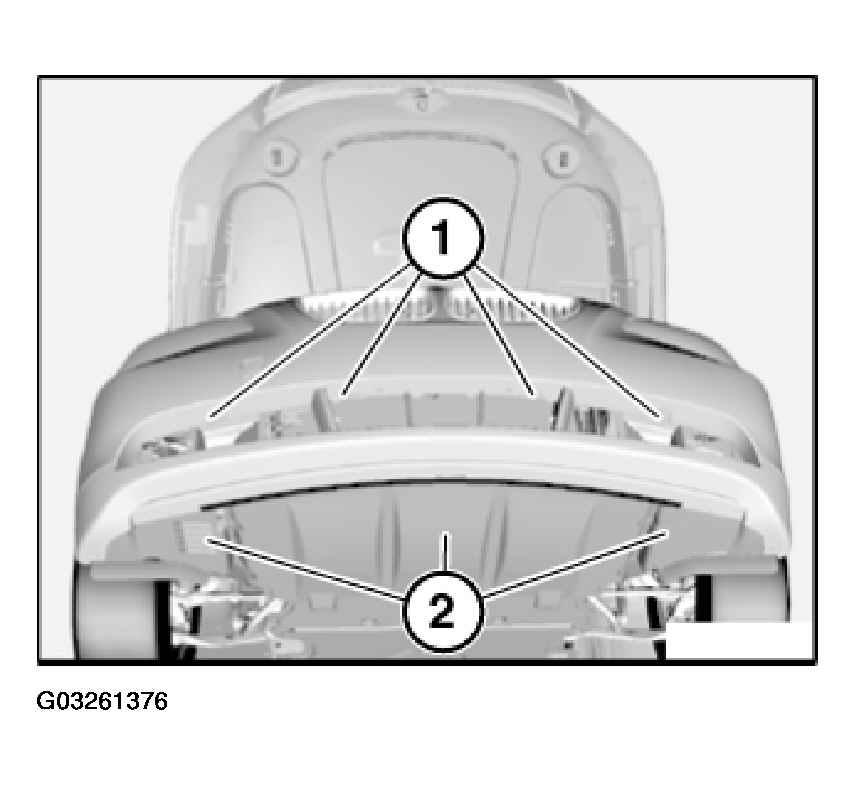

Fig 4: Removing Strip Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Press bumper trim (1) against direction of travel and release from holders in direction of arrow.

NOTE:

The catches on the side holders are pressed down by moving the bumper trim (1) against the direction of travel. This enables the bumper trim (1) to be detached from the side.

Depending on version, disconnect plug connections from fog lamp or from Park Distance Control.

Remove bumper trim (1) straight forwards with a 2nd person helping.

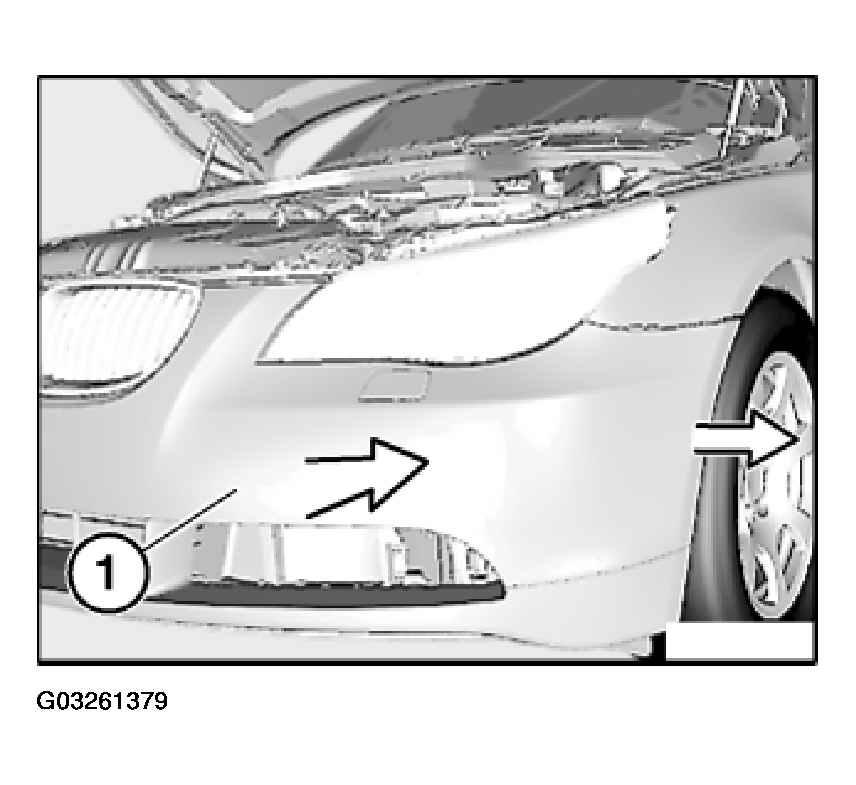

Fig 5: Removing Bumper Trim
