63 17 060 Removing and installing (replacing) left or right front fog lamp

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

E60/E61 only:

Release screws (1).

Detach cover (2) from front under ride protection (3) and feed out in direction of arrow.

Remove cover (2).

Fig 1: Detaching Cover From Front Under Ride Protection - E60/E61 Only

Courtesy of BMW OF NORTH AMERICA, INC.

E63/E64 only:

Release screws (1) and screw (2).

Detach cover (3) from front underride protection (4) and feed out in direction of arrow.

Remove cover (3).

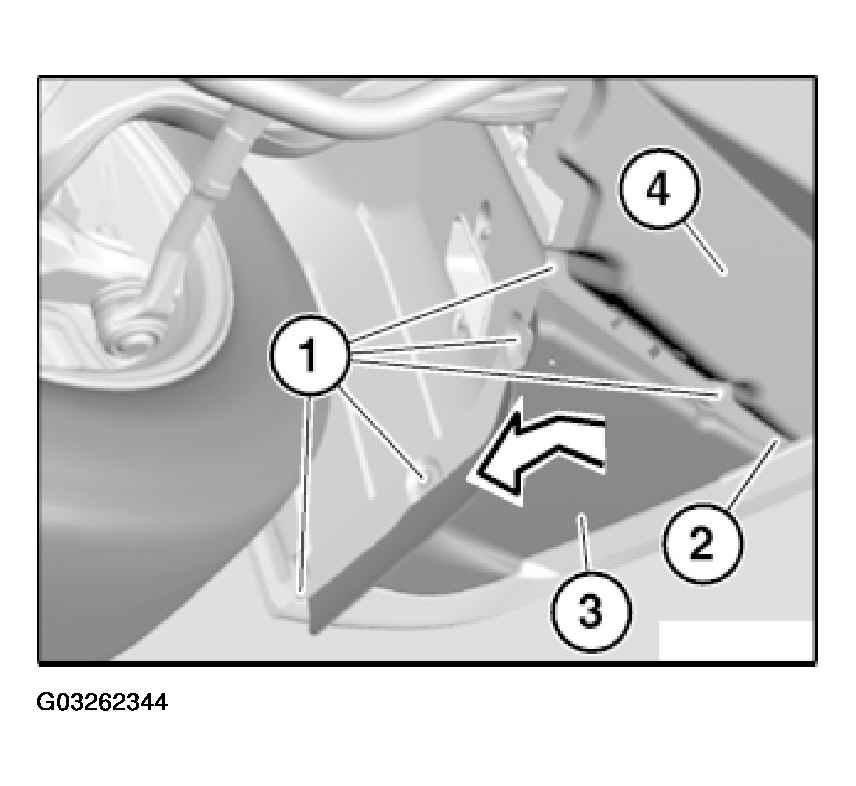

Fig 2: Detaching Cover From Front Underride Protection - E63/E64 Only

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Unfasten plug connection (1) and disconnect. Release screws (2).

Feed front fog lamp (3) in direction of arrow out of mounting (4) and remove.

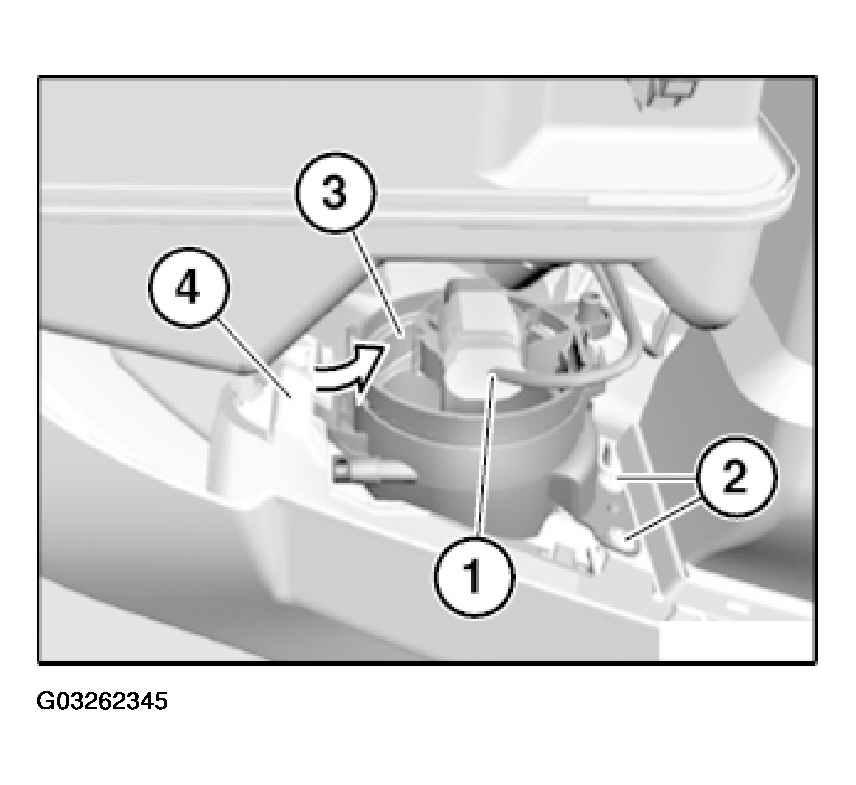

Fig 3: Feeding Front Fog Lamp In Direction Of Arrow Out Of Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulb.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Installation:

NOTE: type of bulb.

Replacement:

Adjust front fog lamps.
